The Curtiss-Wright CW-22 was a 1940s American general-purpose advanced training monoplane aircraft built by the Curtiss-Wright Corporation. It was operated by the United States Navy as a scout trainer with the designation SNC-1 Falcon.
Developed at the Curtiss-Wright St. Louis factory, the CW-22 was developed from the CW-19 via the single-seat CW-21 light fighter-interceptor. The prototype first flew in 1940. With less power and performance than the CW-21, the two-seat, low-wing, all-metal CW-A22 had retractable tailwheel landing gear, with the main gear retracting rearward into underwing fairings.

The CW-22 was seen as either a civilian sport or training monoplane or suitable as a combat trainer, reconnaissance and general-purpose aircraft for military use. The prototype CW-A22 Falcon (U.S. civilian registration NC18067) was used as a company demonstrator and is one of four of the type still in existence.

The main customer for the aircraft equipped with the Wright R-975 Whirlwind air-cooled radial engine was the Royal Netherlands East Indies Army Air Force and 36 were exported. The aircraft had to be delivered to the Dutch in Australia due to the advancing Japanese forces. A developed version, the CW-22B, was sold to Turkey, the Netherlands East Indies and in small numbers in Uruguay,Bolivia, & Peru. Some of the Dutch aircraft were captured and operated by the Imperial Japanese Army Air Force. The CW-22 and CW-22B were armed with two machine guns, one fixed.

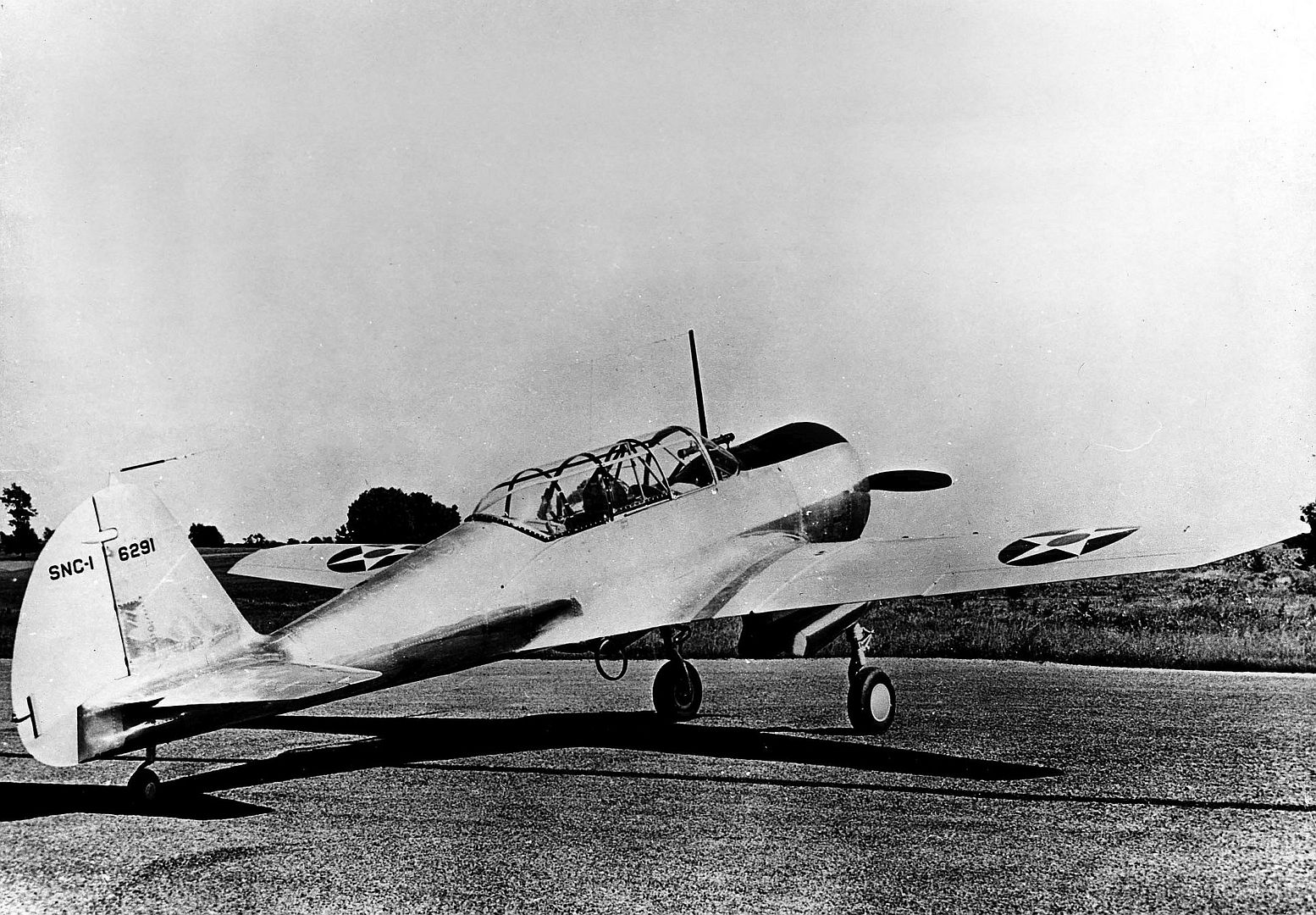

An unarmed advanced training version (CW-22N) was demonstrated to the United States Navy. To help to meet the expanding need for training, the Navy ordered 150 aircraft in November 1940. Further orders brought the total to 305 aircraft which were designated SNC-1 Falcon.
General characteristics

Crew: Two
Length: 27 ft 0 in (8.23 m)
Wingspan: 35 ft 0 in (10.67 m)
Height: 9 ft 11 in (3.02 m)
Wing area: 173.70 ft2 (16.14 m2)
Empty weight: 2,736 lb (1,241 kg)
Gross weight: 3,788 lb (1,718 kg)
Powerplant: 1 ? Wright R-975-28 Whirlwind radial piston engine, 420 hp (313 kW) each

Performance

Maximum speed: 198 mph (319 km/h)
Range: 780 miles (1,255 km)
Service ceiling: 21,800 ft (6,645 m)
Rate of climb: 1,650[5] ft/min (8.4 m/s)









Regards Duggy.

Thanks for posting this? like many pre-war US designs she looks quite stylish, especially in bare metal.

You are welcome Harry.
Enjoy this.
