  • The Fairey Firefly was a Second World War-era carrier-borne fighter aircraft and anti-submarine aircraft principally operated by the Fleet Air Arm (FAA). It was developed and built by the British aircraft manufacturer Fairey Aviation Company.

    Development of the Firefly can be traced back to pair of specifications issued by the British Air Ministry in 1938, calling for new naval fighter designs. Designed to the contemporary FAA concept of a two-seat fleet reconnaissance/fighter, the pilot and observer were positioned at separate stations. In flight, the Firefly was superior in terms of both performance and firepower to its predecessor, the Fairey Fulmar. Due to a protracted development, the type only entered operational service towards the end of the conflict, at which point it was no longer competitive as a fighter. The limitations of a single engine in a relatively heavy airframe reduced its performance, but the Firefly proved to be a fairly sturdy, long-ranged, and docile aircraft during carrier operations.

    The Fairey Firefly served in the Second World War as a fleet fighter. During the post-war era, it was soon superseded in the fighter role by the arrival of more modern jet aircraft, thus the Firefly was adapted to perform in other roles, including strike operations and anti-submarine warfare. In these capacities, it remained a mainstay of the FAA until the mid-1950s. Both British and Australian Fireflies routinely performed ground–attack operations from various aircraft carriers during the Korean War. In foreign service, the type was in operation with the naval air arms of Australia, Canada, India and the Netherlands. As late as 1962, Dutch Fireflies were used to carry out attack sorties against Indonesian infiltrators in Dutch New Guinea. Its final uses were in various secondary roles, such as trainers, target tugs and drone aircraft.
    Design and development
    During 1938, by which point British authorities were preparing for the likelihood of a major conflict, the Air Ministry issued a pair of specifications calling for naval fighters, a conventional and a "turret fighter". The performance requirements for both was to be able to attain a speed of 275 knots while flying at 15,000 ft (4,600 m) and carrying an armament, for the conventional fighter, of eight 0.303 in (7.7 mm) Browning machine guns or four 20 mm (0.79 in) Hispano cannon. This aircraft would replace the Fairey Fulmar, which had been viewed as an interim design. These specifications were updated during the following year, while several British manufacturers tendered their ideas. Further changes to the official specification followed, such as the turret fighter specification being eliminated entirely, while a modified specification was issued to cover single and dual-seat fighters capable of 330 and 300 kn (610 and 560 km/h; 380 and 350 mph) respectively. Fairey offered designs that could accommodate either a single or twin-seat arrangements, either powered by the Rolls-Royce Griffon engine, or combining a larger airframe with a Napier Sabre engine. After consideration of the manufacturer's responses, Specification N.5/40 replaced the earlier specifications. Due to the necessity of navigating over open sea, it was decided to opt for a two-seater aircraft alone. For defence of naval bases, a separate single seater design would lead to the Blackburn Firebrand.

    The Firefly was designed by a team led by H.E. Chaplin at Fairey Aviation which reportedly used the Fulmar as a starting point.During June 1940, the Admiralty placed an initial order for 200 aircraft "off the drawing board", the first three of which were to function as prototypes. On 22 December 1941, the first prototype of the Firefly performed its maiden flight.Although the aircraft was 4,000 lb (1,800 kg) heavier than the preceding Fulmar (largely due to the adoption of the heavier Griffon engine and the armament of two 20 mm (0.79 in) Hispano cannon in each wing), the Firefly was 40 mph (64 km/h) faster due to improved aerodynamics, as well as the increased power of the Griffon IIB engine, being capable of generating a maximum of 1,735 hp (1,294 kW).

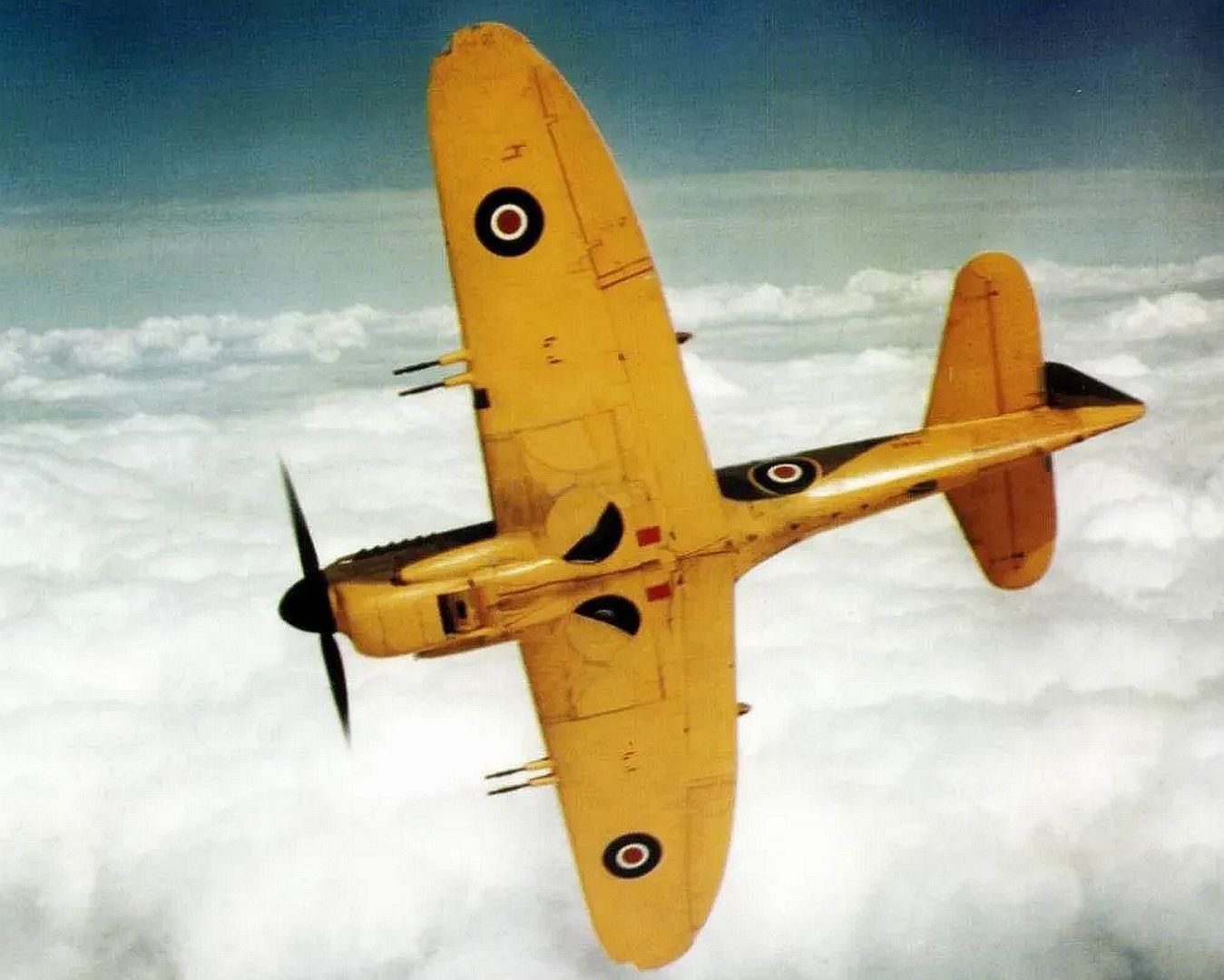

    FireflyFRMkIZ1832
    The Firefly was a low-wing cantilever monoplane, featuring an oval-section metal semi-monocoque fuselage and a conventional tail unit with forward-placed tailplane. It was powered by a Rolls-Royce Griffon liquid-cooled piston engine, which drove a four-blade Rotol-built propeller.A large chin-mounted radiator was present to provide cooling for the engine. The Firefly had retractable main undercarriage and tail wheel, the hydraulically-actuated main landing gear retracting inwards into the underside of the wing centre-section. This undercarriage was widely-set, a highly useful feature for carrier landings.The aircraft was also fitted with a retractable arrester hook mounted underneath the rear fuselage. The pilot's cockpit was located above the leading edge of the wing while the observer/radio-operator/navigator was positioned aft of the wing's trailing edge. These positions provided better visibility for operating and landing, and both crew were provided with separate jettisonable canopies.

    The Firefly was equipped with an all-metal wing which could be folded manually, the wings ending up along the sides of the fuselage when folded. When in the flying position, the wings were hydraulically locked in place. The wing itself featured square tips and large Fairey-Youngman flaps, which provided relatively good handling while flown at low speeds.A total of four 20mm cannon were buried within the wings, which was considered to be relatively heavy armament for the era.According to pilots, the general handling of the Firefly was relatively well-balanced, but a level of physical strength was required to effectively execute aerobatics.

    During 1942, handling and performance trials were first undertaken at RAF Boscombe Down. By 1944, the Firefly had been cleared to use underwing rocket projectiles and, by April 1944, tests involving a double-underwing load of 16 rockets and a pair of 45 US gal (170 l; 37 imp gal) drop tanks still provided acceptable handling.Further testing with two 90 gallon (410 l) drop tanks or two 1,000 lb (450 kg) bombs deemed acceptable albeit with "...a small adverse effect on handling..." while "...handling with a single 1,000 lb (450 kg) bomb was unpleasant, but manageable." Performance trials at 11,830 lb (5,370 kg) indicated a maximum speed of 315 mph (507 km/h) at 16,800 ft (5,100 m) while a climb to 20,000 ft (6,100 m) took 12.4 minutes, with a maximum climb rate of 2,140 ft/min (650 m/min) at 3,800 ft (1,200 m), and a service ceiling of 30,100 ft (9,200 m).
    Operational history
    The primary variant of the aircraft used during the Second World War was the Firefly Mk I, which was used in all theatres of operations. During March 1943, the first Firefly Mk Is were delivered to the FAA but these did not enter operational service until July 1944, at which point they equipped 1770 Naval Air Squadron aboard HMS Indefatigable.The first operations were flown in the European theatre where Fireflies carried out numerous armed reconnaissance flights and anti-shipping strikes along the Norwegian coast. That year, Fireflies also provided air cover and aerial reconnaissance during attacks on the German battleship Tirpitz.

    Throughout its operational career, the Firefly took on increasingly demanding roles from fighter to anti-submarine warfare while being stationed mainly with the British Pacific Fleet in the Far East and Pacific theatres. The type was used against Japanese ground targets and fighter aircraft.FAA Fireflies carried out attacks on oil refineries and airfields and was repeatedly dispatched against Japanese-controlled islands up until Victory over Japan Day.The Firefly gained a level of public renown when the type became the first British-designed and -built aircraft to overfly the Japanese capital of Tokyo.

    During May 1945, in anticipation of a major naval offensive against the Japanese mainland, the Canadian government accepted a British offer to loan a pair of Colossus-class aircraft carriers to the Royal Canadian Navy.To equip these carriers, it was necessary to procure naval fighters. Based upon the feedback of veteran pilots, Canada opted to acquire the Firefly over opposition that favoured procuring American aircraft instead. As a stop-gap measure, Royal Navy Fireflies were loaned while more advanced purpose-built aircraft were being constructed. Between 1946 and 1954, the Canadian Navy employed 65 AS Mk.5 Fireflies on its aircraft carriers. The service also flew a handful of Mk.I Fireflies. During the 1950s, Canada decided to sell off its Fireflies and buyers included the armed forces of Ethiopia, Denmark, and the Netherlands.

    After the Second World War, the Firefly remained in front line service with the Fleet Air Arm, continuing in this capacity until the mid-1950s. During this time, British-built Fireflies were also supplied to a number of overseas nations, including Canada, Australia, Denmark, Ethiopia, the Netherlands, India and Thailand.

    During 1947, the Australian government approved of formation of the Royal Australian Fleet Air Arm and the acquisition of a pair of Majestic class aircraft carriers from Britain. Following a consultation with the Royal Navy, the Royal Australian Navy (RAN) opted to procure both the Firefly and the Hawker Sea Fury to equip its new aircraft carriers.These two types formed the backbone of the newly formed Australian Carrier Air Groups (CAGs), which would operate a total fleet size of 108 Fireflies, acquired across multiple orders. The first aircraft was delivered ingMay 1949, and the final Firefly arrived during August 1953. aircrew training predominated in early RAN operations ahead of achieving operational status during 1950.

    During the Korean War of the 1950s, both British and Australian Fireflies carried out anti-shipping patrols and ground strikes from various aircraft carriers positioned offshore.Additional missions roles including anti-submarine patrols and aerial observation, as well as assisting battleships in providing effective naval gunfire support. Numerous FAA Fireflies were loaned to the Australian Navy during the conflict as many of its aircraft did not feature cannons when configured for anti-submarine warfare. Despite several incidents of aircraft being struck by anti-aircraft fire, the Firefly proved to be relatively rugged. The type was routinely used for strike operations against targets such as bridges and railway lines to damage North Korean logistics and communications. As the war went on, pilots developed new low-level dive-bombing techniques to achieve greater accuracy. Combat use of the Firefly in the theatre continued until the signing of the Korean Armistice Agreement on 27 July 1953, although post-armistice patrols involving the type continued for several years afterwards.

    FAA Fireflies were again deployed in the Far East amid the Malayan Emergency, where it was used conduct to ground-attack operations against Malayan Communist Party insurgents. The Firefly's front line career with the FAA came to an end shortly following the introduction of the newer and larger Fairey Gannet, which effectively replaced the type.The RAN also decided to relegate their Fireflies to secondary duties following the adoption of newer aircraft, such as the Gannet and the jet-powered de Havilland Sea Venom. Several versions of the type were developed later in its career to serve in a number of secondary roles, including as trainers, target tugs and drone aircraft. As an example, the Indian Navy acquired a batch of 10 aircraft during the mid-50s for target tug purposes. By the end of the 1950s, many operators were disposing of their remaining Fireflies, typically as scrap.

    In the late 1940s, the Royal Netherlands Navy deployed a Firefly squadron to the Dutch East Indies, as part of the forces countering Indonesian nationalists. When talks broke down in July 1947, the Dutch launched multiple air strikes. Three Fireflies were shot down by ground fire. During 1960, in response to territorial demands and threats issued by Indonesia, the Netherlands chose to deploy a number of Firefly AS.Mk 4s to Dutch New Guinea. As Indonesian forces began to retake the territory, the Fireflies carried out attack operations during early 1962. These strikes continued until the Royal Netherlands Navy withdrew following a political settlement was negotiated between the two countries.
    Variants
    Firefly I / FR.I
    Two variants of the Mk I Firefly were built; 429 "fighter" "Firefly F Mk I"s, built by Fairey and General Aircraft Ltd, and 376 "fighter/reconnaissance" Firefly "FR Mk I"s (which were fitted with the ASH detection radar). The last 334 Mk Is built were upgraded with the 1,765 hp (1,316 kW) Griffon XII engine.
    1
    2
     1944
    HMS Indefatigable

    1
     Royal Canadian Navy

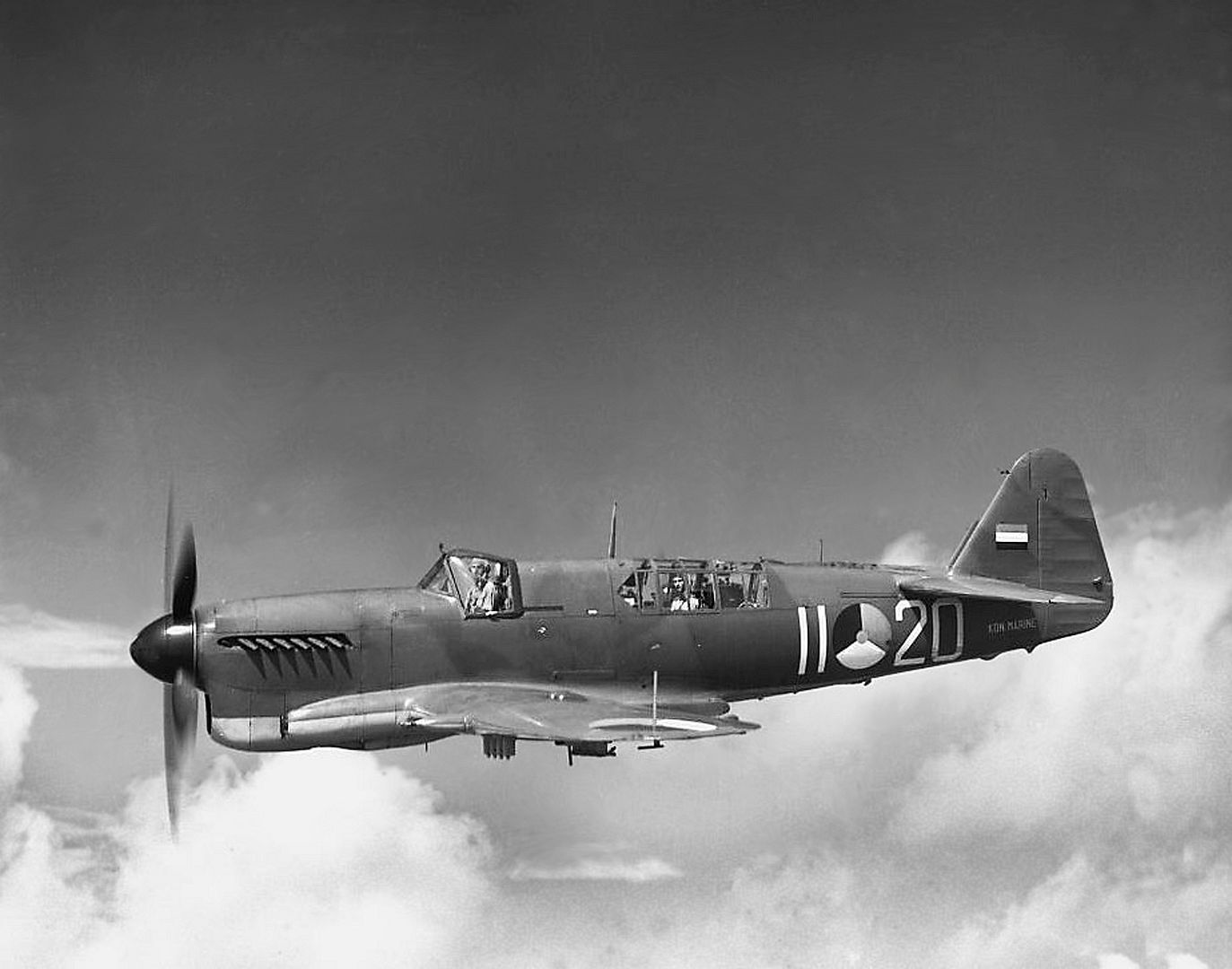

    1 MLD Indonesia 1948
    1
    5
    6
    Firefly NF.Mk II
    Only 37 Mk II Fireflies were built, all of which were night fighter Firefly NF Mk IIs. They had a slightly longer fuselage than the Mk I and had modifications to house their airborne interception (AI) radar.
    Firefly NF.Mk I
    The NF.II was superseded by the Firefly NF Mk I "night fighter" variant.
    Firefly T.Mk 1
    Twin-cockpit pilot training aircraft. Post-war conversion of the Firefly Mk I.

    Firefly T.Mk 2
    Twin-cockpit armed operational training aircraft. Post-war conversion of the Firefly Mk I.
    Firefly T.Mk 3
    Used for Anti-submarine warfare training of observers. Postwar conversion of the Firefly Mk I.
    3 Observer Trainer Of 1841 Squadron UK Royal Navy At RAF Hooton Park
    Firefly TT.Mk I
    Postwar, a small number of Firefly Mk Is were converted into target tug aircraft.

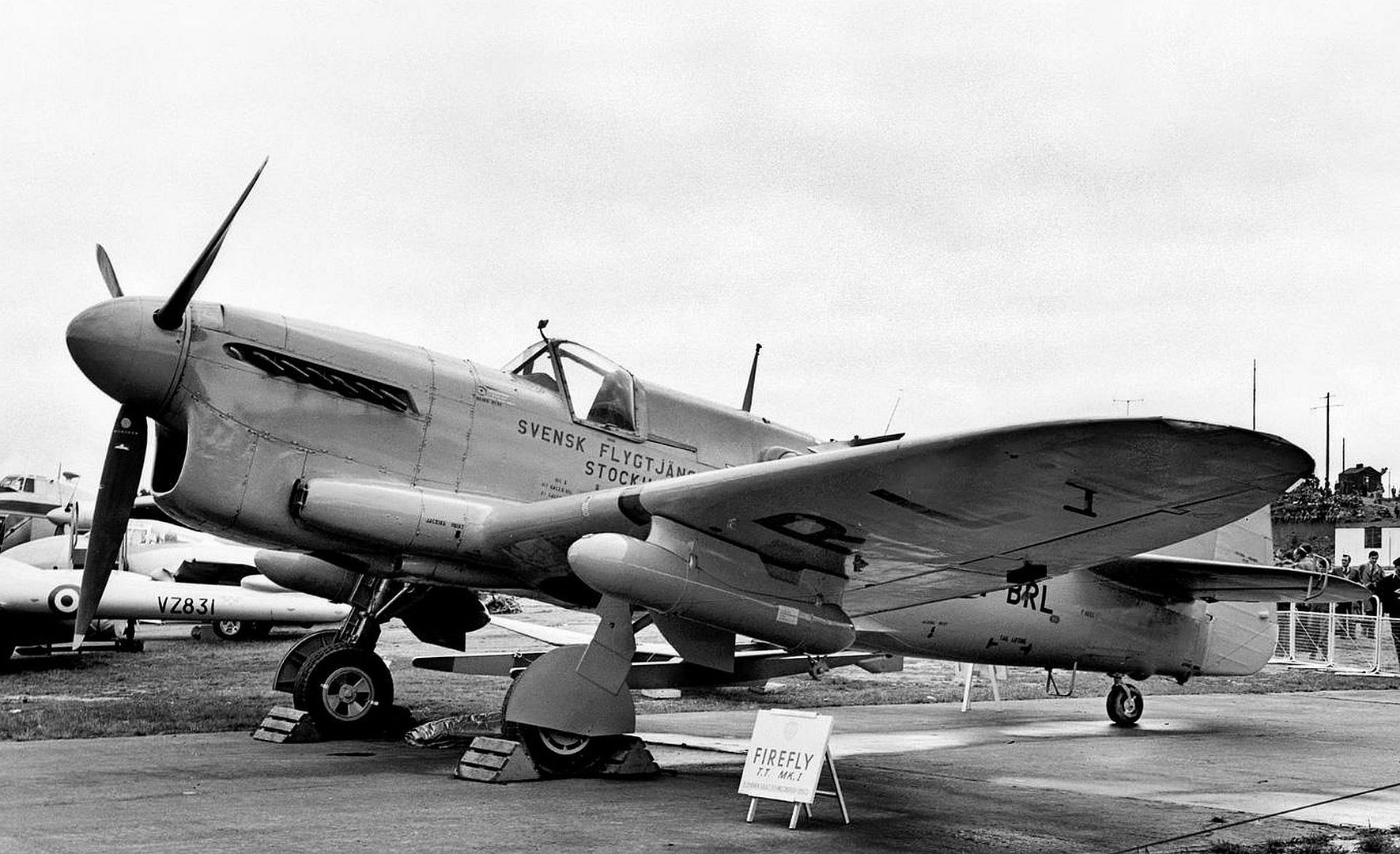

    Fairey Firefly TT1

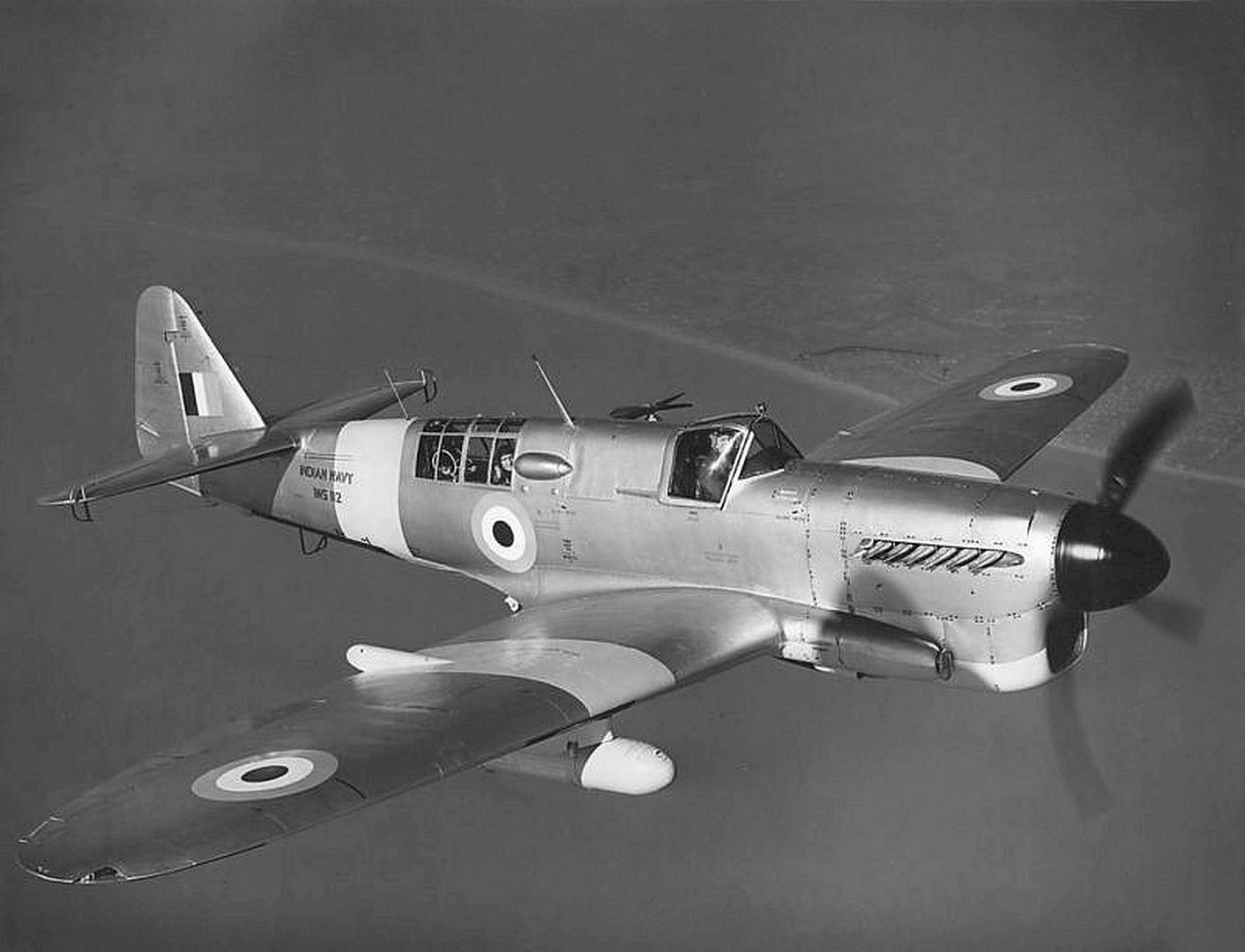

    Firefly TT MkI
    Firefly Mk III
    Proposal based on the Griffon 61 engine, but never entered production.
    Firefly Mk IV
    The Firefly Mk IV was equipped with the 2,330 hp (1,740 kW) Griffon 72 engine and first flew in 1944, but did not enter service until after the end of the war.

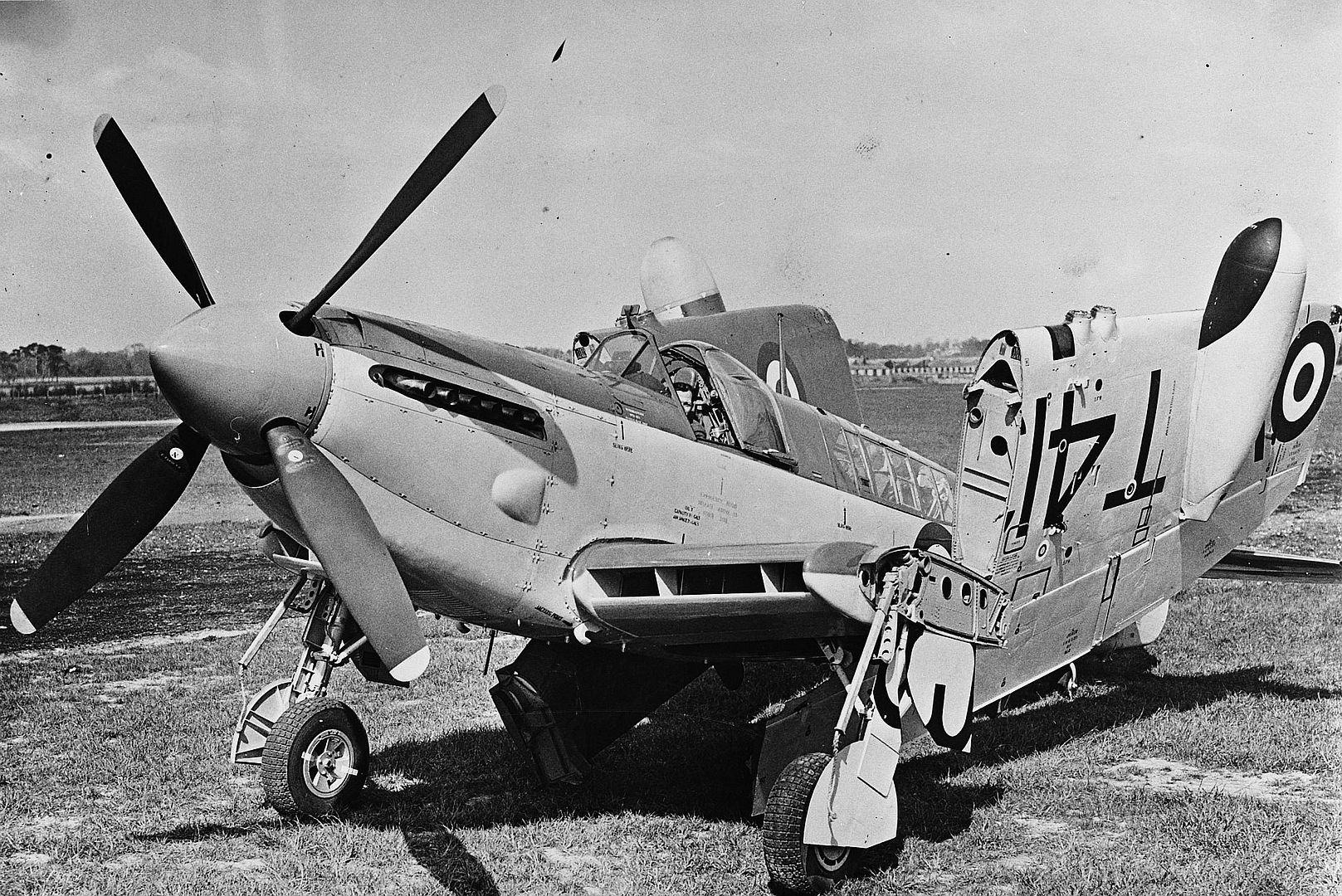

    Firefly IV 97003

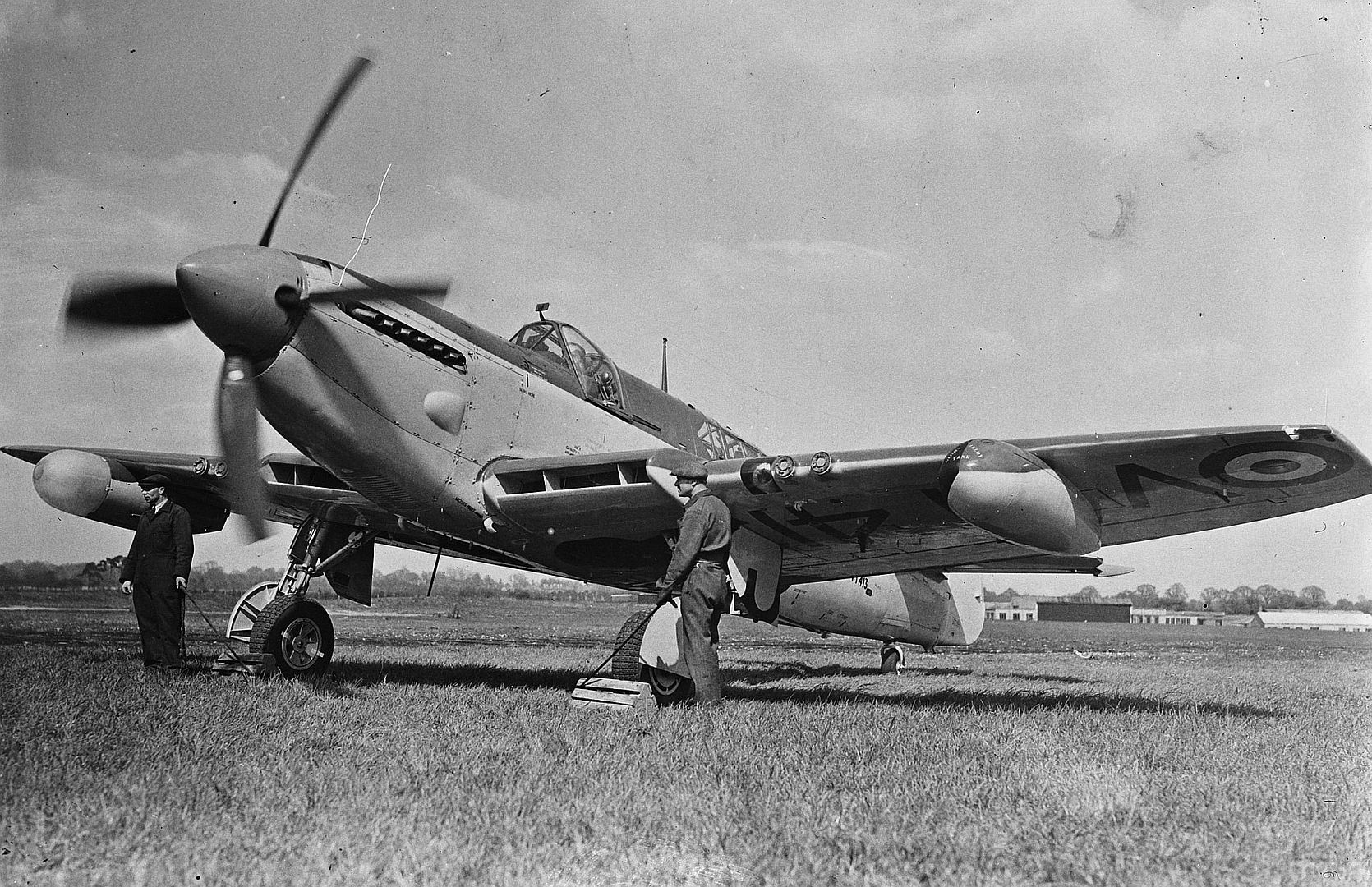

    Firefly IV 97006 Datum 28 April 1948

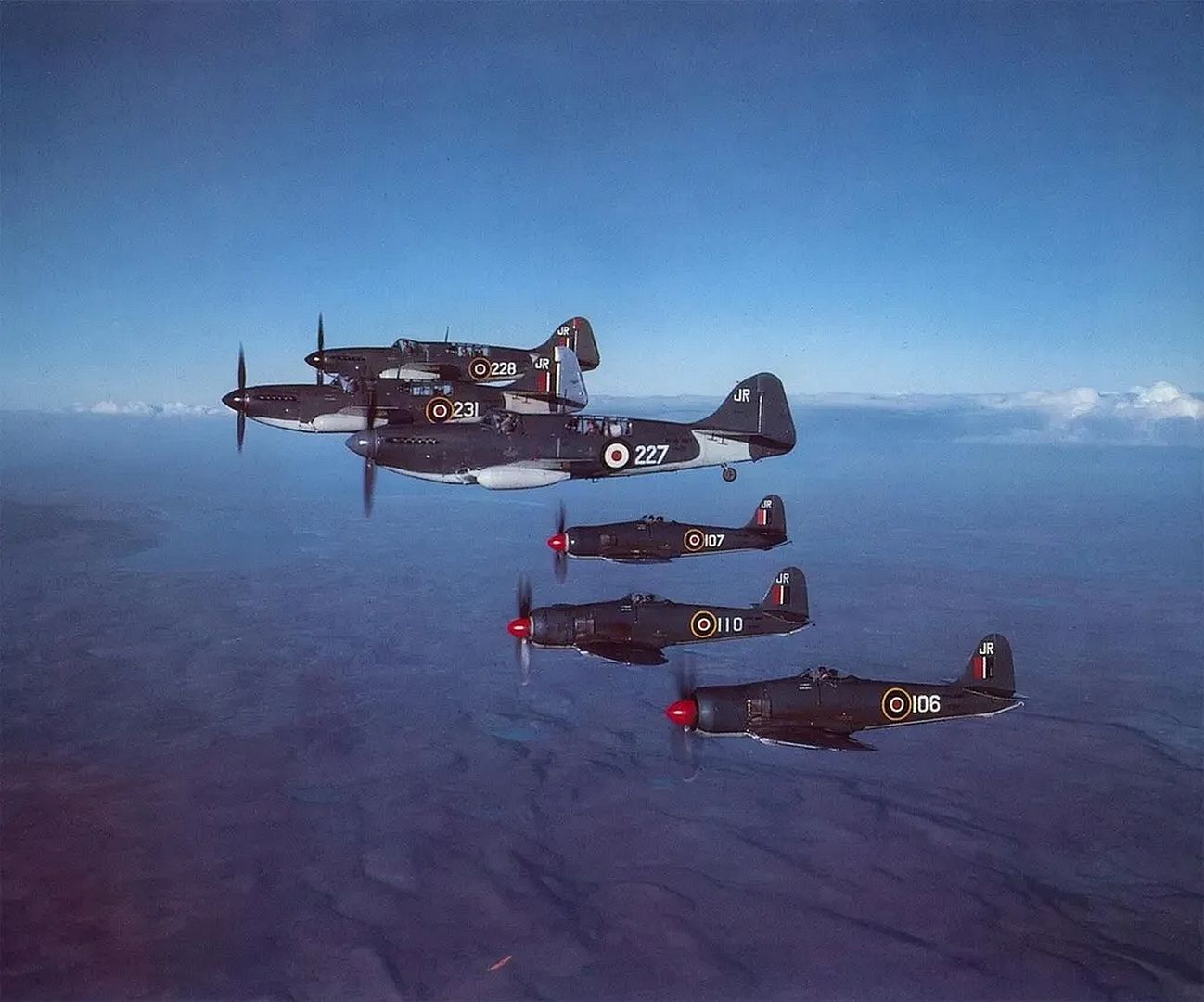

    805nas
    IV
    Firefly FR.Mk 4
    Fighter-reconnaissance version based on the Firefly Mk IV.
    2
    3
    4

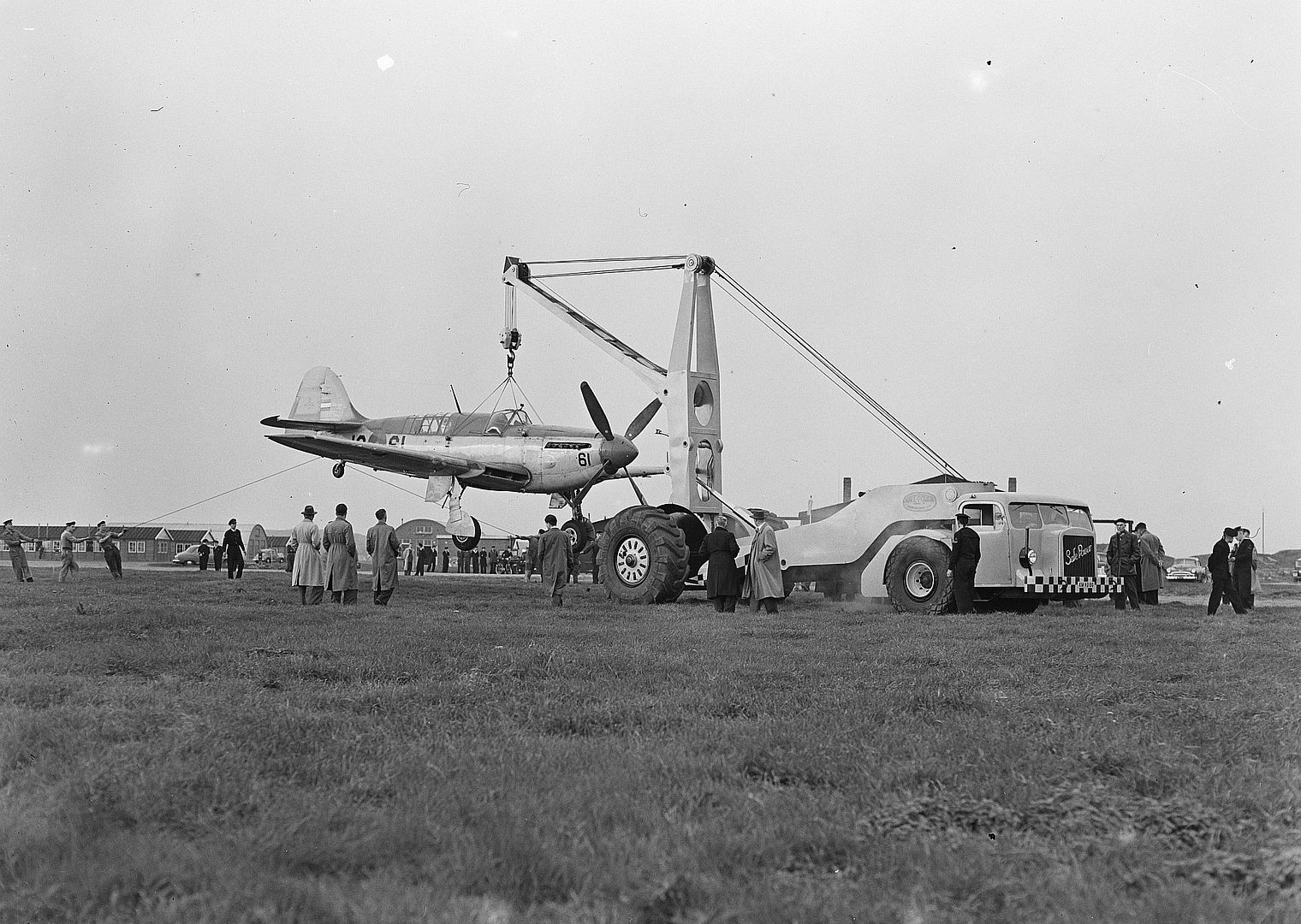

    15 Oktober 1953 Valkenburg
    1

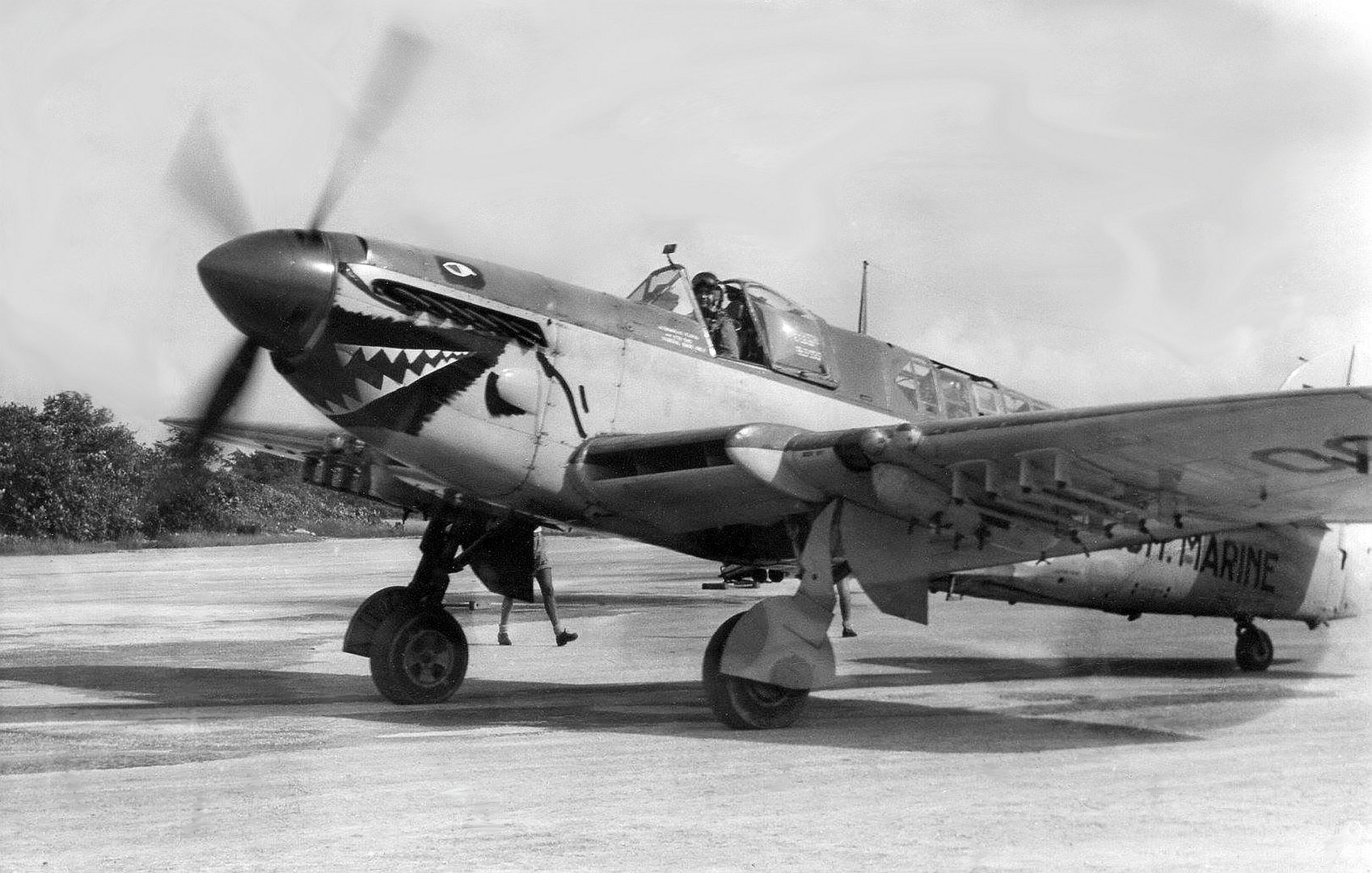

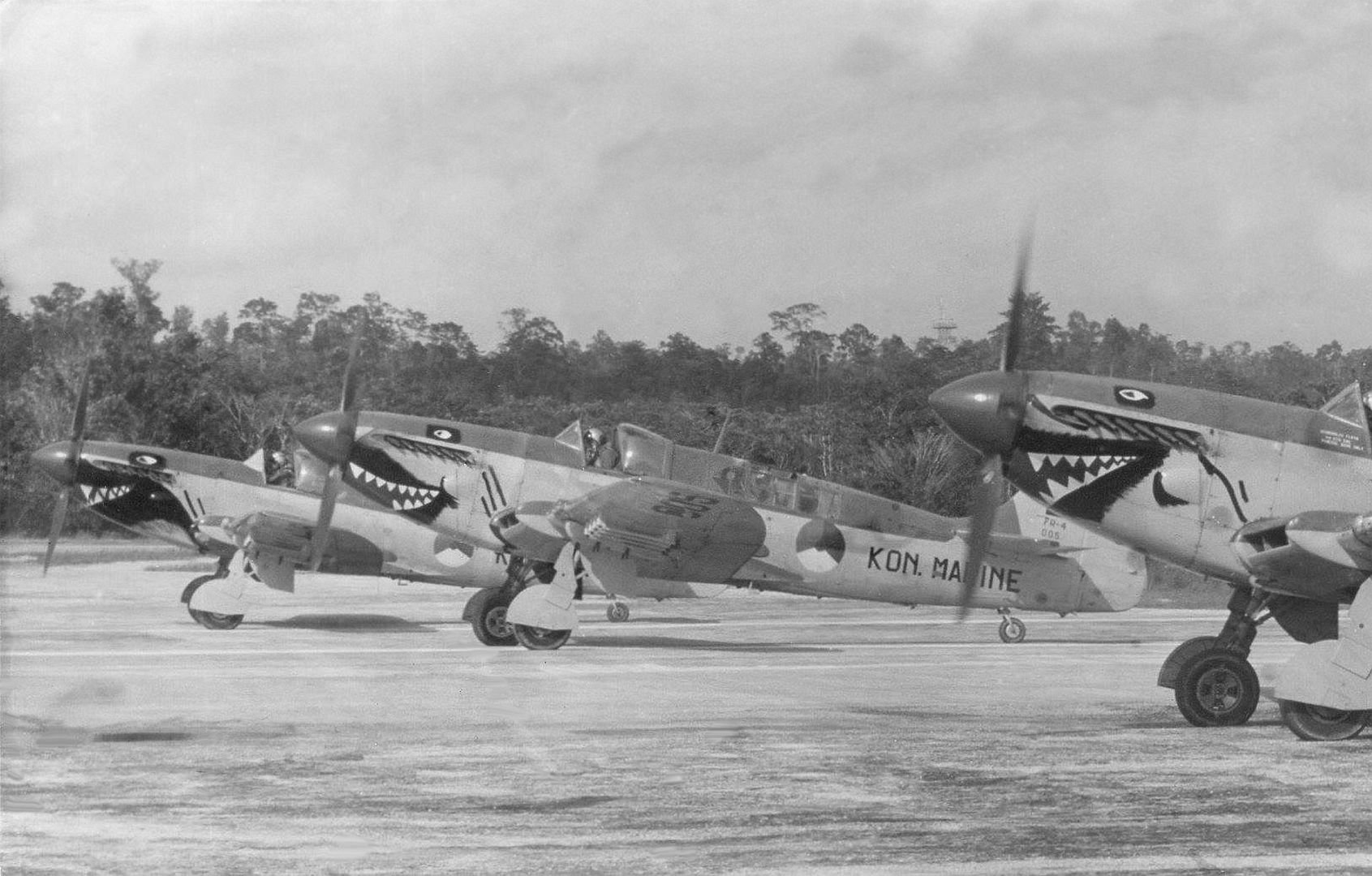

    Fireflys Before Take OffPapua Indonesia

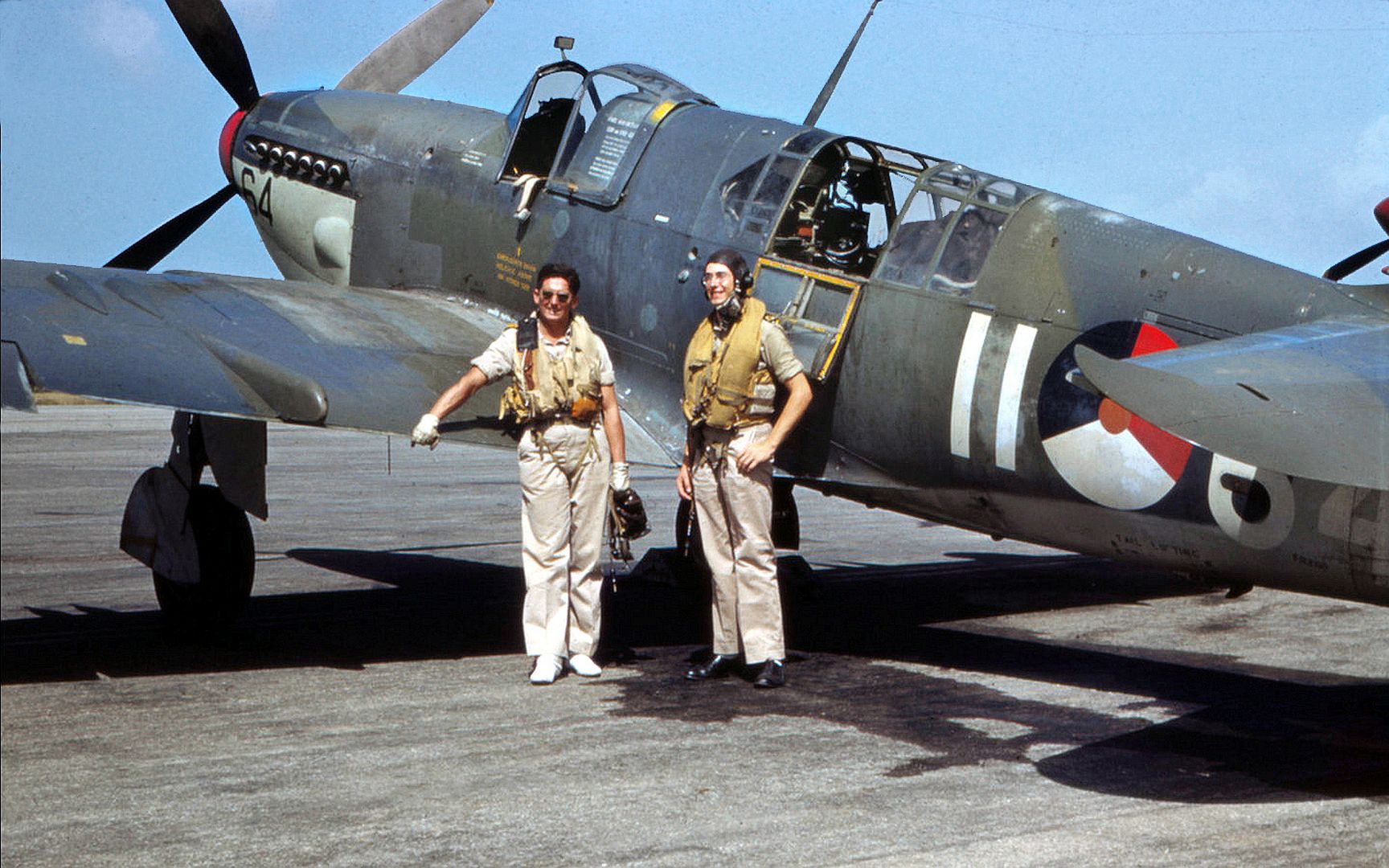

     IV Based In Curacao 1948
    Firefly Mk 5
     Prototype
    1
    2
    Firefly NF.Mk 5
    Night fighter version based on the Firefly Mk 5.
    Firefly FR.Mk 5
    Fighter-reconnaissance version based on the Firefly Mk 5.

    Firefly AS.Mk 5
    The later Firefly AS.Mk 5 was an anti-submarine aircraft, which carried American sonobuoys and equipment.

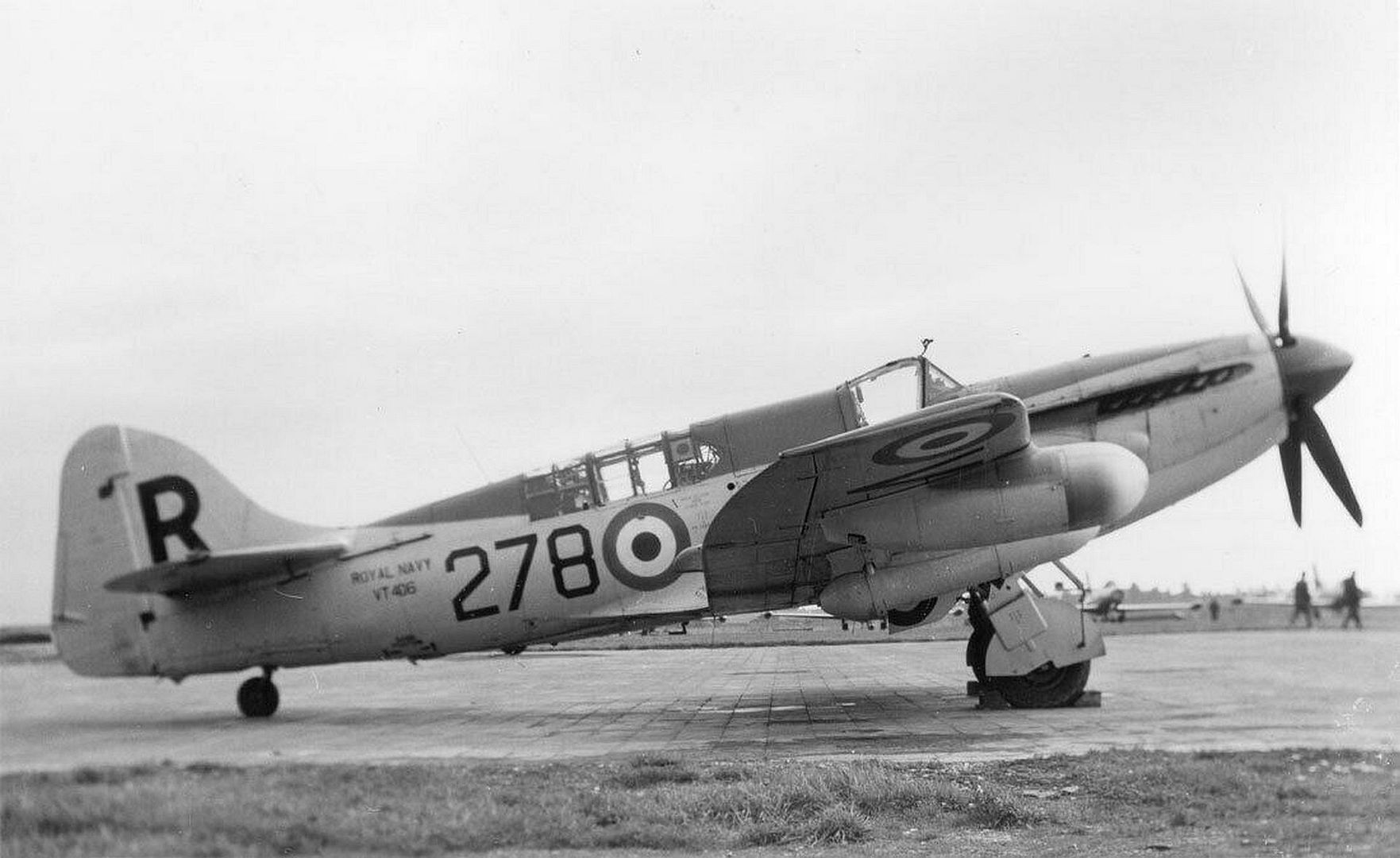

    Sqn
    3
    6 VX380

    Firefly Mk 6

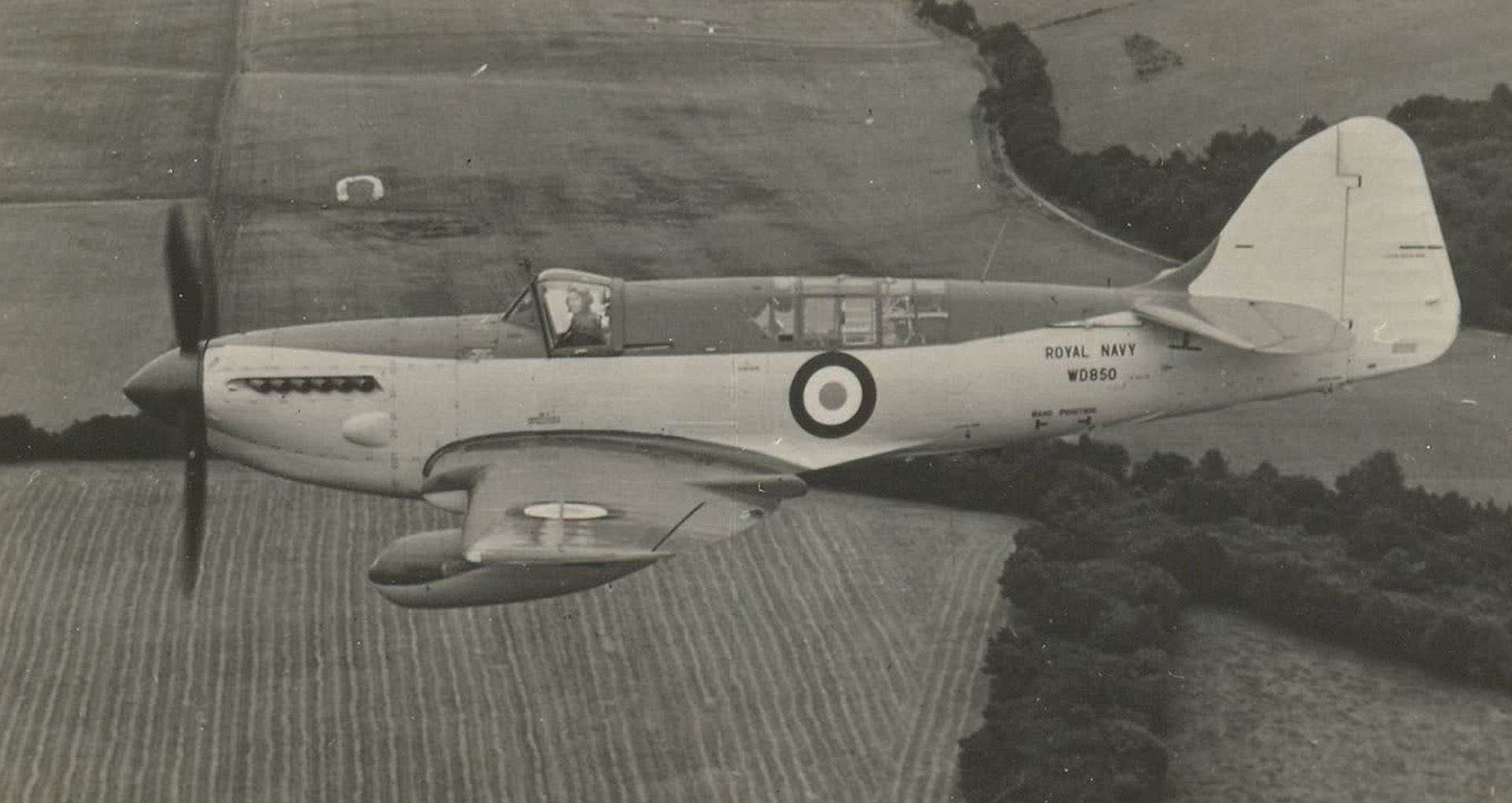

    Fairey Firefly VI W0850
    Firefly AS.Mk 6
    The Fairefly AS.Mk 6 was an anti-submarine aircraft, which carried British equipment.
    6 WD837
    Firefly TT.Mk 4/5/6
    Small numbers of AS.4/5/6s were converted into target tug aircraft.
    1

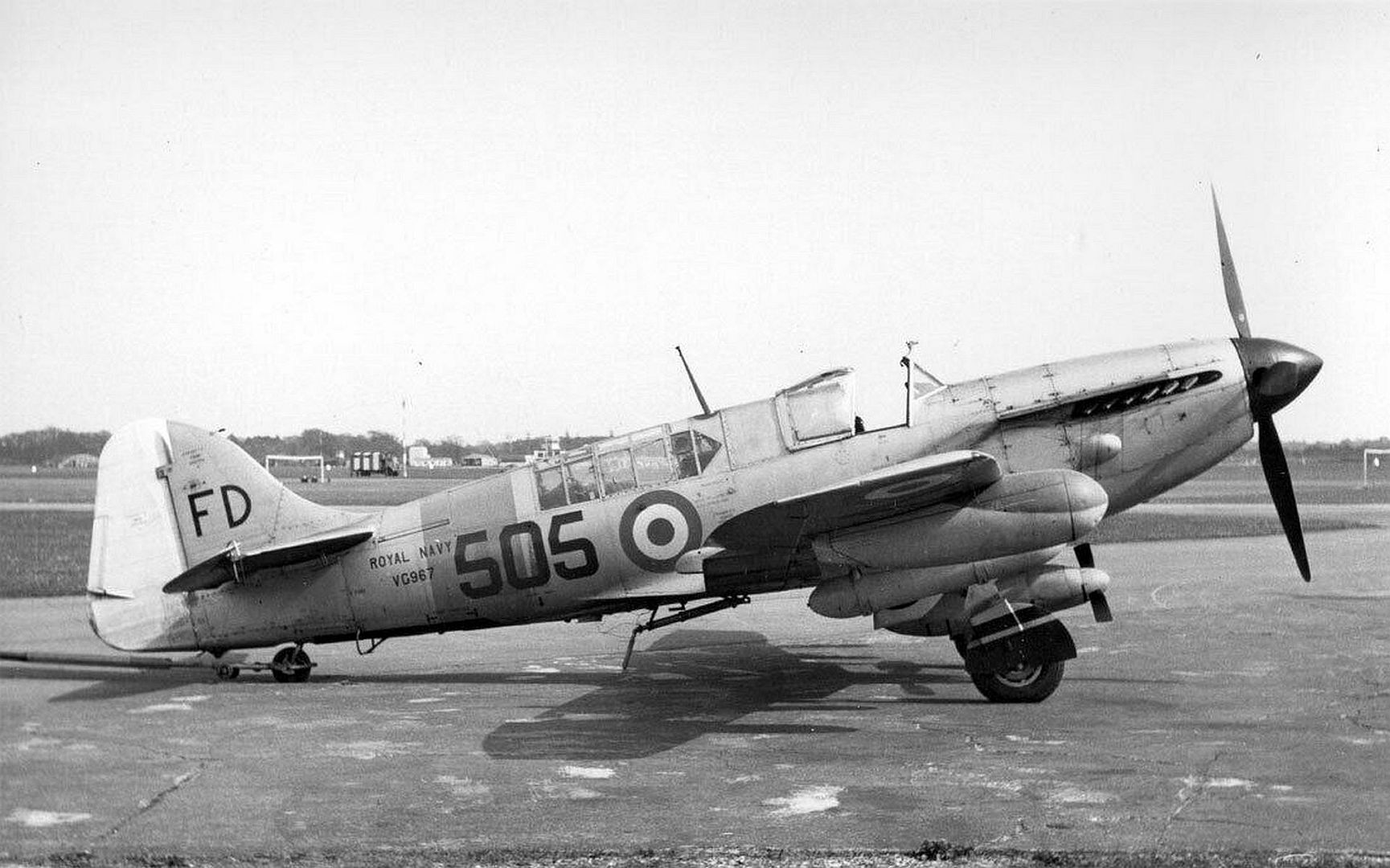

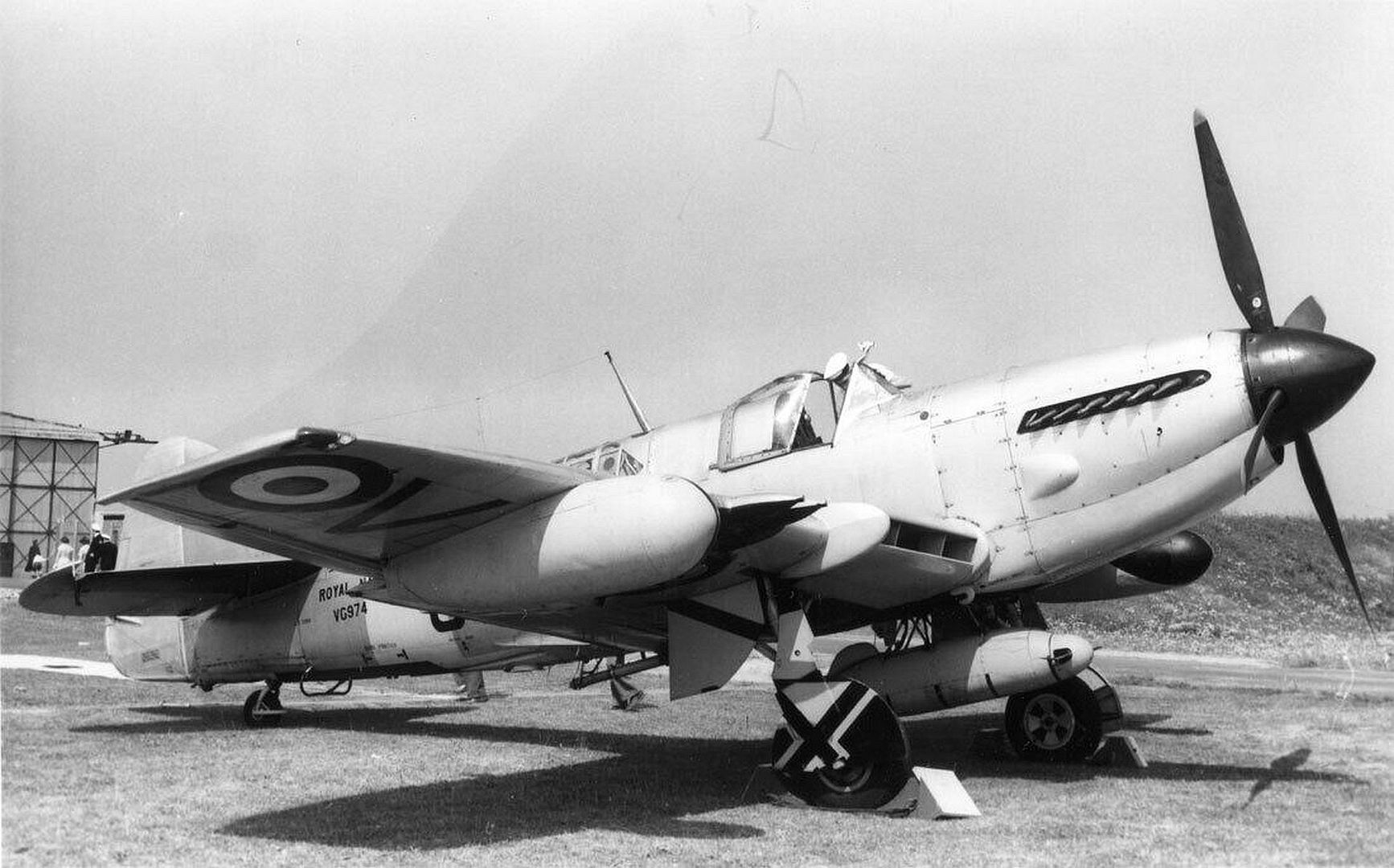

    700Sq

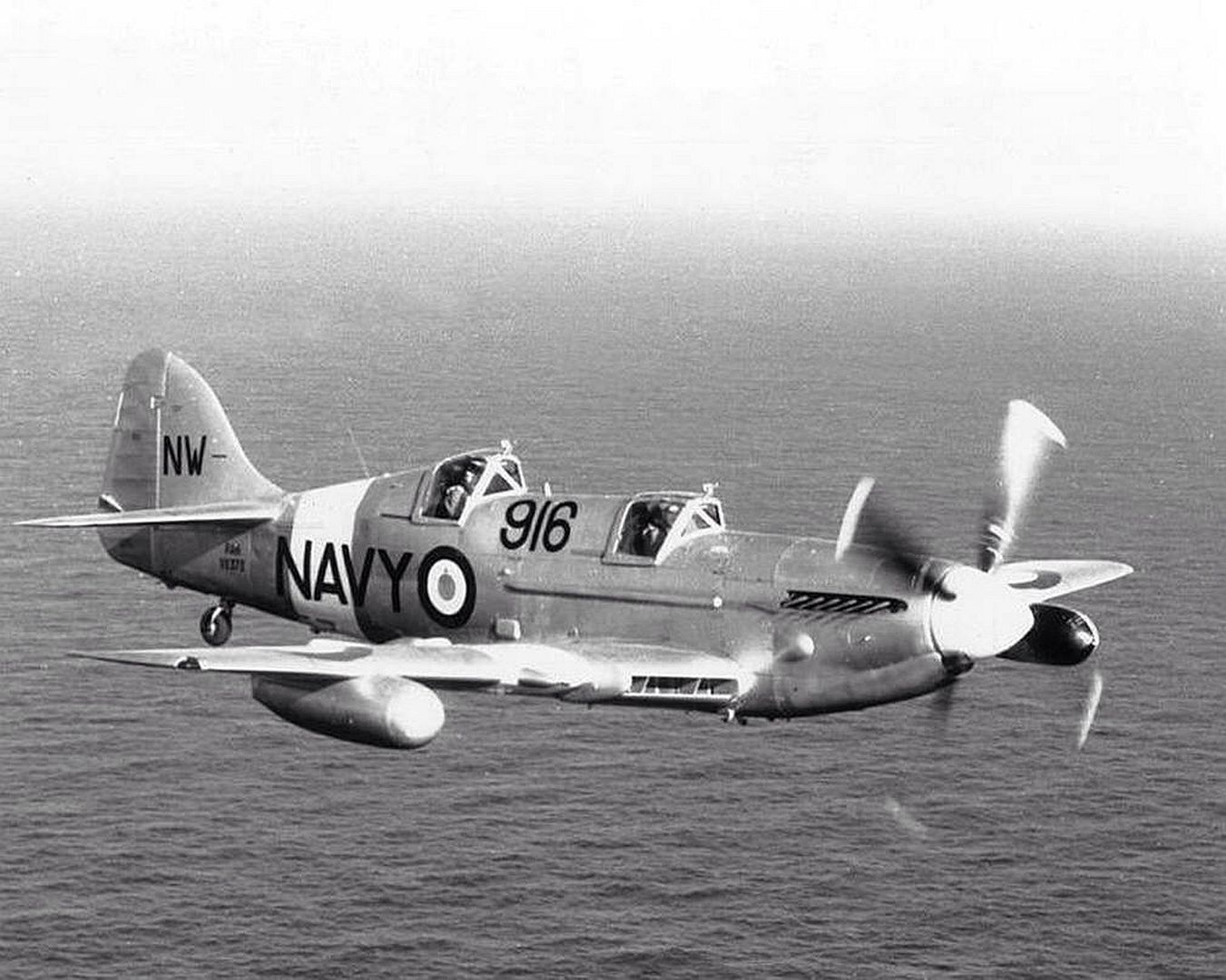

    5 Prototype VX373
    Firefly AS.Mk 7
    The Firefly AS.Mk 7 was an anti-submarine aircraft, powered by a Rolls-Royce Griffon 59 piston engine.
    Firefly T.Mk 7
    The Firefly T.Mk 7 was an interim ASW training aircraft.
    7 Of The Fleet Air Arm At Manchester

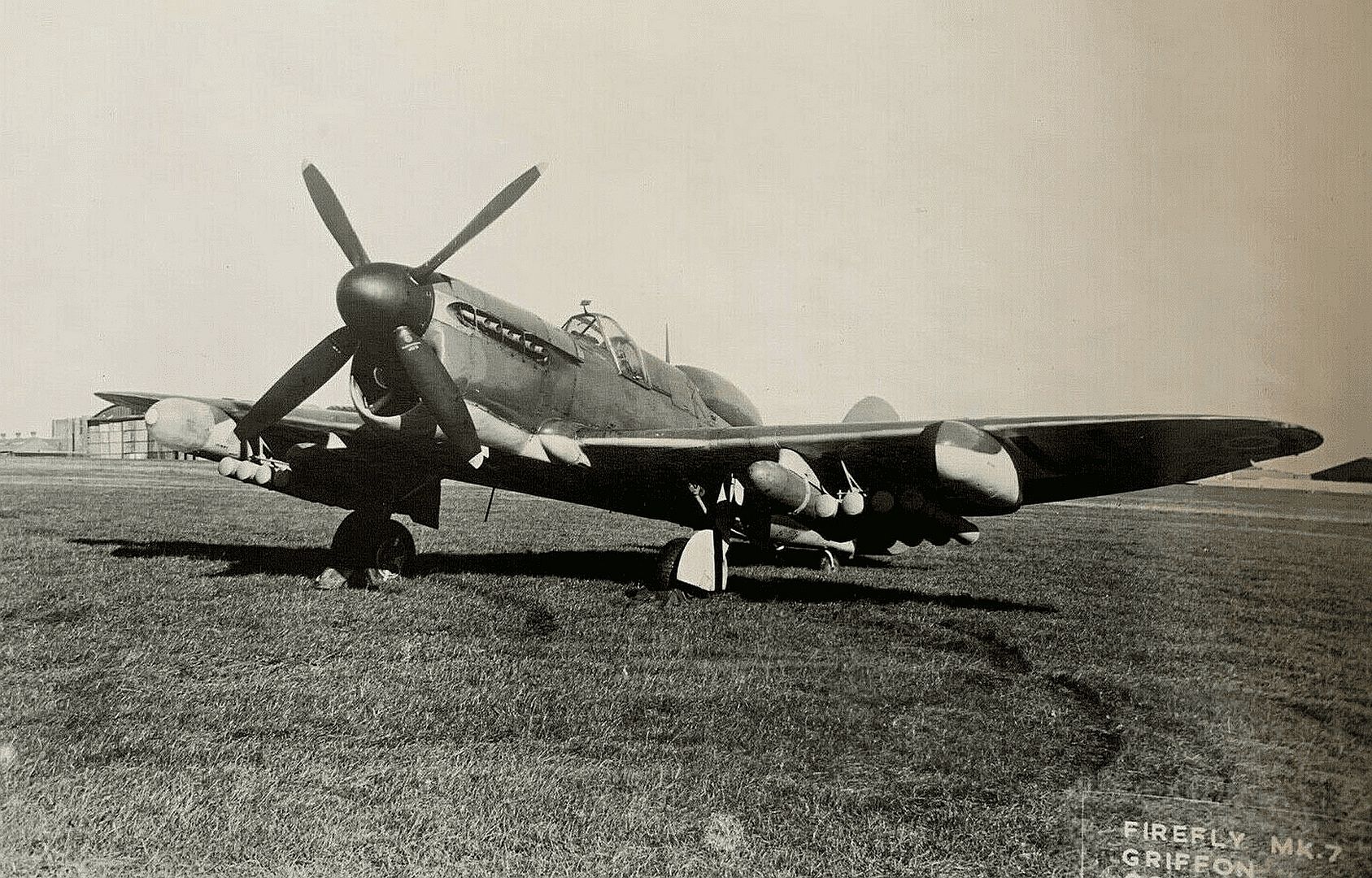

    Firefly MkVII
    Firefly U.Mk 8
    The Firefly U.Mk 8 was a target drone aircraft; 34 Firefly T.7s were diverted on the production line for completion as target drones.

    8 Target Drone At Manchester
    Firefly U.Mk 9
    The Firefly U.Mk 9 was a target drone aircraft; 40 existing Firefly Mk AS.4 and AS.5 aircraft were converted to this role.
    Specifications (Mk.4 / Mk.5 / Mk.6)
    General characteristics
    Crew: 2
    Length: 37 ft 11 in (11.56 m)
    Wingspan: 41 ft 2 in (12.55 m)
    Width: 13 ft 6 in (4.11 m) wings folded
    Height: 14 ft 4 in (4.37 m) including prop disc
    Wing area: 330 sq ft (31 m2)
    Empty weight: 9,674 lb (4,388 kg)
    Gross weight: 12,727 lb (5,773 kg) stripped for fighter mission

    13,479 lb (6,114 kg) normal

    Max takeoff weight: 15,615 lb (7,083 kg) with two drop-tanks
    Powerplant: 1 × Rolls-Royce Griffon 74 V-12 liquid-cooled piston engine, 2,300 hp (1,700 kW) for take-off
    Propellers: 4-bladed Rotol constant-speed propeller
    Performance
    Maximum speed: 367–386 mph (591–621 km/h, 319–335 kn) at 14,000 ft (4,267 m)

    330 mph (287 kn; 531 km/h) at sea level

    Cruise speed: 209 mph (336 km/h, 182 kn)
    Range: 760 mi (1,220 km, 660 nmi) on internal fuel at 209 mph (182 kn; 336 km/h)
    Ferry range: 1,335 mi (2,148 km, 1,160 nmi) with 2 90 imp gal (110 US gal; 410 l) drop-tanks at 209 mph (182 kn; 336 km/h)
    Service ceiling: 31,900 ft (9,700 m)
    Time to altitude:

    5,000 ft (1,524 m) in 3 minutes 36 seconds
    10,000 ft (3,048 m) in 7 minutes 9 seconds
    20,000 ft (6,096 m) in 10 minutes 30 seconds

    Wing loading: 43 lb/sq ft (210 kg/m2)
    Power/mass: 0.164 hp/lb (0.270 kW/kg)
    Armament
    Guns: 4 × 20 mm (0.787 in) Hispano Mk.V cannon
    Rockets: maximum 16x RP-3 60 lb (27.2 kg) rockets on 8 × zero-length launchers
    Bombs: maximum 2x 1,000 lb (454 kg) on underwing pylons
