  • The Messerschmitt Me 163 Komet is a German interceptor aircraft designed for point-defence. It is the only operational rocket-powered fighter aircraft in history and the first piloted aircraft of any type to exceed 1,000 kilometres per hour (620 mph) in level flight. Designed by Alexander Lippisch, its performance and aspects of its design were unprecedented. In early July 1944, German test pilot Heini Dittmar reached 1,130 km/h (700 mph), an unofficial flight airspeed record unmatched by turbojet-powered aircraft for almost a decade.

    More than 300 Komets were built, but the aircraft proved lackluster in its dedicated role as an interceptor, having destroyed between nine and 18 Allied aircraft against 10 losses. Aside from combat losses, many pilots were killed during testing and training, at least in part because of the highly volatile and corrosive nature of the rocket propellant used in later models. This includes pilot Josef Pöhs, a fighter ace and Oberleutnant in the Luftwaffe, who was killed in 1943 by exposure to T-Stoff and injuries sustained during a failed takeoff that ruptured a fuel line.
    Development
    Work on the design started around 1937 under the aegis of the Deutsche Forschungsanstalt für Segelflug (DFS)—the German Institute for the study of sailplane flight. Their first design was a conversion of the earlier Lippisch Delta IV known as the DFS 39 and used purely as a glider testbed of the airframe. A larger follow-on version with a small propeller engine started as the DFS 194. This version used wingtip-mounted rudders that Lippisch felt would cause problems at high speed. Lippisch changed the system of vertical stabilization for the DFS 194's airframe from the earlier DFS 39's wingtip rudders, to a conventional vertical stabilizer at the rear of the aircraft. The design included a number of features from its origins as a glider, notably a skid used for landings, which could be retracted into the aircraft's keel in flight. For takeoff, a pair of wheels, each mounted onto the ends of a specially designed cross-axle, were needed due to the weight of the fuel, but the wheels, forming a takeoff dolly under the landing skid, were released shortly after takeoff.

    The designers planned to use the forthcoming Walter R-1-203 cold engine of 400 kg (880 lb) thrust, which like the self-contained Walter HWK 109-500 Starthilfe RATO booster rocket unit, used a monopropellant consisting of stabilized HTP known by the name T-Stoff. Heinkel had also been working with Hellmuth Walter on his rocket engines, mounting them in the He 112R's tail for testing – this was done in competition with Wernher von Braun's bi-propellant, alcohol/LOX-fed rocket motors, also with the He 112 as a test airframe – and with the Walter catalyzed HTP propulsion format for the first purpose-designed, liquid-fueled rocket aircraft, the He 176. Heinkel had also been selected to produce the fuselage for the DFS 194 when it entered production,as it was felt that the highly volatile monopropellant fuel's reactivity with organic matter would be too dangerous in a wooden fuselage structure. Work continued under the code name Projekt X.

    The division of work between DFS and Heinkel led to problems,notably that DFS seemed incapable of building even a prototype fuselage. Lippisch eventually asked to leave DFS and join Messerschmitt instead. On 2 January 1939, he moved with his team and the partly completed DFS 194 to the Messerschmitt works at Augsburg. The delays caused by this move allowed the engine development to catch up. Once at Messerschmitt, the team decided to abandon the propeller-powered version and move directly to rocket-power. The airframe was completed in Augsburg and in early 1940 was shipped to receive its engine at Peenemünde-West, one of the quartet of Erprobungsstelle-designated military aviation test facilities of the Reich. Although the engine proved to be extremely unreliable, the aircraft had excellent performance, reaching a speed of 550 km/h (340 mph) in one test.

    In the Me 163B and -C subtypes, a ram-air turbine on the extreme nose of the fuselage, and the backup lead-acid battery inside the fuselage that it charged, provided the electrical power for the radio, the Revi16B, -C, or -D reflector gunsight, the direction finder, the compass, the firing circuits of the cannon, and some of the lighting in the cockpit instrumentation.

    There was an onboard lead/acid battery, but its capacity was limited, as was its endurance, no more than 10 minutes, hence the fitted generator.

    The airspeed indicator averaged readings from two sources: the pitot tube on the leading edge of the port wing, and a small pitot inlet in the nose, just above the top edge of the underskid channel. There was a further tapping-off of pressure-ducted air from the pitot tube which also provided the rate of climb indicator with its source.

    The resistance group around the Austrian priest Heinrich Maier (later executed) had contacts with the Heinkelwerke in Jenbach in Tyrol, where important components for the Messerschmitt Me 163 were also produced. The group supplied location sketches of the production facilities to the Allies, allowing Allied bombers to carry out targeted air strikes.
    Me 163A
    In early 1941 production of a prototype series, known as the Me 163, began. Secrecy was such that the RLM's "GL/C" airframe number, 8-163, was actually that of the earlier Messerschmitt Bf 163. Three Bf 163-prototypes (V-1-V3) were built. It was thought that intelligence services would conclude any reference to the number "163" would be for that earlier design. In May 1941, the first prototype Me 163A, V4, was shipped to Peenemünde to receive the HWK RII-203 engine. By 2 October 1941, Me 163A V4, bearing the radio call sign letters, or Stammkennzeichen, "KE+SW", set a new world speed record of 1,004.5 km/h (624.2 mph), piloted by Heini Dittmar, with no apparent damage to the aircraft during the attempt. Some postwar aviation history publications stated that the Me 163A V3 was thought to have set the record.

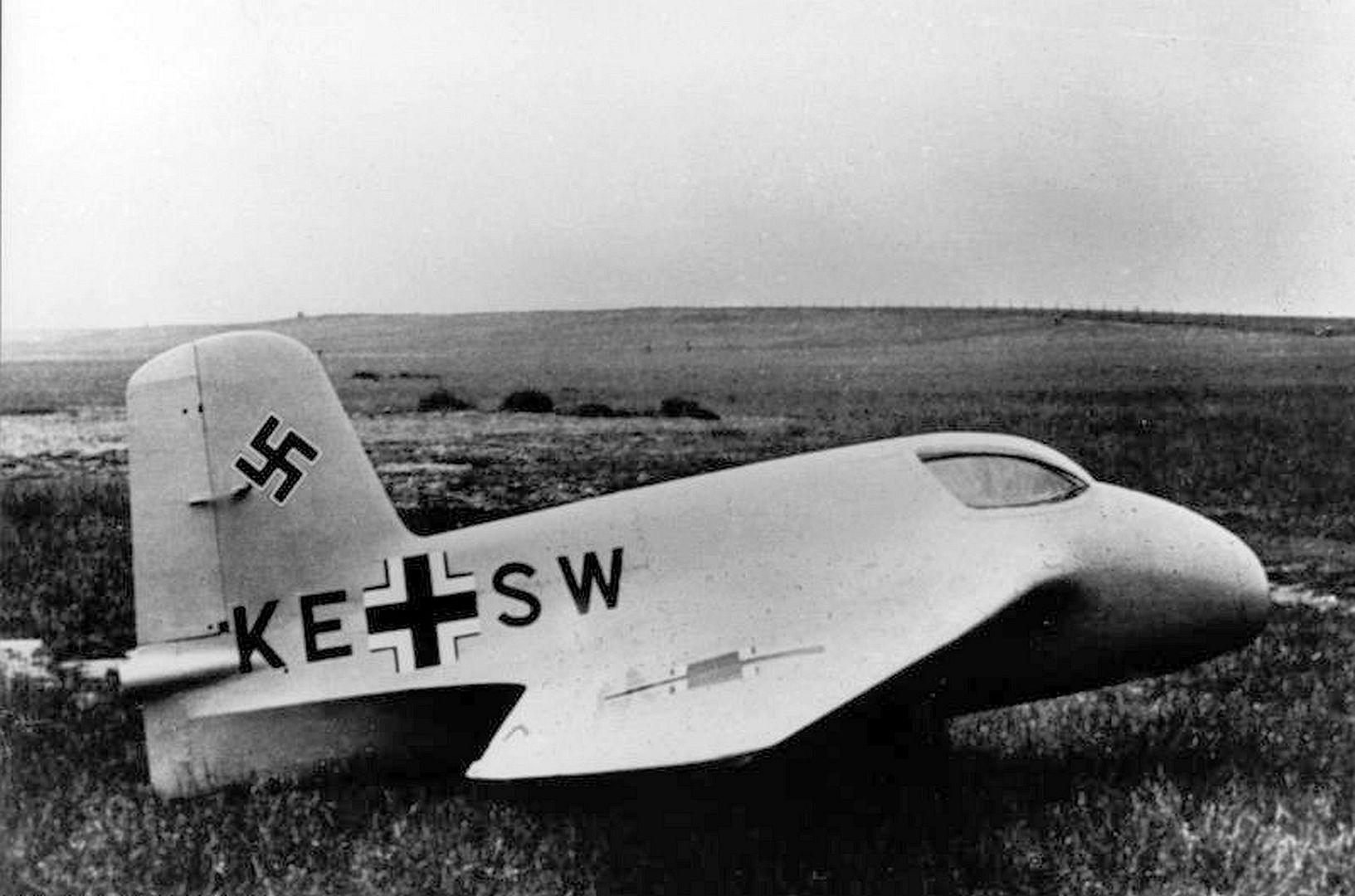

    V4
    The 1,004 km/h (542 kn; 624 mph) record figure was only officially surpassed after the war, by the American Douglas D-558-1 on 20 August 1947. Ten Me 163As (V4-V13) were built for pilot training and further tests.

    During testing of the prototype (A-series) aircraft, the jettisonable undercarriage presented a serious problem. The original dollies possessed well-sprung independent suspension for each wheel, and as the aircraft took off, the large springs rebounded and threw the dolly upward, striking the aircraft. The production (B-series) aircraft used much simpler, crossbeam-axled dollies, and relied on the landing skid's oleo-pneumatic strut to absorb ground-running impacts during the takeoff run, as well as to absorb the shock of landing. If the hydraulic cylinder was malfunctioning, or the skid mistakenly left during a landing procedure in the "locked and lowered" position (as it had to be for takeoff), the impact of a hard touchdown on the skid could cause back injuries to the pilot.

    Once on the ground, the aircraft had to be retrieved by a Scheuch-Schlepper, a converted small agricultural vehicle, originally based on the concept of the two-wheel tractor, carrying a detachable third swiveling wheel at the extreme rear of its design for stability in normal use—this swiveling third wheel was replaced with a pivoting, special retrieval trailer that rolled on a pair of short, triple-wheeled continuous track setups (one per side) for military service wherever the Komet was based. This retrieval trailer usually possessed twin trailing lifting arms, that lifted the stationary aircraft off the ground from under each wing whenever it was not already on its twin-wheel dolly main gear, as when the aircraft had landed on its ventral skid and tailwheel after a mission. Another form of trailer, known also to have been trialled with the later B-series examples, was tried during the Komet's test phase, which used a pair of sausage-shaped air bags in place of the lifting arms and could also be towed by the Scheuch-Schlepper tractor, inflating the air bags to lift the aircraft. The three-wheeled Scheuch-Schlepper tractor used for the task was originally meant for farm use, but such a vehicle with a specialized trailer—which could also lift the Me 163's airframe completely clear of the ground to effect the recovery as a normal part of the Me 163's intended use—was required as the Komet was unpowered after exhausting its rocket propellants, and lacked main wheels after landing, from the jettisoning of its "dolly" main gear at takeoff. The slightly larger Sd Kfz 2 Kettenkrad half-track motorcycle, known to be used with the Me 262 jet fighter for ground handling needs, and documented as also being used with the Arado Ar 234B jet recon-bomber, was not known to have ever been used for ground handling operations with the Komet at any time.

    During flight testing, the superior gliding capability of the Komet proved detrimental to safe landing. As the now un-powered aircraft completed its final descent, it could rise back into the air with the slightest updraft. Since the approach was unpowered, there was no opportunity to make another landing pass. For production models, a set of landing flaps allowed somewhat more controlled landings. This issue remained a problem throughout the program. Nevertheless, the overall performance was tremendous, and plans were made to put Me 163 squadrons all over Germany in 40-kilometre rings (25 mi) around any potential target. Development of an operational version was given the highest priority.
    Me 163B
    In December 1941, work on an upgraded design began. A simplified construction format for the airframe was deemed necessary, as the Me 163A version was not truly optimized for large-scale production. The result was the Me 163B subtype that had the desired, more mass-producible fuselage, wing panel, retractable landing skid and tailwheel designs with the previously mentioned unsprung dolly takeoff gear, and a generally one-piece conical nose for the forward fuselage which could incorporate a turbine for supplementary electrical power while in flight, as well as a one-piece, perimeter frame-only hinged canopy for ease of production.

    Meanwhile, Walter had started work on the newer HWK 109-509 bipropellant hot engine, which added a true fuel of hydrazine hydrate and methanol, designated C-Stoff, that burned with the oxygen-rich exhaust from the T-Stoff, used as the oxidizer, for added thrust (see: List of Stoffs). The new powerplant and numerous detail design changes meant to simplify production over the general A-series airframe design resulted in the significantly modified Me 163B of late 1941. Due to the Reichsluftfahrtministerium requirement that it should be possible to throttle the engine, the original power plant grew complicated and lost reliability.

    The fuel system was particularly troublesome, as leaks incurred during hard landings easily caused fires and explosions. Metal fuel lines and fittings, which failed in unpredictable ways, were used as this was the best technology available. Both fuel and oxidizer were toxic and required extreme care when loading in the aircraft, yet there were occasions when Komets exploded on the tarmac from the propellants' hypergolic nature. Both propellants were clear fluids, and different tanker trucks were used for delivering each propellant to a particular Komet aircraft, usually the C-Stoff hydrazine/methanol-base fuel first. For safety purposes, it left the immediate area of the aircraft following its delivery and capping off of the Komet's fuel tanks from a rear located dorsal fuselage filling point just ahead of the Komet's vertical stabilizer. Then, the other tanker truck carrying the very reactive T-Stoff hydrogen peroxide oxidizer would deliver its load through a different filling point on the Komet's dorsal fuselage surface, located not far behind the rear edge of the canopy.

    The corrosive nature of the liquids, especially for the T-Stoff oxidizer, required special protective gear for the pilots. To help prevent explosions, the engine and the propellant storage and delivery systems were frequently and thoroughly hosed down and flushed with water run through the propellant tanks and the rocket engine's propellant systems before and after flights, to clean out any remnants.The relative "closeness" to the pilot of some 120 litres (31.7 US gal) of the chemically active T-Stoff oxidizer, split between two auxiliary oxidizer tanks of equal volume to either side within the lower flanks of the cockpit area—besides the main oxidizer tank of some 1,040-litre (275 US gal) volume just behind the cockpit's rear wall, could present a serious or even fatal hazard to a pilot in a fuel-caused mishap.

    Two prototypes were followed by 30 Me 163 B-0 pre-production aircraft armed with two 20 mm MG 151/20 cannon and some 400 Me 163 B-1 production aircraft armed with two 30 mm (1.18-inch) MK 108 cannons, but which were otherwise similar to the B-0. Early in the war, when German aircraft firms created versions of their aircraft for export purposes, the a was added to export (ausland) variants (B-1a) or to foreign-built variants (Ba-1) but for the Me 163, there were neither export nor a foreign-built version. Later in the war, the "a" and successive letters were used for aircraft using different engine types: as Me 262 A-1a with Jumo engines, Me 262 A-1b with BMW engines. As the Me 163 was planned with an alternative BMW P3330A rocket engine, it is likely the "a" was used for this purpose on early examples. Only one Me 163, the V10, was tested with the BMW engine, so this designation suffix was soon dropped. The Me 163 B-1a did not have any wingtip "washout" built into it, and as a result, it had a much higher critical Mach number than the Me 163 B-1.

    The Me 163B had very docile landing characteristics, mostly due to its integrated leading edge slots, located directly forward of the elevon control surfaces, and just behind and at the same angle as the wing's leading edge. It would neither stall nor spin. One could fly the Komet with the stick full back, and have it in a turn and then use the rudder to take it out of the turn, and not fear it snapping into a spin. It would also slip well. Because the Me 163B's airframe design was derived from glider design concepts, it had excellent gliding qualities, and the tendency to continue flying above the ground due to ground effect. On the other hand, making a too close turn from base onto final, the sink rate would increase, and one could quickly lose altitude and come in short. Another main difference from a propeller-driven aircraft is that there was no slipstream over the rudder. On takeoff, one had to attain the speed at which the aerodynamic controls become effective—about 129 km/h (80 mph)—and that was always a critical factor. Pilots accustomed to flying propeller-driven aircraft had to be careful that the control stick was not somewhere in the corner when the control surfaces began working. These, like many other specific Me 163 problems, would be resolved by specific training.

    The performance of the Me 163 far exceeded that of contemporary piston engine fighters. At a speed of over 320 km/h (200 mph) the aircraft would take off, in a so-called "scharfer Start" ("sharp start", with "Start" being the German word for "take-off") from the ground, from its two-wheeled dolly. The aircraft would be kept at level flight at low altitude until the best climbing speed of around 676 km/h (420 mph) was reached, at which point it would jettison the dolly, retract its extendable skid using a knob-topped release lever just forward of the throttle (as both levers were located atop the cockpit's portside 120-litre T-Stoff oxidizer tank) that engaged the aforementioned pneumatic cylinder, and then pull up into a 70° angle of climb, to a bomber's altitude. It could go higher if required, reaching 12,000 m (39,000 ft) in an unheard-of three minutes. Once there, it would level off and quickly accelerate to around 880 km/h (550 mph) or faster, which no Allied fighter could match. The usable Mach number was similar to that of the Me 262, but because of the high thrust-to-drag ratio, it was much easier for the pilot to lose track of the onset of severe compressibility and risk loss of control. A Mach warning system was installed as a result. The aircraft was remarkably agile and docile to fly at high speed. According to Rudolf Opitz, chief test pilot of the Me 163, it could "fly circles around any other fighter of its time".

    By this point, Messerschmitt was completely overloaded with production of the Messerschmitt Bf 109 and attempts to bring the Me 210 into service. Production in a dispersed network was handed over to Klemm, but quality control problems were such that the work was later given to Junkers, who were, at that time, underworked. As with many German designs of World War II's later years, parts of the airframe (especially the wings) were made of wood by furniture manufacturers. The older Me 163A and first Me 163B prototypes were used for training. It was planned to introduce the Me 163S, which removed the rocket engine and tank capacity and placed a second seat for the instructor above and behind the pilot, with his own canopy. The Me 163S would be used for glider landing training, which as explained above, was essential to operate the Me 163. It appears the 163Ss were converted from the earlier Me 163B series prototypes.

    In service, the Me 163 turned out to be difficult to use against enemy aircraft. Its tremendous speed and climb rate meant a target was reached and passed in a matter of seconds. Although the Me 163 was a stable gun platform, it required excellent marksmanship to bring down an enemy bomber. The Komet was equipped with two 30 mm (1.18 inch) MK 108 cannons that had a relatively low muzzle velocity of 540 meters per second (1,772 feet/sec), and were accurate only at short range, making it almost impossible to hit a slow moving bomber. Four or five hits were typically needed to take down a B-17.

    Innovative methods were employed to help pilots achieve kills. The most promising was a weapon called the Sondergerät 500 Jägerfaust. This included 10 single-shot, short-barreled 50 mm (2-inch) guns pointing upwards, similar to Schräge Musik. Five were mounted in the wing roots on each side of the aircraft. A photocell in the upper surface of the Komet triggered the weapons by detecting the change in brightness when the aircraft flew under a bomber. As each shell shot upwards, the disposable gun barrel that fired it was ejected downwards, thus making the weapon recoilless. It appears that this weapon was used in combat only once, resulting in the destruction of a Lancaster bomber on 10 April 1945.
    Later versions
    The biggest concern about the design was the short flight time, which never met the projections made by Walter. With only seven and a half minutes of powered flight - only some 25% of the 30-minute combat time that the "light-class" Heinkel He 162A Spatz single-BMW 003 jet fighter possessed when it entered combat in April 1945; the solely rocket-powered Me 163B fighter truly was a dedicated point defense interceptor. To improve this, the Walter firm began developing two more advanced versions of the 509A rocket engine, the 509B and C, each with two separate combustion chambers of differing sizes, one above the other, for greater efficiency. The B-version possessed a main combustion chamber—usually termed in German as a Hauptofen on these dual-chamber subtypes—with an exterior shape much like that on the single chamber 509A version, with the C-version having a forward chamber shape of a more cylindrical nature, designed for a higher top thrust level of some 2,000 kg (4,410 lb) of thrust, while simultaneously dropping the use of the cubic-shape frame for the forward engine propellant flow/turbopump mechanisms as used by the earlier -A and -B versions. The 509B and 509C rocket motors' main combustion chambers were supported by the thrust tube exactly as the 509A motor's single chamber had been. They were tuned for high power for takeoff and climb. The added, smaller volume lower chamber on the two later models, nicknamed the Marschofen with approximately 400 kg (880 lb) of thrust at its top performance level, was intended for more efficient, lower power cruise flight. These HWK 109–509B and C motors would improve endurance by as much as 50%. Two 163 Bs, models V6 and V18, were experimentally fitted with the lower-thrust B-version of the new twin-chamber engine (mandating twin combustion chamber pressure gauges on the instrument panel of any Komet equipped with them), a retractable tailwheel, and tested in spring 1944.

    The main Hauptofen combustion chamber of the 509B engine used for the B V6 and V18 occupied the same location as the A-series' engine did, with the lower Marschofen cruise chamber housed within the retractable tailwheel's appropriately widened ventral tail fairing. On 6 July 1944, the Me 163B V18 (VA+SP), like the B V6 basically a standard production Me 163B airframe outfitted with the new, twin-chamber "cruiser" rocket motor with the aforementioned airframe modifications beneath the original rocket motor orifice to accept the extra combustion chamber, set a new unofficial world speed record of 1,130 km/h (702 mph), piloted by Heini Dittmar, and landed with almost all of the vertical rudder surface broken away from flutter. This record was not broken in terms of absolute speed until 6 November 1947 by Chuck Yeager in flight number 58 that was part of the Bell X-1 test program, with a 1,434 km/h (891 mph), or Mach 1.35 supersonic speed, recorded at an altitude of nearly 14,820 m (48,620 ft). However, it is unclear if Dittmar's flight achieved sufficient altitude for its speed to be considered supersonic, as the X-1 did.

    The X-1 never exceeded Dittmar's speed from a normal runway "scharfer Start" liftoff. Heini Dittmar had reached the 1,130 km/h (702 mph) performance, after a normal "hot start" ground takeoff, without an air drop from a mother ship. Neville Duke exceeded Heini Dittmar's record mark roughly 5+1⁄2 years after Yeager's achievement (and some 263 km/h short of it) on 31 August 1953 with the Hawker Hunter F Mk3 at a speed of 1,171 km/h (728 mph), after a normal ground start. Postwar experimental aircraft of the aerodynamic configuration that the Me 163 used, were found to have serious stability problems when entering transonic flight, like the similarly configured, and turbojet powered, Northrop X-4 Bantam and de Havilland DH 108, which made the V18's record with the Walter 509B "cruiser" rocket motor more remarkable.

    Waldemar Voigt of Messerschmitt's Oberammergau project and development offices started a redesign of the 163 to incorporate the new twin-chamber Walter rocket engine, as well as fix other problems. The resulting Me 163C design featured a larger wing through the addition of an insert at the wing root, an extended fuselage with extra tank capacity through the addition of a plug insert behind the wing, a ventral fairing whose aft section possessed a retractable tailwheel design closely resembling that pioneered on the Me 163B V6, and a new pressurized cockpit topped with a bubble canopy for improved visibility, on a fuselage that had dispensed with the earlier B-version's dorsal fairing. The additional tank capacity and cockpit pressurization allowed the maximum altitude to increase to 15,850 m (52,000 ft), as well as improving powered time to about 12 minutes, almost doubling combat time (from about five minutes to nine). Three Me 163 C-1a prototypes were planned, but it appears only one was flown, but without its intended engine.

    By this time the project was moved to Junkers. There, a new design effort under the direction of Heinrich Hertel at Dessau attempted to improve the Komet. The Hertel team had to compete with the Lippisch team and their Me 163C. Hertel investigated the Me 163 and found it was not well suited for mass production and not optimized as a fighter aircraft, with the most glaring deficiency being the lack of retractable landing gear. To accommodate this, what would eventually become the Me 263 V1 prototype would be fitted with the desired tricycle gear, also accommodating the twin-chamber Walter rocket from the start—later it was assigned to the Ju 248 program.

    The resulting Junkers Ju 248 used a three-section fuselage to ease construction. The V1 prototype was completed for testing in August 1944, and was glider-tested behind a Junkers Ju 188. Some sources state that the Walter 109–509C engine was fitted in September, but it was probably never tested under power. At this point the RLM reassigned the project to Messerschmitt, where it became the Messerschmitt Me 263. This appears to have been a formality only, with Junkers continuing the work and planning production. By the time the design was ready to go into production, the plant where it was to be built was overrun by Soviet forces. While it did not reach operational status, the work was briefly continued by the Soviet Mikoyan-Gurevich (MiG) design bureau as the Mikoyan-Gurevich I-270.
    Operational history
    The initial test deployment of the Me 163A, to acquaint prospective pilots with the world's first rocket-powered fighter, occurred with Erprobungskommando 16 (Service Test Unit 16, EK 16), led by Major Wolfgang Späte and first established in late 1942, receiving their eight A-model service test aircraft by July 1943. Their initial base was as the Erprobungsstelle (test facility) at the Peenemünde-West field. They departed permanently the day after an RAF bombing raid on the area on 17 August 1943, moving southwards, to the base at Anklam, near the Baltic coast. Their stay was brief, as a few weeks later they were placed in northwest Germany, based at the military airfield at Bad Zwischenahn from August 1943 to August 1944. EK 16 received their first B-series armed Komets in January 1944, and was ready for action by May while at Bad Zwischenahn. Major Späte flew the first-ever Me 163B combat sortie on 13 May 1944 from the Bad Zwischenahn base, with the Me 163B armed prototype (V41), bearing the Stammkennzeichen PK+QL.

    As EK 16 commenced small-scale combat operations with the Me 163B in May 1944, the Me 163B's unsurpassed velocity was something Allied fighter pilots were at a loss to counter. The Komets attacked singly or in pairs, often even faster than the intercepting fighters could dive. A typical Me 163 tactic was to fly vertically upward through the bombers at 9,000 m (30,000 ft), climb to 10,700–12,000 m (35,100–39,400 ft), then dive through the formation again, firing as they went. This approach afforded the pilot two brief chances to fire a few rounds from his cannons before gliding back to his airfield. The pilots reported it was possible to make four passes on a bomber, but only if it was flying alone.

    Glider pilots were the preferred trainees, using the Stummelhabicht, with a 6 metres (20 ft) wingspan, to mimic the ME 163 handling characteristics. Training included gunnery practice with a machine pistol mounted in the glider nose. As the cockpit was unpressurized, the operational ceiling was limited by what the pilot could endure for several minutes while breathing oxygen from a mask, without losing consciousness. Pilots underwent altitude chamber training to harden them against the rigors of operating in the thin air of the stratosphere without a pressure suit. Special low fiber diets were prepared for pilots, as gas in the gastrointestinal tract would expand rapidly during ascent.

    Following the initial combat trial missions of the Me 163B with EK 16, during the winter and spring of 1944 Major Späte formed the Luftwaffe's first dedicated Me 163 fighter wing, Jagdgeschwader 400 (JG 400), in Brandis, near Leipzig. JG 400's purpose was to provide additional protection for the Leuna synthetic gasoline works which were raided frequently during almost all of 1944. A further group was stationed at Stargard near Stettin to protect the large synthetic fuel plant at Pölitz (today Police, Poland). Further defensive units of rocket fighters were planned for Berlin, the Ruhr and the German Bight.

    The first actions involving the Me 163B in regular Luftwaffe active service occurred on 28 July 1944, from I./JG 400's base at Brandis, when two USAAF B-17 Flying Fortress were attacked without confirmed kills. Combat operations continued from May 1944 to spring 1945. During this time, there were nine confirmed kills with 10 Me 163s lost. Feldwebel Siegfried Schubert was the most successful pilot, with three bombers to his credit. Allied fighter pilots soon noted the short duration of the powered flight. They would wait and, when the engine exhausted its propellant, pounce on the unpowered Komet. However, the Komet was extremely manoeuverable in gliding flight. Another Allied method was to attack the fields the Komets operated from and strafe them after the Me 163s landed. Due to the skid-based landing gear system, the Komet was immobile until the Scheuch-Schlepper tractor could back the trailer up to the nose of the aircraft, place its two rear arms under the wing panels, and jack up the trailer's arms to hoist the aircraft off the ground or place it back on its take-off dolly to tow it back to its maintenance area.

    At the end of 1944, 91 aircraft had been delivered to JG 400 but lack of fuel had kept most of them grounded. It was clear that the original plan for a huge network of Me 163 bases would never be realized. Up to that point, JG 400 had lost only six aircraft due to enemy action. Nine were lost to other causes, remarkably few for such a revolutionary and technically advanced aircraft. In the last days of Nazi Germany, the Me 163 was given up in favor of the more successful Me 262. At the beginning of May 1945, Me 163 operations were stopped, the JG 400 disbanded, and many of its pilots sent to fly Me 262s.

    In any operational sense, the Komet was a failure. Although it shot down 16 aircraft, mainly four-engined bombers, it did not warrant the effort put into the project. Due to fuel shortages late in the war, few went into combat, and it took an experienced pilot with excellent shooting skills to achieve "kills". The Komet also spawned later weapons like the vertical-launch, similarly rocket-powered Bachem Ba 349 Natter, and the postwar, American turbojet-powered Convair XF-92 delta wing interceptor. Ultimately, the point defense role that the Me 163 played would be taken over by the surface-to-air missile (SAM), Messerschmitt's own example being the Enzian.
    Flight
    Captain Eric Brown RN, Chief Naval Test Pilot and commanding officer of the Captured Enemy Aircraft Flight, who tested the Me 163 at the Royal Aircraft Establishment (RAE) at Farnborough, said, "The Me 163 was an aeroplane that you could not afford to just step into the aircraft and say 'You know, I'm going to fly it to the limit.' You had very much to familiarise yourself with it because it was state-of-the-art and the technology used." Acting unofficially, after a spate of accidents involving Allied personnel flying captured German aircraft resulted in official disapproval of such flights, Brown was determined to fly a powered Komet. On around 17 May 1945, he flew an Me 163B at Husum with the help of a cooperative German ground crew, after initial towed flights in an Me 163A to familiarise himself with the handling.

    The day before the flight, Brown and his ground crew had performed an engine run on the chosen Me 163B to ensure that everything was running correctly, the German crew being apprehensive should an accident befall Brown, until being given a disclaimer signed by him to the effect that they were acting under his orders. On the rocket-powered "scharfer-start" takeoff the next day, after dropping the takeoff dolly and retracting the skid, Brown later described the resultant climb as "like being in charge of a runaway train", the aircraft reaching 32,000 ft (9.76 km) altitude in 2 minutes, 45 seconds. During the flight, while practicing attacking passes at an imaginary bomber, he was surprised at how well the Komet accelerated in the dive with the engine shut down. When the flight was over Brown had no problems on the approach to the airfield, apart from the rather restricted view from the cockpit due to the flat angle of glide, the aircraft touching down at 200 km/h (120 mph). Once down safely, Brown and his much-relieved ground crew celebrated with a drink.

    Beyond Brown's unauthorised flight, the British never tested the Me 163 under power themselves; due to the danger of its hypergolic propellants it was only flown unpowered. Brown himself piloted RAE's Komet VF241 on a number of occasions, the rocket motor being replaced with test instrumentation. When interviewed for a 1990s television programme, Brown said he had flown five tailless aircraft in his career (including the British de Havilland DH 108). Referring to the Komet, he said "this is the only one that had good flight characteristics"; he called the other four "killers".
    11
    10
    9
    8
    500

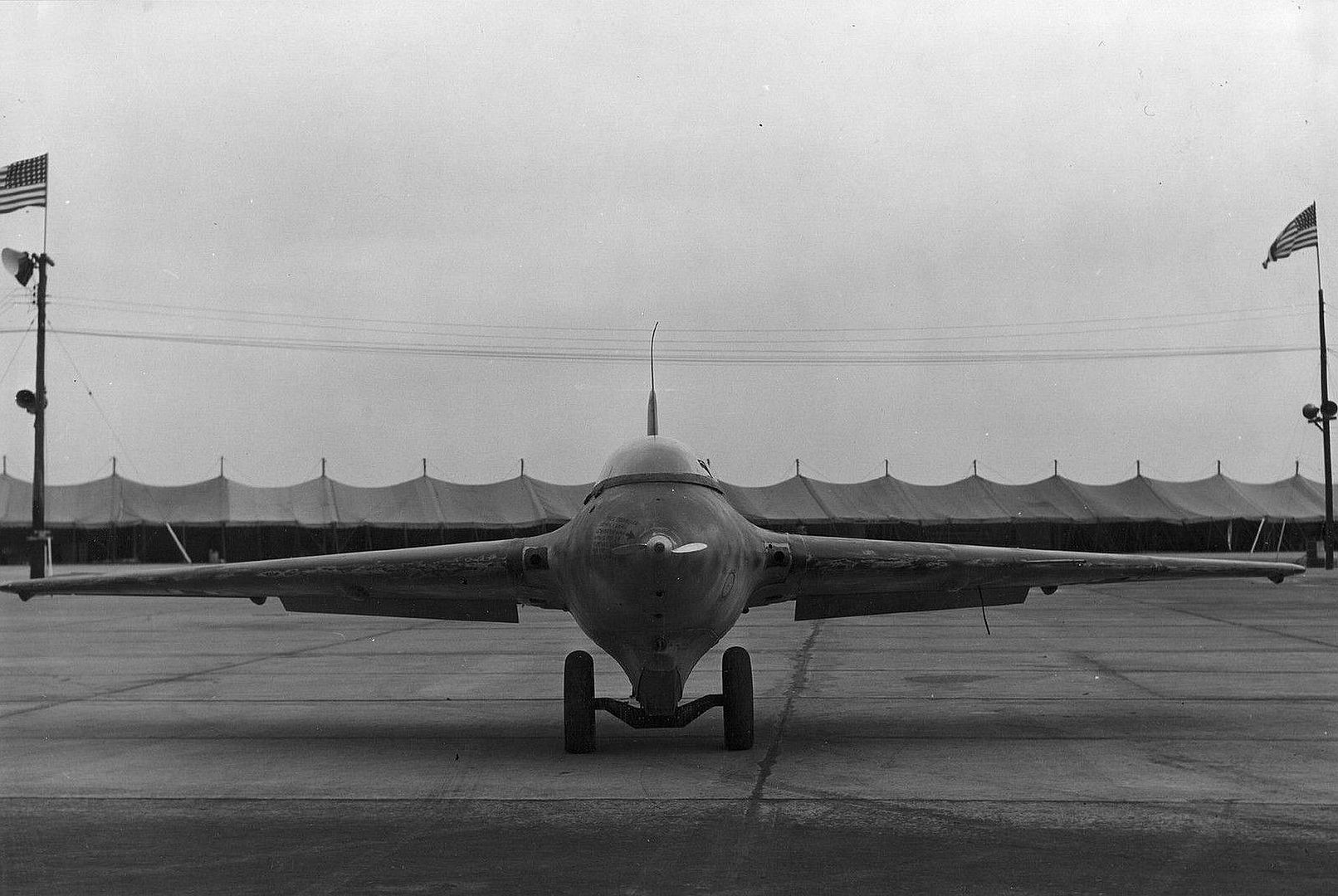

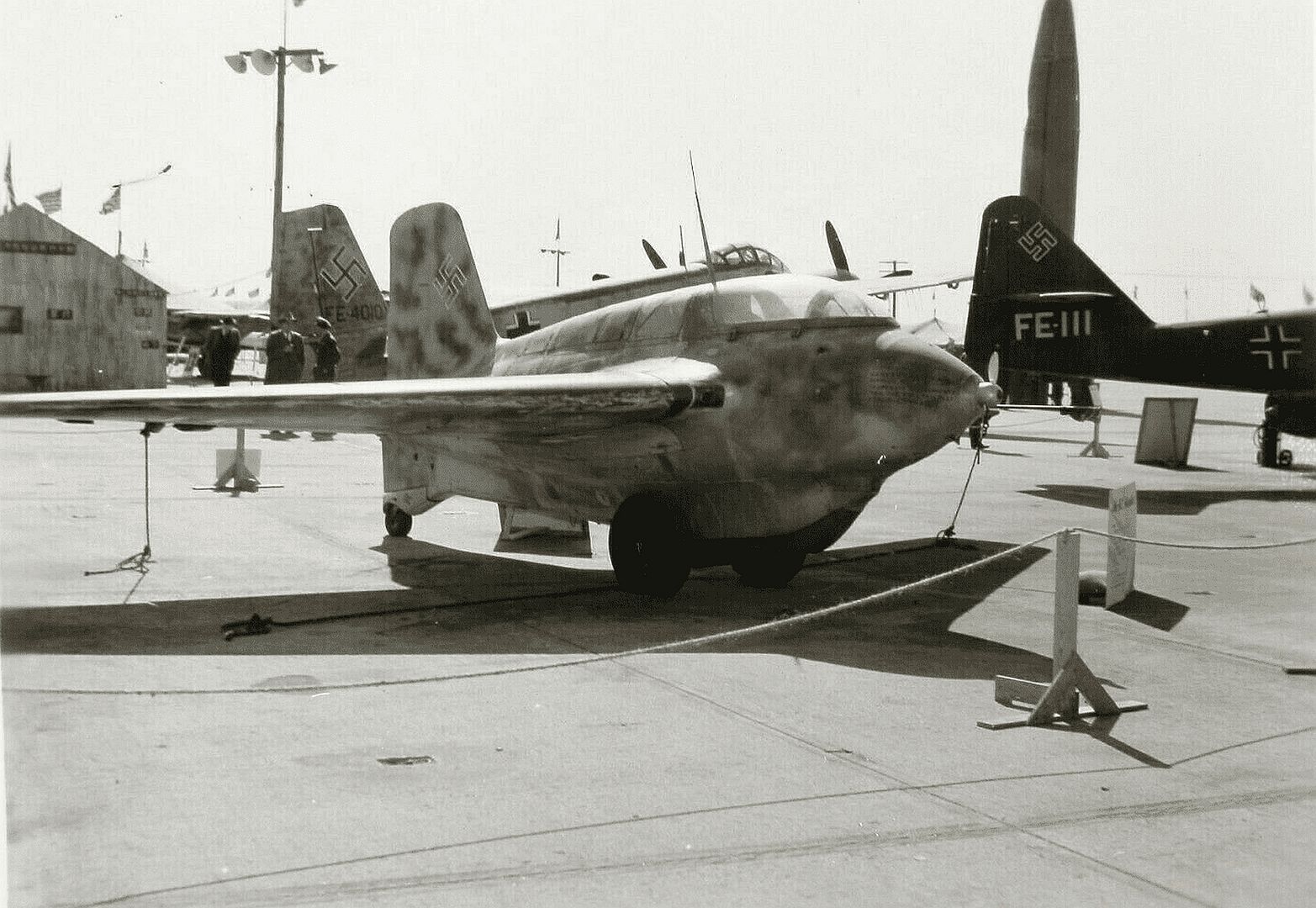

    Wright Field
    14
    13
    12
    7
    6
    5
    4
    3
    1
    163
    2
    Japanese versions
    As part of their alliance, Germany provided the Japanese Empire with plans and an example of the Me 163. One of the two submarines carrying Me 163 parts did not arrive in Japan, so at the time, the Japanese lacked all of the major parts and construction blueprints, including the turbopump, which they could not make themselves, forcing them to reverse-engineer their own design from information obtained in the Me 163 Erection & Maintenance manual obtained from Germany. The prototype J8M crashed on its first powered flight and was completely destroyed, but several variants were built and flown, including: trainers, fighters, and interceptors, with only minor differences between the versions.

    The Navy version, the Mitsubishi J8M1 Shūsui, replaced the Ho 155 cannon with the Navy's 30 mm (1.18 in) Type 5. Mitsubishi also planned on producing a version of the 163C for the Navy, known as the J8M2 Shūsui Model 21. A version of the 163 D/263 was known as the J8M3 Shusui for the Navy with the Type 5 cannon, and a Ki-202 Shūsui-kai (秋水改, "Autumn Water, modified") with the Ho 155-II for the Army. Trainers were planned, roughly the equivalent of the Me 163 A-0/S; these were known as the Kugisho/Yokosuka MXY8 (Yokoi Ki-13) Akigusa (秋草, "Autumn Grass") (an unpowered glider trainer) and Kugisho/Yokosuka MXY9 Shūka (秋花, "Autumn Flower") (a Tsu-11-powered motorjet trainer).

    One complete example of the Japanese aircraft survives at the Planes of Fame Air Museum in California. The fuselage of a second aircraft is displayed at the Mitsubishi company's Komaki Plant Museum, at Komaki, Aichi in Japan.
    2
    1

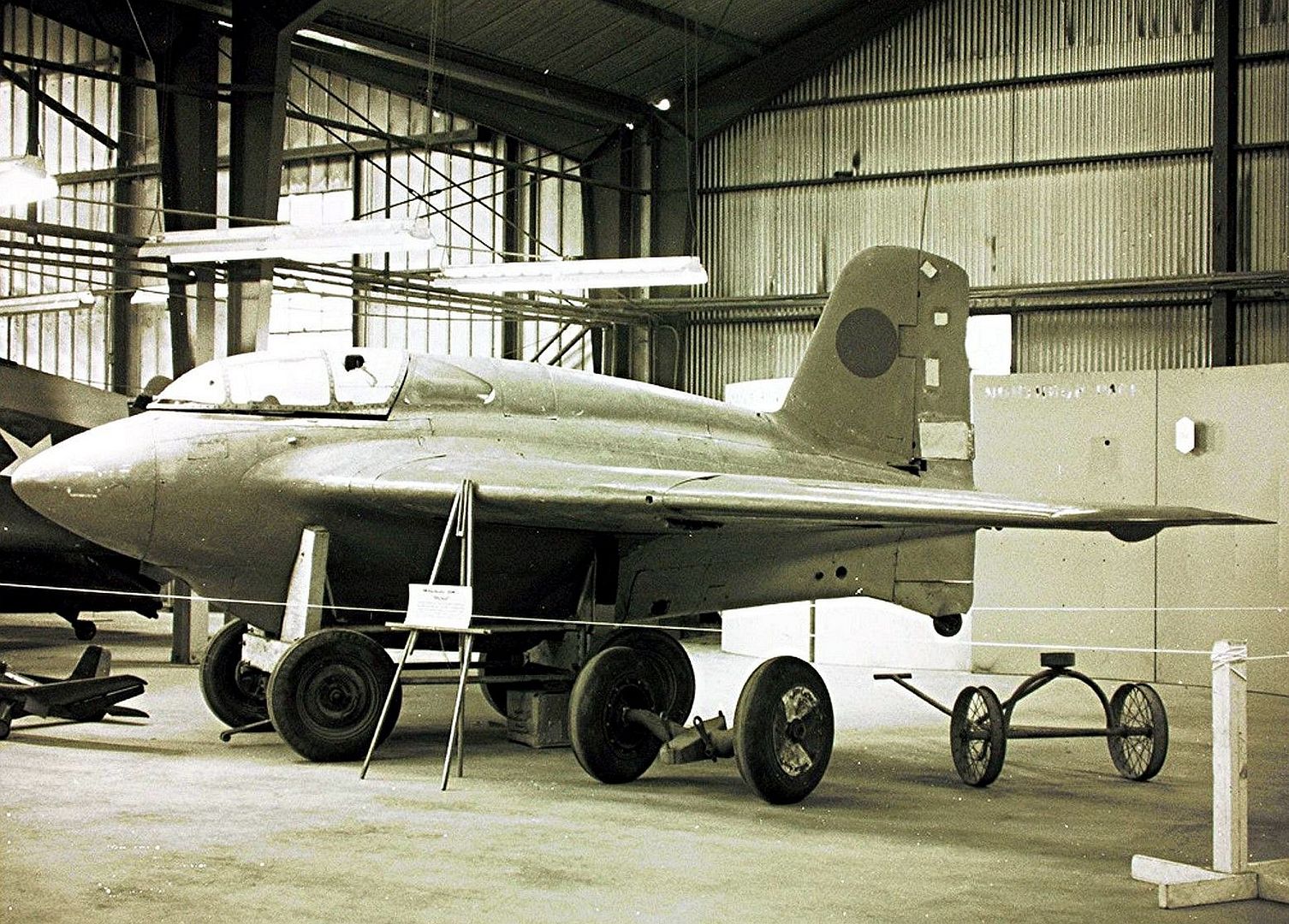

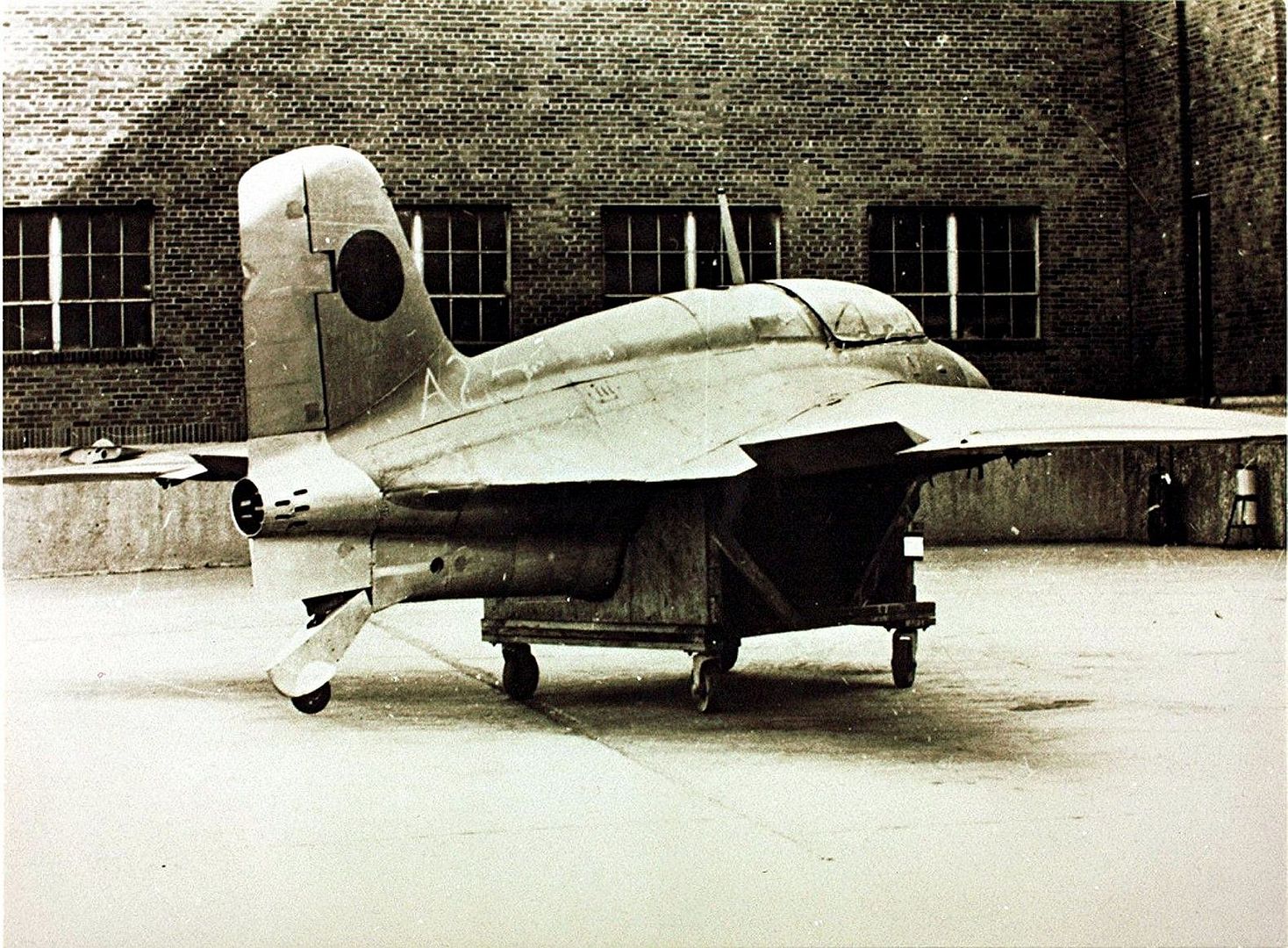

    Mitsubishi J8M Shusui
    Specifications: Me 163B-1a
    General characteristics
    Crew: 1
    Capacity: (Me 163S + 1)
    Length: 5.7 m (18 ft 8 in)
    Wingspan: 9.3 m (30 ft 6 in)
    Height: 2.5 m (8 ft 2 in)
    Wing area: 19.6 m2 (211 sq ft)
    Empty weight: 1,905 kg (4,200 lb)
    Max takeoff weight: 4,309 kg (9,500 lb)
    Fuel capacity:

    C-Stoff (fuel) 468 kg (1,032 lb)
    T-Stoff (oxidiser) 1,550 kg (3,420 lb)
    Powerplant: 1 × Hellmuth Walter Kommanditgesellschaft HWK 109-509A-2 bi-propellant liquid-fuelled rocket motor, 14.71 kN (3,307 lbf) thrust maximum; 980 N (220 lbf) minimum, fully variable.
    Performance
    Never exceed speed: 900 km/h (560 mph, 490 kn) at all altitudes, sea level to 12,000 m (39,000 ft)
    Flap limiting speed: 300 km/h (190 mph; 160 kn)
    Rotate speed at take-off: 280 km/h (170 mph; 150 kn)
    Best climbing speed: 700–720 km/h (430–450 mph; 380–390 kn)
    Endurance: 7.5 mins powered
    Rate of climb: 81 m/s (16,000 ft/min)
    Time to altitude: From standing start
    2,000 m (6,600 ft) in 1.48 min
    4,000 m (13,000 ft) in 2.02 min
    6,000 m (20,000 ft) in 2.27 min
    8,000 m (26,000 ft) in 2.54 min
    10,000 m (33,000 ft) in 3.19 min
    12,000 m (39,000 ft) in 3.45 min
    Wing loading: 209 kg/m2 (43 lb/sq ft) at maximum take-off weight
    Thrust/weight: 0.42
    Armament
    Guns:
    2 × 30 mm (1.181 in) Rheinmetall Borsig MK 108 cannon with 60 rpg (B-1a)

    or

    2 × 20 mm (0.787 in) MG 151/20 cannon with 100 rpg (Ba-1 / B-0 pre-production aircraft)
