• The Henschel Hs 129 was a World War II ground-attack aircraft fielded by the German Luftwaffe. The aircraft saw combat in Tunisia and on the Eastern Front.

    A key requirement of the original specification was that the aircraft be powered by engines that were not in demand for other designs. Prototypes with low-power German Argus As 410 engines of 465 PS (459 hp; 342 kW) failed acceptance test, a more powerful replacement was found with the French Gnome-Rhône 14M engine of 700 PS (690 hp; 515 kW).

    The design was relatively effective when it was first introduced, and saw service on the Eastern Front in a variety of front-line roles. As the war continued and anti-tank support became the main goal, the aircraft was continually up-gunned, eventually mounting a 75 mm anti-tank gun. Only a small number of these B-3 models were produced, late in the war.
    Design and development
    By the mid-1930s, the German military, as well as its counterparts in other countries, had come to see the main role of ground-attack aircraft as the interdiction of logistics and materiel, a task in which targets were often poorly protected and less likely to have strong, well-coordinated defences. For high-value, well-protected tactical targets, the dive bomber was becoming the conventional solution.

    The experience of the German Kondor Legion during the Spanish Civil War (1936–39) refuted this idea. Even though it was equipped with types unsuited to the role, such as the Henschel Hs 123 and cannon-armed versions of the Heinkel He 112, the Kondor Legion proved that ground-attack aircraft were a very effective weapon. This led to support within the Luftwaffe for the creation of an aircraft dedicated to this role, and the Reichsluftfahrtministerium (RLM; "Reich Air Ministry") requested tenders for a specialized ground attack aircraft.

    It was anticipated that the main source of damage to such an aircraft would be small arms fire from the ground, meaning that the plane had to be well-armored around its cockpit and engines. Similar protection was also needed in the canopy, in the form of 75 mm (2.95 in) thick armored glass. The aircraft was expected to be attacking in low-level, head-on strafing runs, so the cockpit had to be located as close as possible to the nose, in order to maximize the visibility of its targets. Another, non-operational, requirement severely hampered the designs: the RLM insisted that the new design be powered by engines that were not being used in existing aircraft, so that the type would not interfere with the production of established types deemed essential to the war effort.

    Only four companies were asked to submit tenders; three submissions followed and only two of these were considered worthy of consideration: one derived from an existing Focke-Wulf reconnaissance type, the Fw 189, the other was Henschel's all-new Hs 129.
    The Hs 129 was designed around a single large "bathtub" of steel sheeting that made up the entire nose area of the plane, completely enclosing the pilot up to head level. Even the canopy was steel, with only tiny windows on the side to see out of and two angled blocks of glass for the windscreen. To improve the armor's ability to deflect bullets, the fuselage sides were angled in, forming a triangular shape, resulting in almost no room to move at shoulder level. There was so little room in the cockpit that the instrument panel ended up under the nose below the windscreen, where it was almost invisible; some of the engine instruments were moved outside onto the engine nacelles' inboard-facing surfaces and the gunsight was mounted outside on the nose.

    Henschel's plane came in 12 percent overweight with the engines 8 percent underpowered; understandably, it flew poorly. The controls proved to be almost inoperable as speed increased and in testing, the V2 prototype flew into the ground from a short dive on 5 January 1940 because the stick forces were too high for the pilot to pull out. The Focke-Wulf design proved to be no better. Both planes were underpowered with their air-cooled, inverted-V12 Argus As 410 engines and very difficult to fly.

    The RLM nevertheless felt they should continue with the concept. The only real deciding factor between the two designs was that the Henschel was smaller and cheaper. The Focke-Wulf was put on low priority as a backup and testing continued with the Hs 129 A-0. Improvements resulted in the Hs 129 A-1 series, armed with two 20 mm MG 151/20 cannons and two 7.92 mm (.312 in) MG 17 machine guns, along with the ability to carry four 50 kg (110 lb) bombs along the fuselage centreline.
    Hs 129 B-1
    Even before the A-1s were delivered, the plane was redesigned with Gnome-Rhône 14M radial engines, which were captured in some number when France fell and continued to be produced under German occupation. This engine supplied 700 PS (690 hp; 515 kW) for takeoff, compared with the Argus at 465 PS (459 hp; 342 kW). The Gnome-Rhone radials were also made in versions with opposite rotation for the propeller, and were installed on the Hs 129 with the port engine rotating clockwise and the starboard rotating counterclockwise, as seen from nose-on, thus eliminating engine torque problems.

    The A-1 planes were converted into Hs 129 B-0s for testing (although it has been claimed that some As were sold to Romania) and the pilots were reportedly much happier with the results. Their main complaint was the view from the canopy, so a single larger windscreen and a new canopy with much better vision were added, resulting in the production model Hs 129 B-1.

    B-1 production began in December 1941 but deliveries were slow. In preparation for the new plane, I./SchlG 1 had been formed in January with Bf 109 E/Bs (fighter-bomber version of Bf 109 E) and Hs 123s and they delivered B-0s and every B-1 that was completed. It was not until April that 12 B-1s were delivered and the 4th Staffel (squadron) became ready for action. They moved to the Eastern Front (to Crimea) in the middle of May 1942 and in June they received a new weapon, the 30 mm (1.2 in) MK 101 cannon with armor-piercing ammunition in a centerline pod.
    Hs 129 B-2
    Deliveries of the new Hs 129 B-2 model began in May 1942, side by side with the B-1 (of which just 50 planes had been delivered at that point). The only difference between the two were changes to the fuel system – a host of other minor changes could be found almost at random on either model. These changes accumulated in the B-2 production line until they could eventually be told apart at a glance; the main differences being the removal of the mast for the radio antenna, the addition of a direction-finding radio antenna loop, and shorter exhaust stacks on the engines.

    In the field, the differences seemed to be more pronounced. The Rüstsatz field refit kits were renumbered and some were dropped, and in general, the B-2 planes received the upgraded cannon pack using a 30 mm MK 103 cannon instead of the earlier MK 101. These guns both fired the same ammunition, but the 103 did so at almost twice the rate.

    By late 1942 reports were coming in about the ineffectiveness of the MK 101 against newer versions of the Soviet T-34 tanks. One obvious solution would be to use the larger 3.7 cm (1.46 in) BK 3,7 (Bordkanone 3,7), recently adapted from the ground-based 3.7 cm Flak 18. These guns had already been converted into underwing pod-mounted weapons for the Junkers Ju 87G and found to be an effective weapon, despite the fact that only 12 shells per pod could be accommodated. When mounted on the Hs 129, the empty area behind the cockpit could be used for ammunition storage, greatly increasing the supply compared to the Ju. The B-2/R3 package introduced the BK 3.7 cm (1.46 in) automatic cannon, but relatively few aircraft were converted in favour of the B-3, mounting the BK 7.5.
    Hs 129 B-3
    It was decided that the 7.5 cm (2.95 in) semi-automatic Rheinmetall PaK 40 anti-tank gun, which had already been adapted for use in the Junkers Ju 88P-1, would be further modified for use in the Hs 129. This resulted in the BK 7,5 (Bordkanone 7,5), which, even though it weighed 1,200 kg (2,600 lb), was lighter than the PaK 40. Fully automatic, it featured a new, hydraulic recoil-dampening system and a new, more aerodynamic muzzle brake. An autoloader system, with 12 rounds in a rotary magazine, was fitted in the empty space behind the cockpit, within the rear half of the wing root area. The gun and its recoil mechanism occupied a substantial gun pod under the fuselage, and a circular port at the rear of the pod allowed rearwards ejection of spent cartridges immediately after firing. While this new variant, the Hs 129 B-3, was theoretically capable of destroying any tank in the world, the added weight worsened the aircraft's general performance and it was inferior to previous variants.

    The Bordkanone 7,5 was the heaviest and most powerful forward-firing weapon fitted to a production military aircraft during World War II. The only other ground-attack aircraft to be factory-equipped with similar-calibre guns were the 1,420 examples of the North American B-25G and B-25H Mitchell, which mounted either a 75 mm (2.95 in) M4 cannon, or lightweight T13E1 or M5 versions of the same gun, both of which required a crew member to manually reload after each shot.

    From June 1944, only 25 examples of the Hs 129 B-3 arrived at frontline units before the production line was shut down in September (a small number were reportedly also created by converting B-2 aircraft). In the field the B-3 proved effective, but its small numbers had little effect on the war effort.
    Hs 129 C
    To address the poor performance of the aircraft, plans had been under way for some time to fit the plane with newer versions of the Italian Isotta-Fraschini Delta air-cooled inverted V12 inline engine that delivered 630 kW (850 hp) and weighed some 510 kg (1,111 lb) apiece, providing more power than the Argus As 411 engine of similar configuration and lighter (385 kg) weight. The engine installation ran into a number of delays and was still not ready for production when the plant was overrun by the Allies in 1945.
    Hs 129 D
    Planned version of the Hs 129. Powered by either two 809 kW (1,085 hp; 1,100 PS) Junkers Jumo 211 or two 1,148 kW (1,539 hp; 1,561 PS) BMW 801 to improve its performance. No prototypes were made.

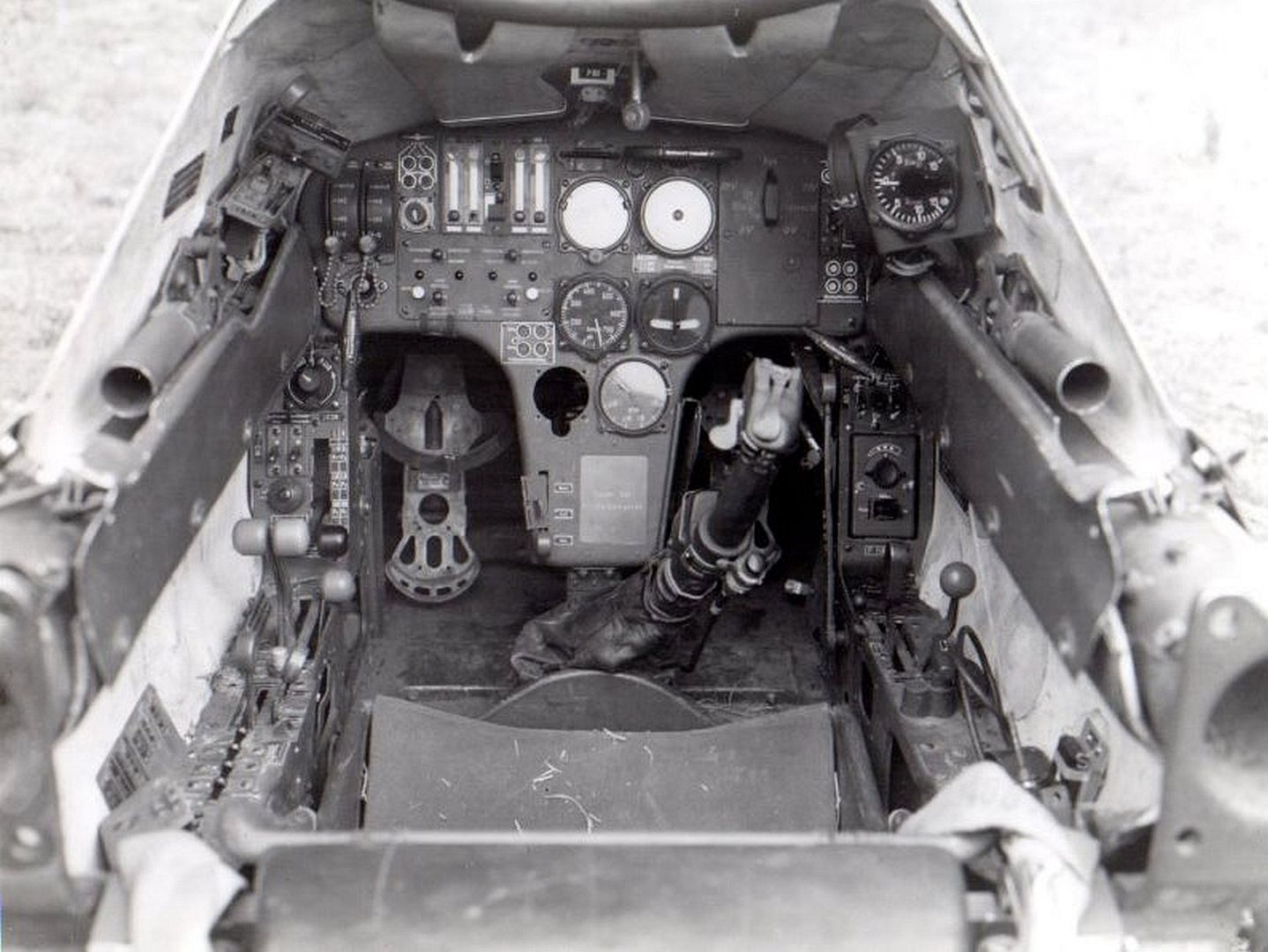

    Henschel Hs 129 Cockpit
    SG 9 Czernovitz May 1944

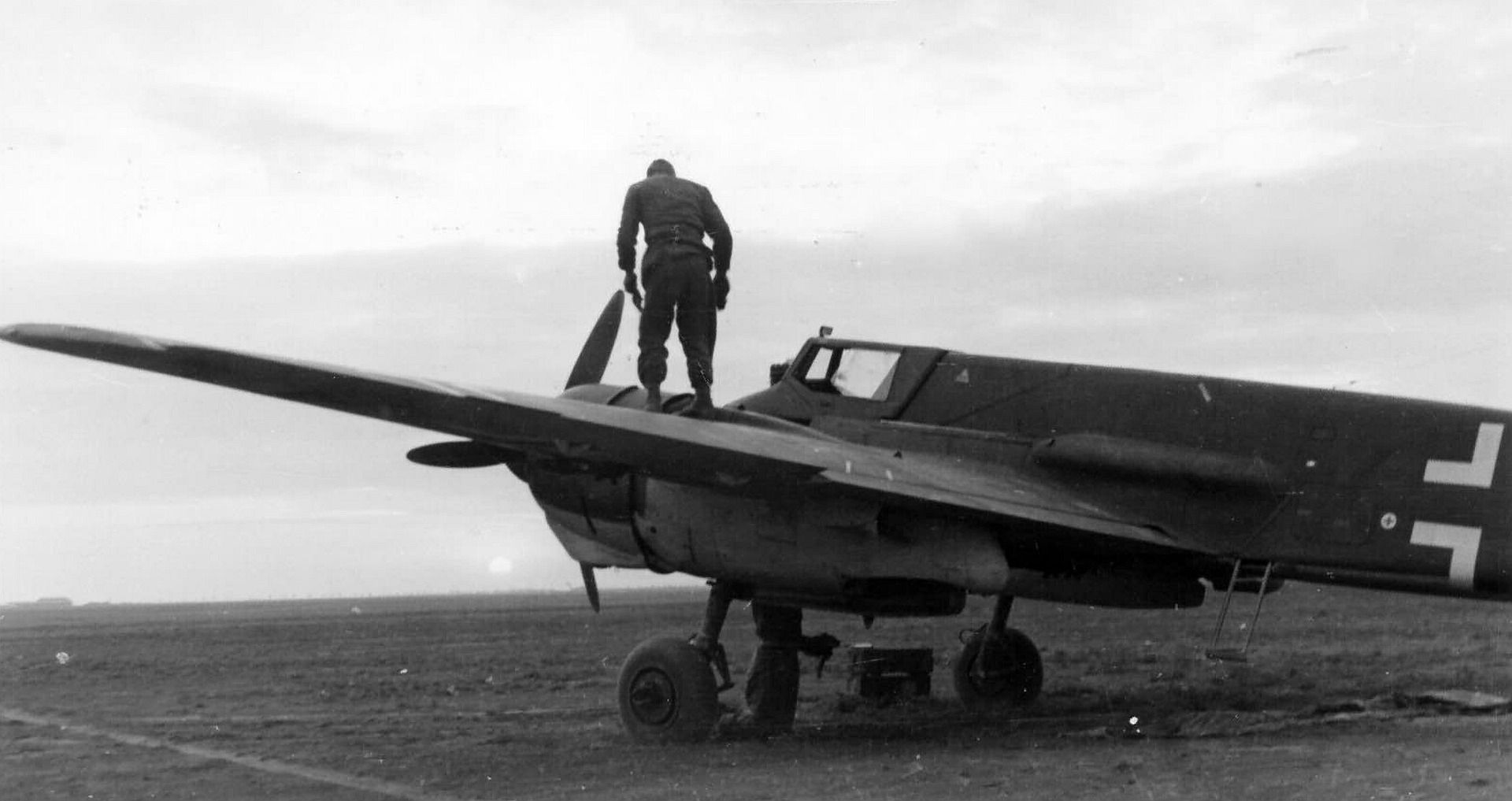

    Henschel Hs 129B Eastern Front

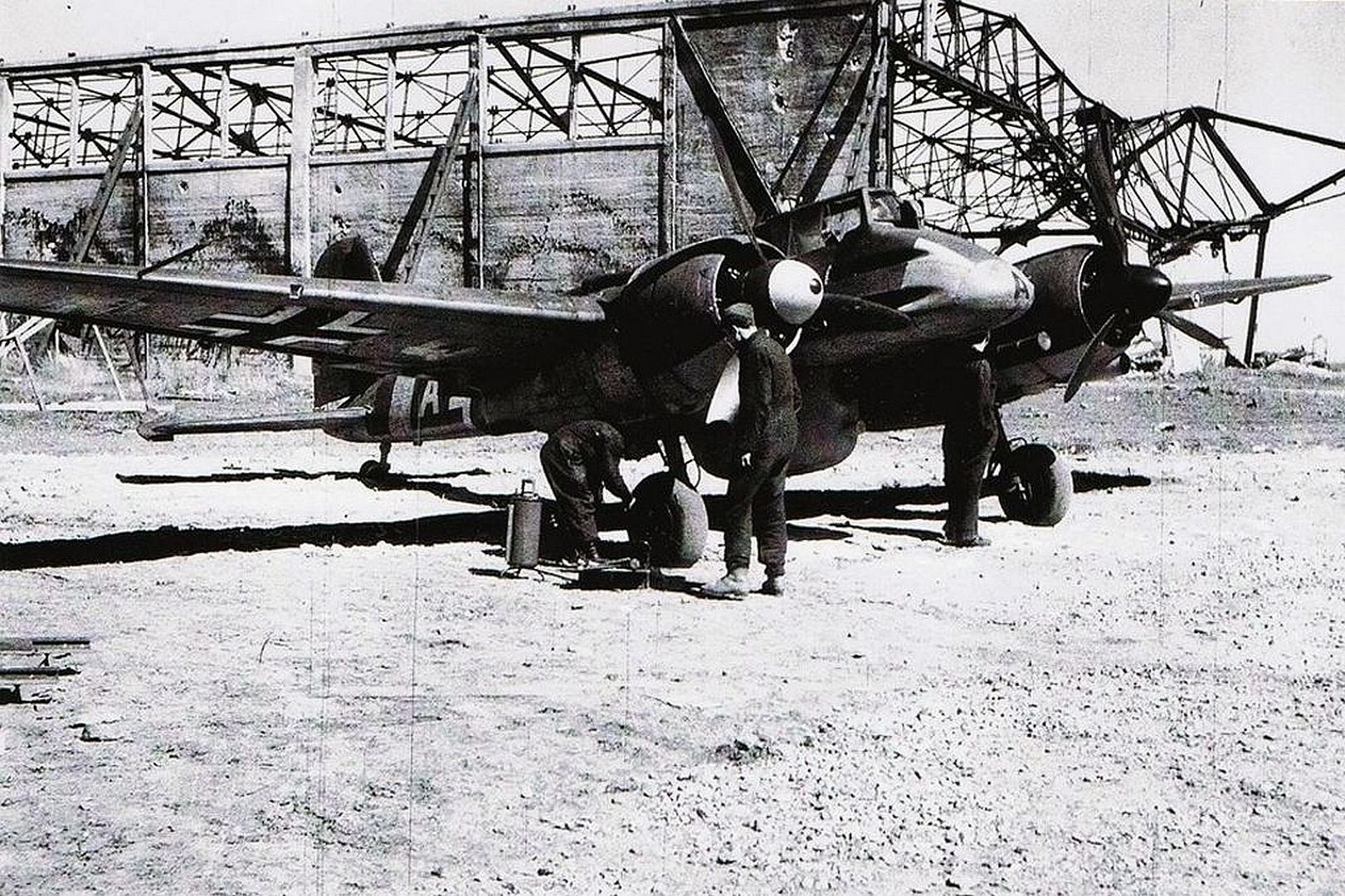

    Henschel Hs 129B

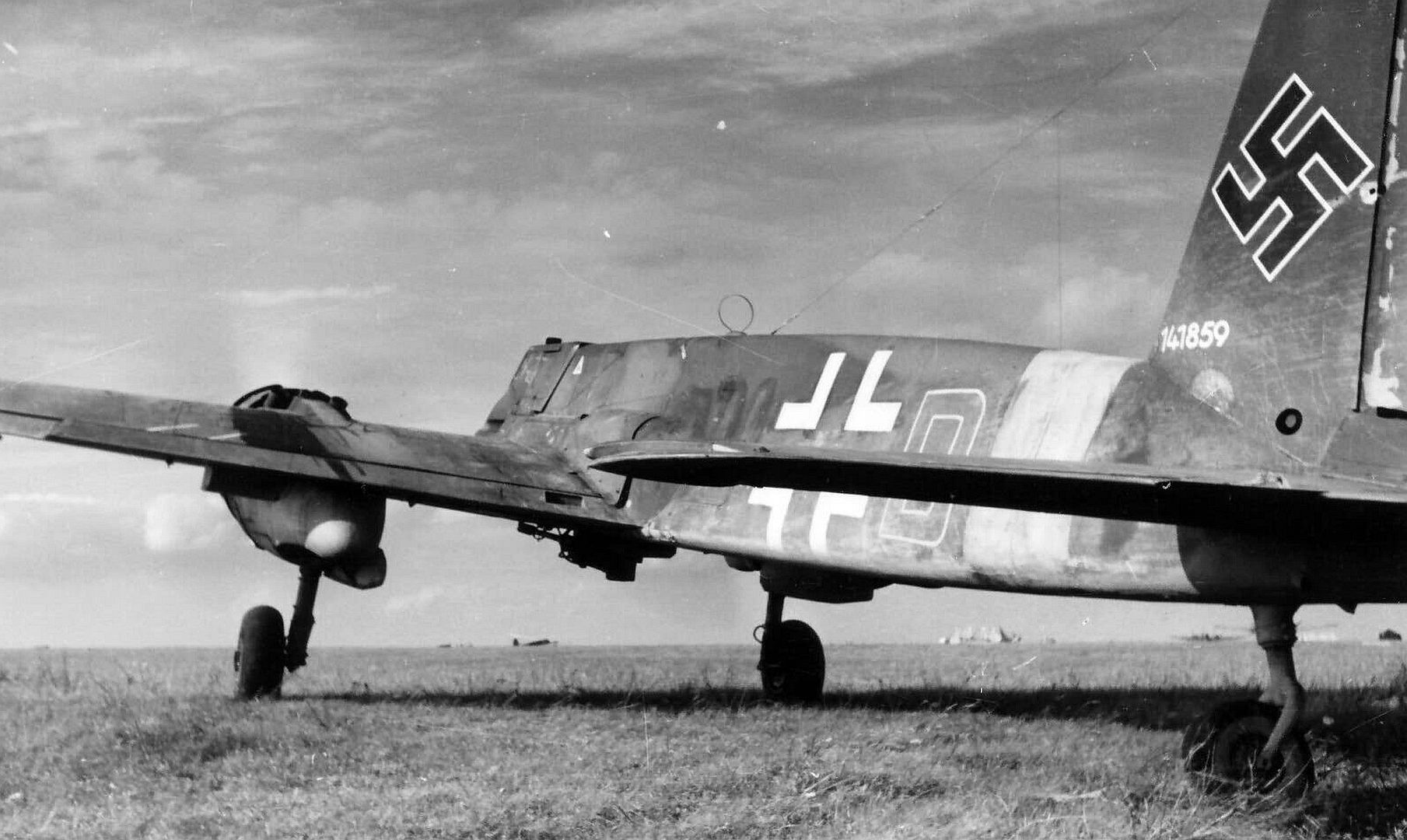

    2 141859
    SchG 1

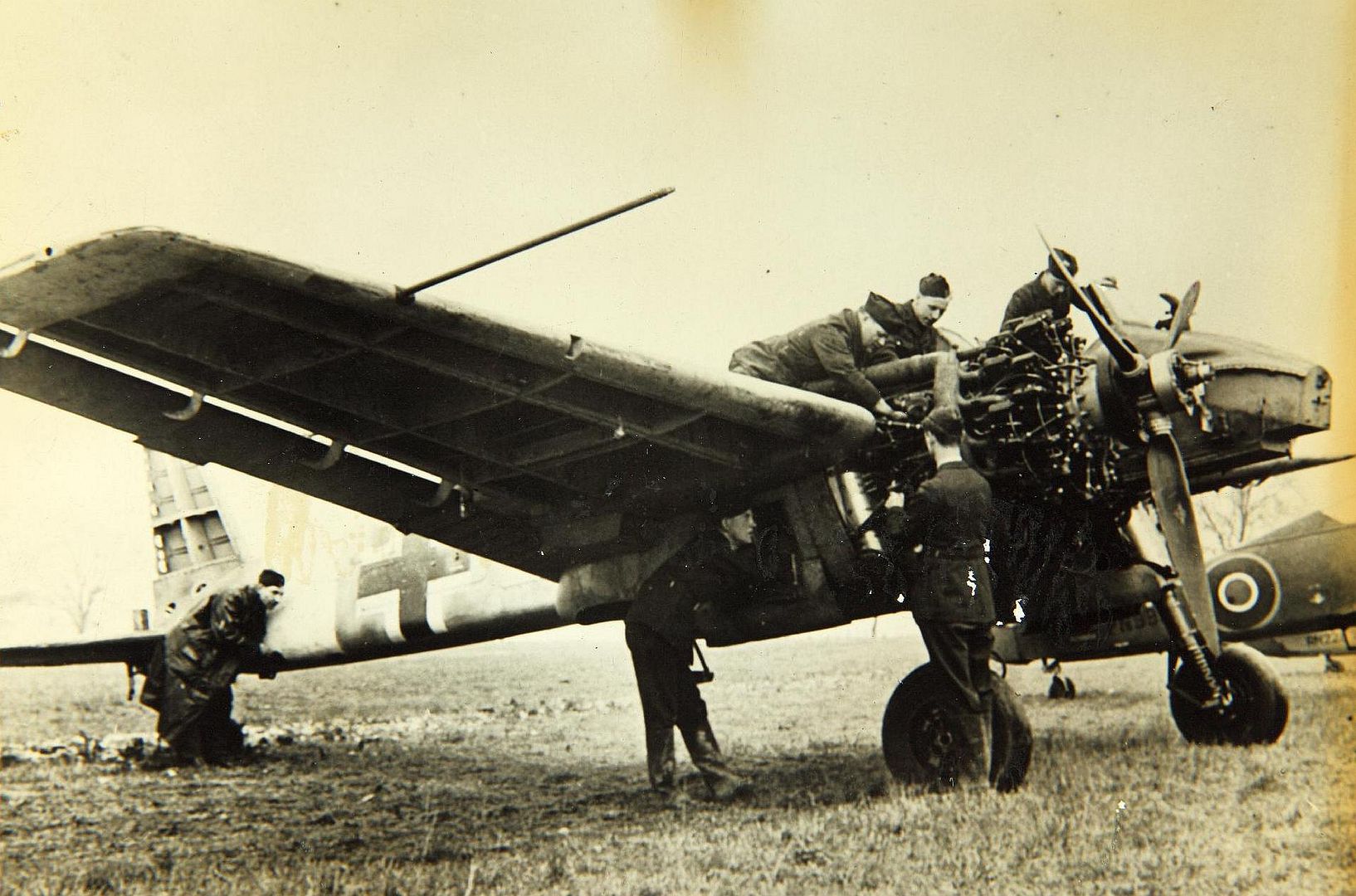

    Henschel Hs 129 RAF

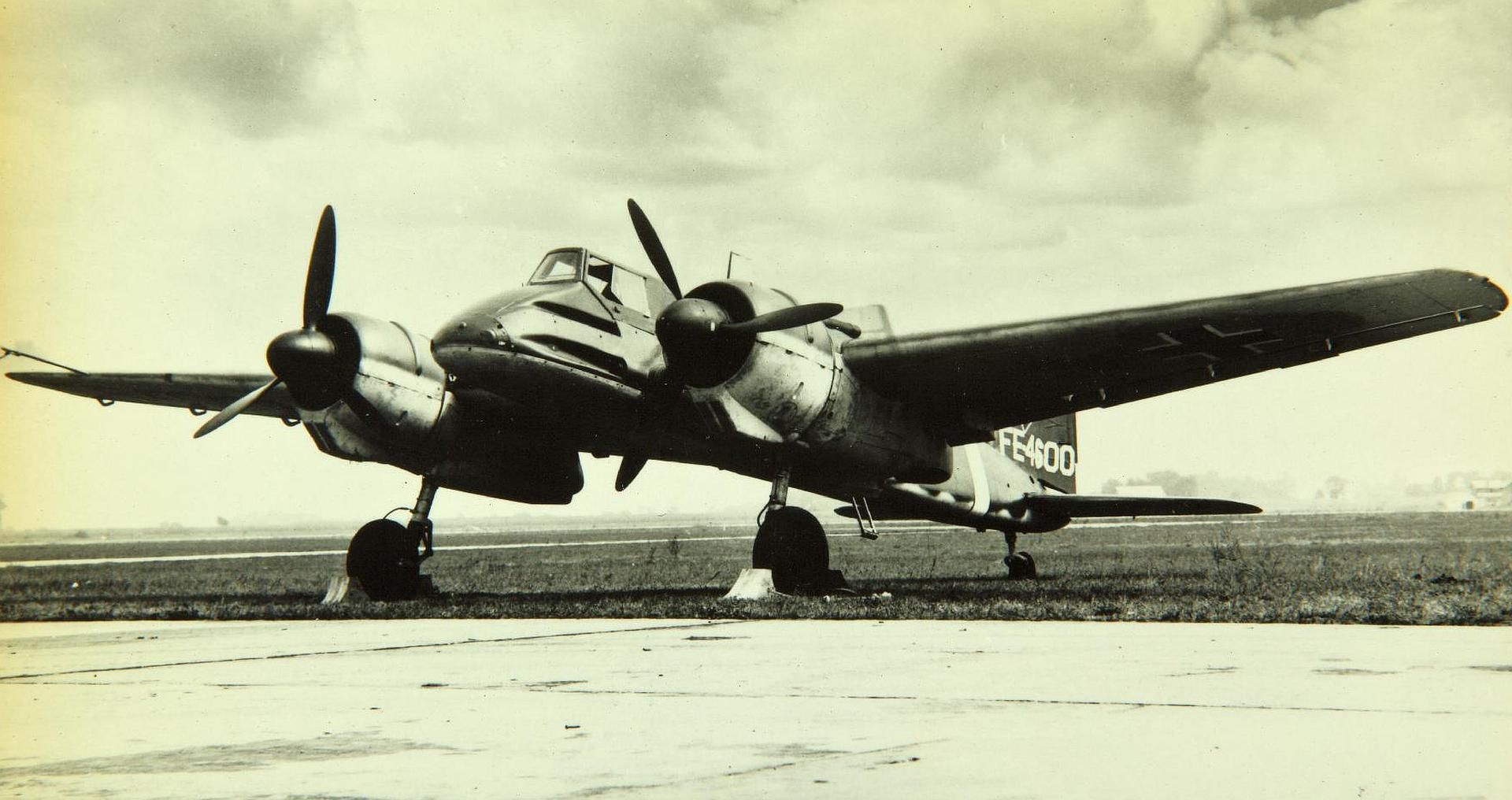

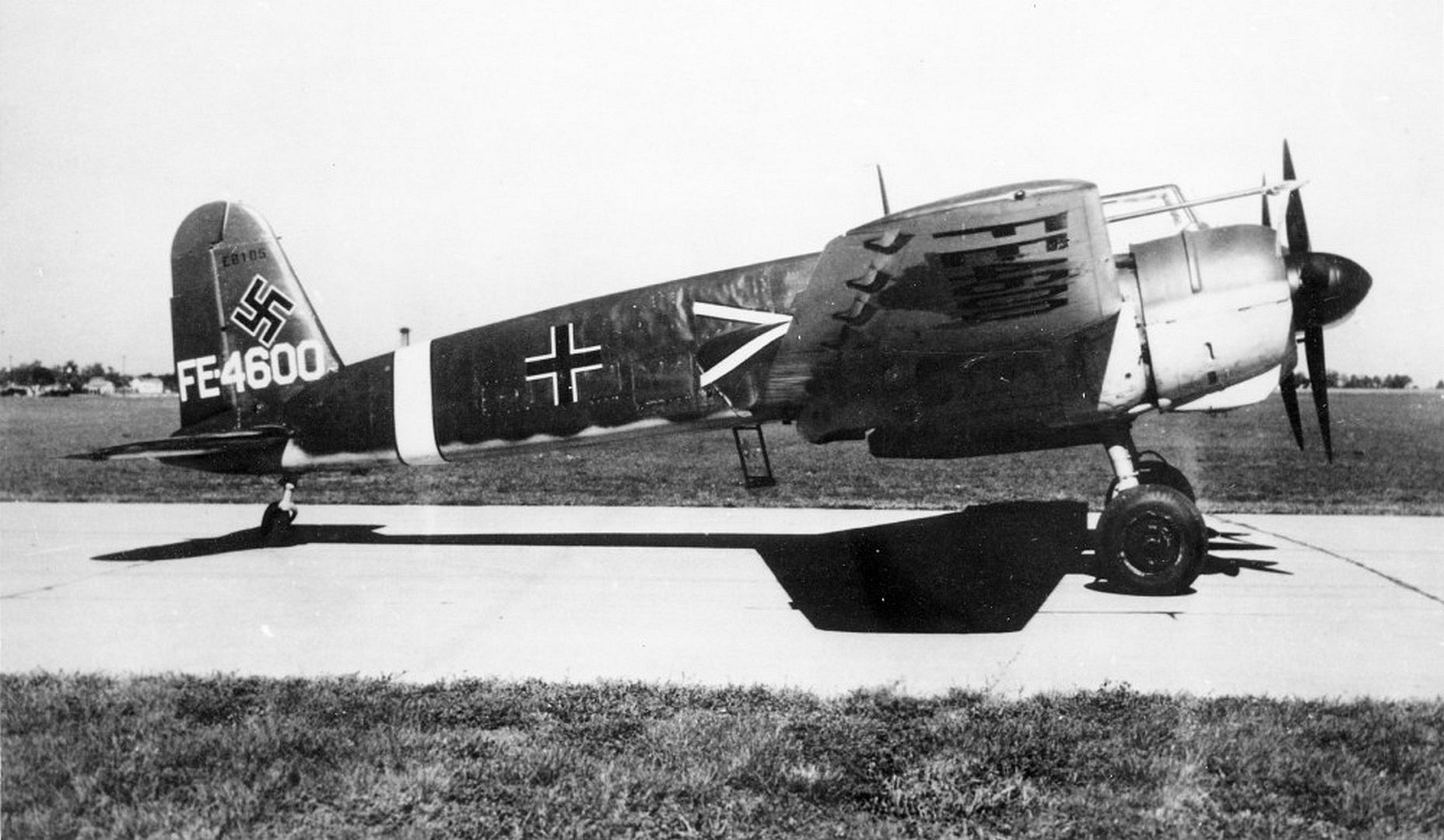

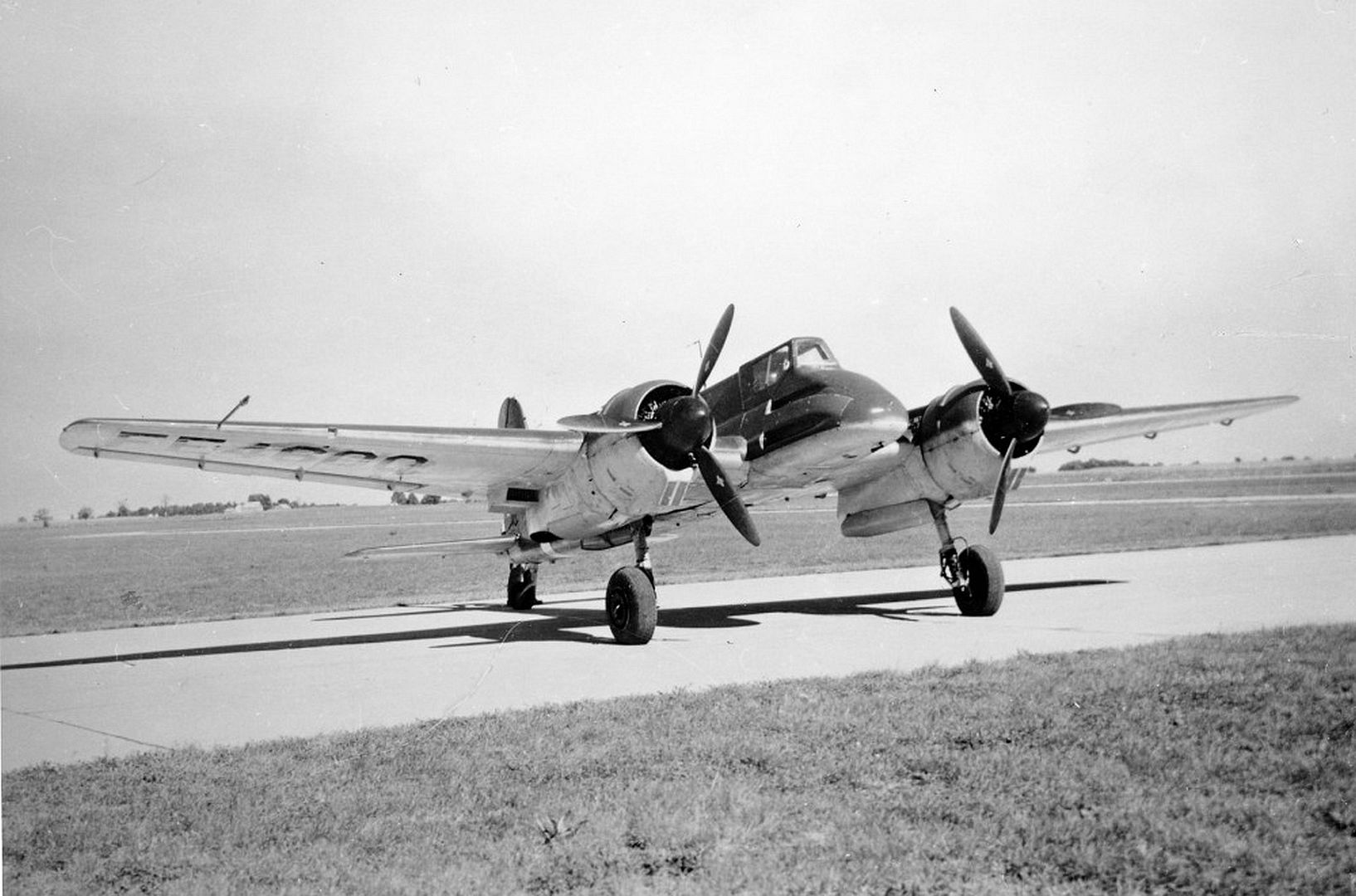

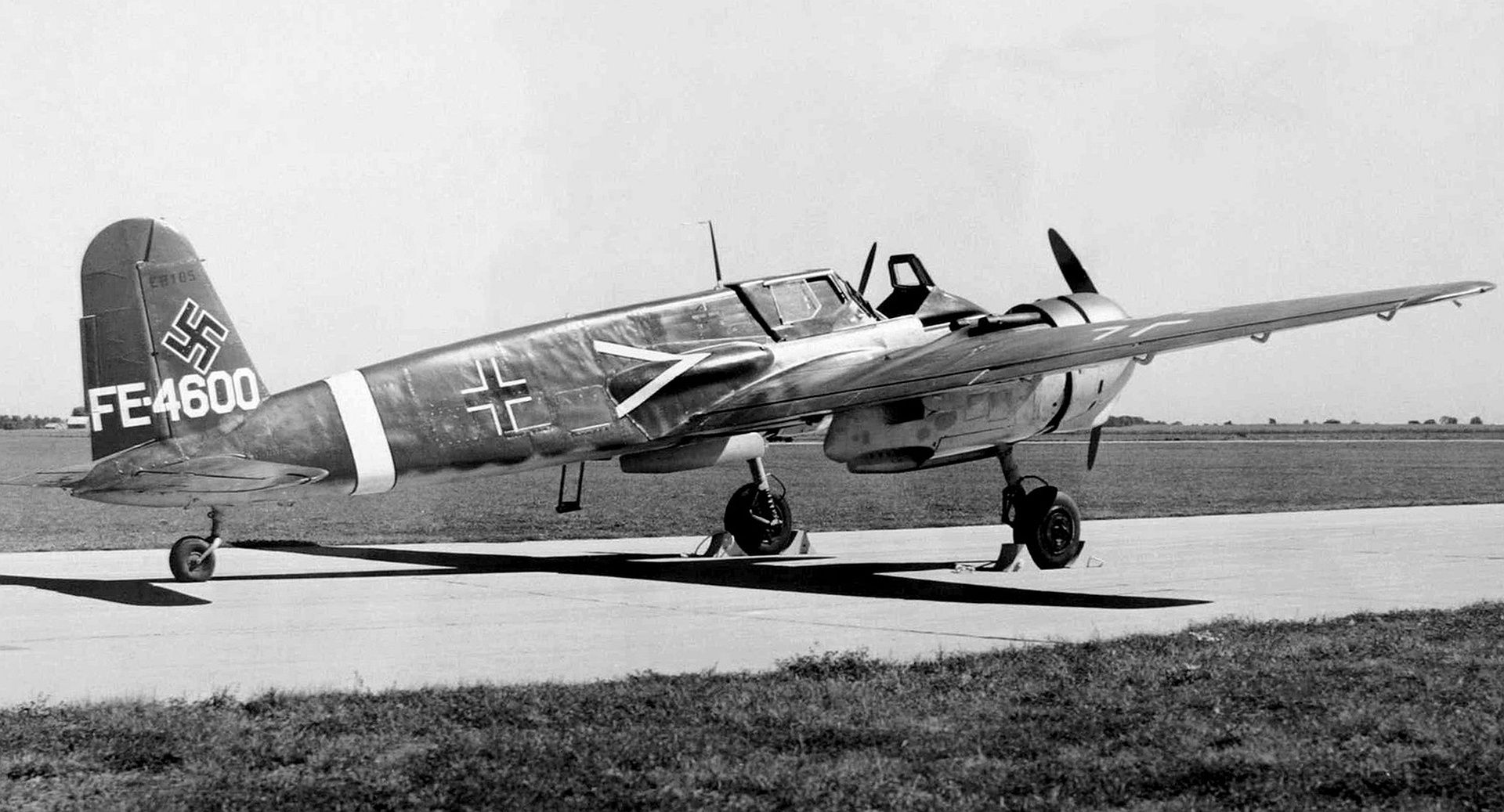

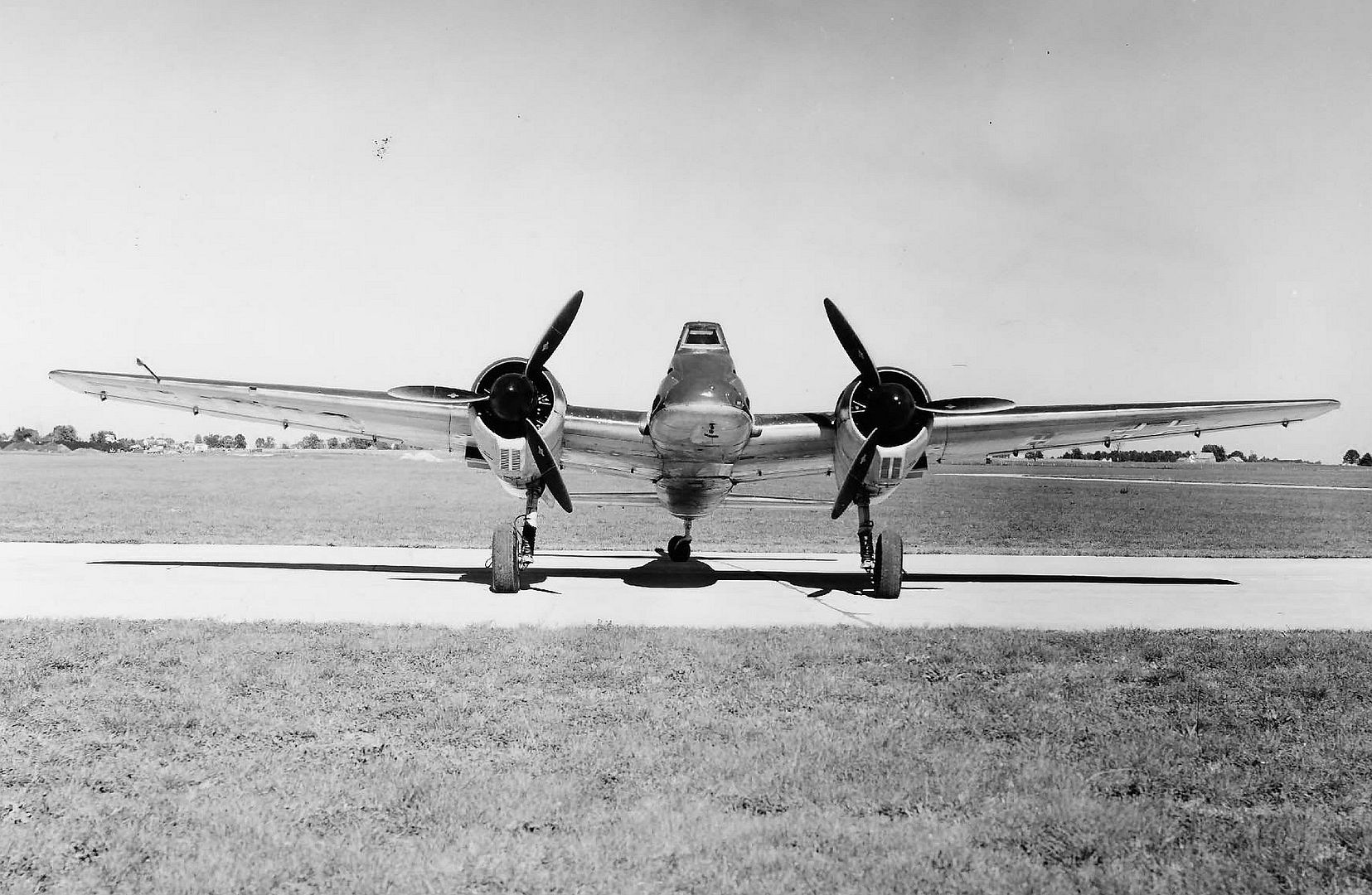

    Henschel Hs 129B FE4600

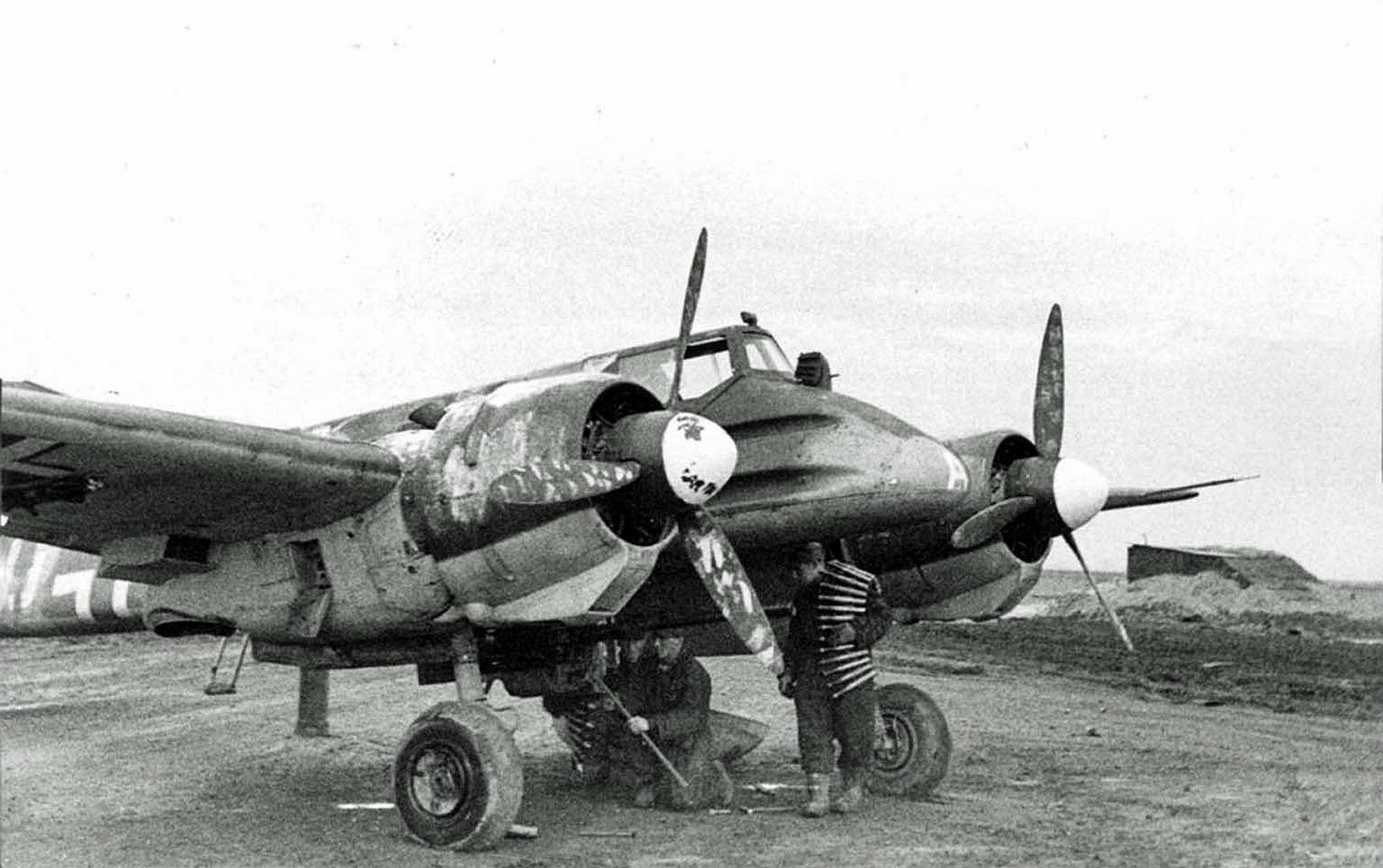

    Henschel Hs 129B Arming
    129 Attack Aircraft
     Tunis Mai 1943

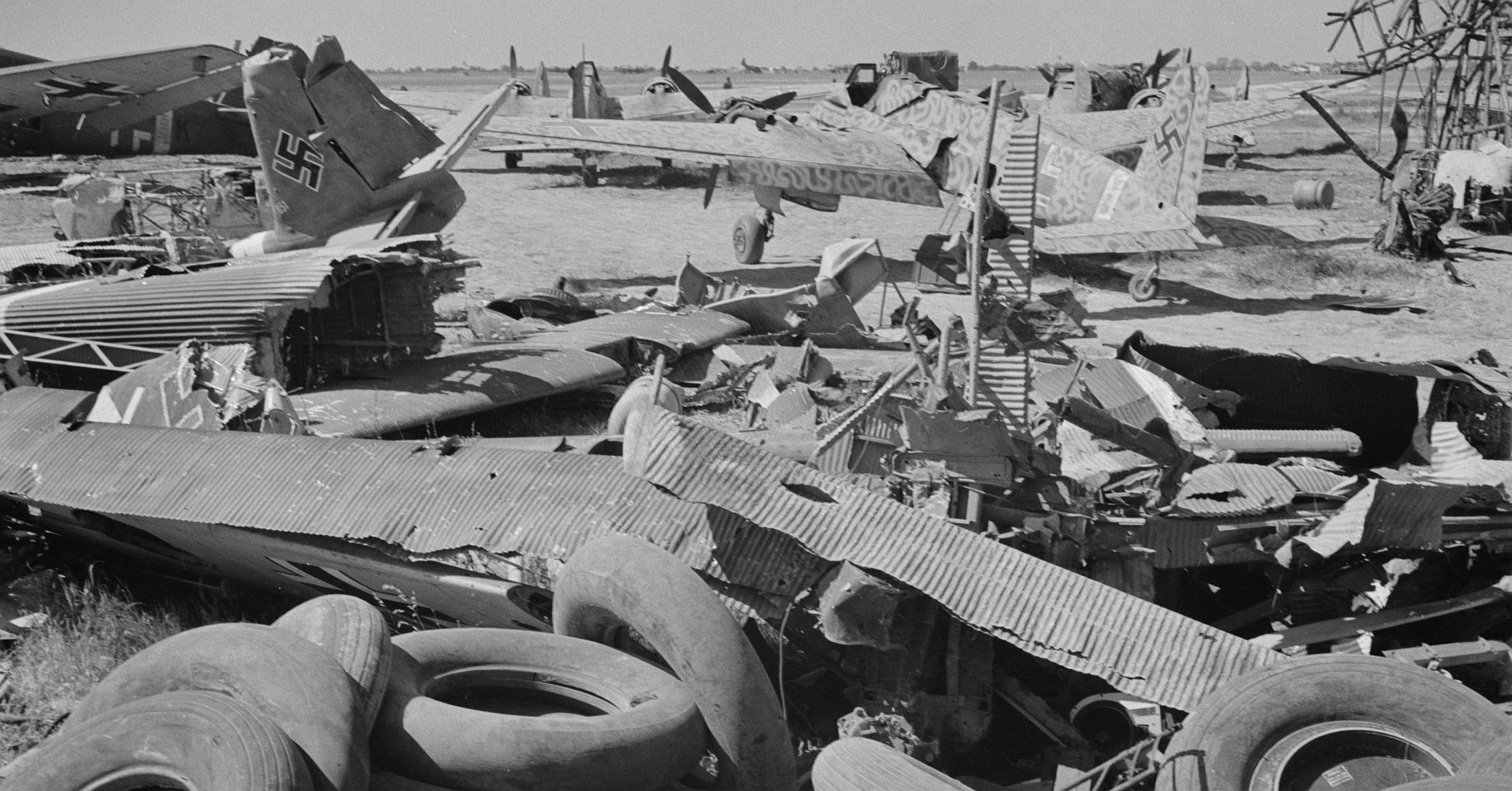

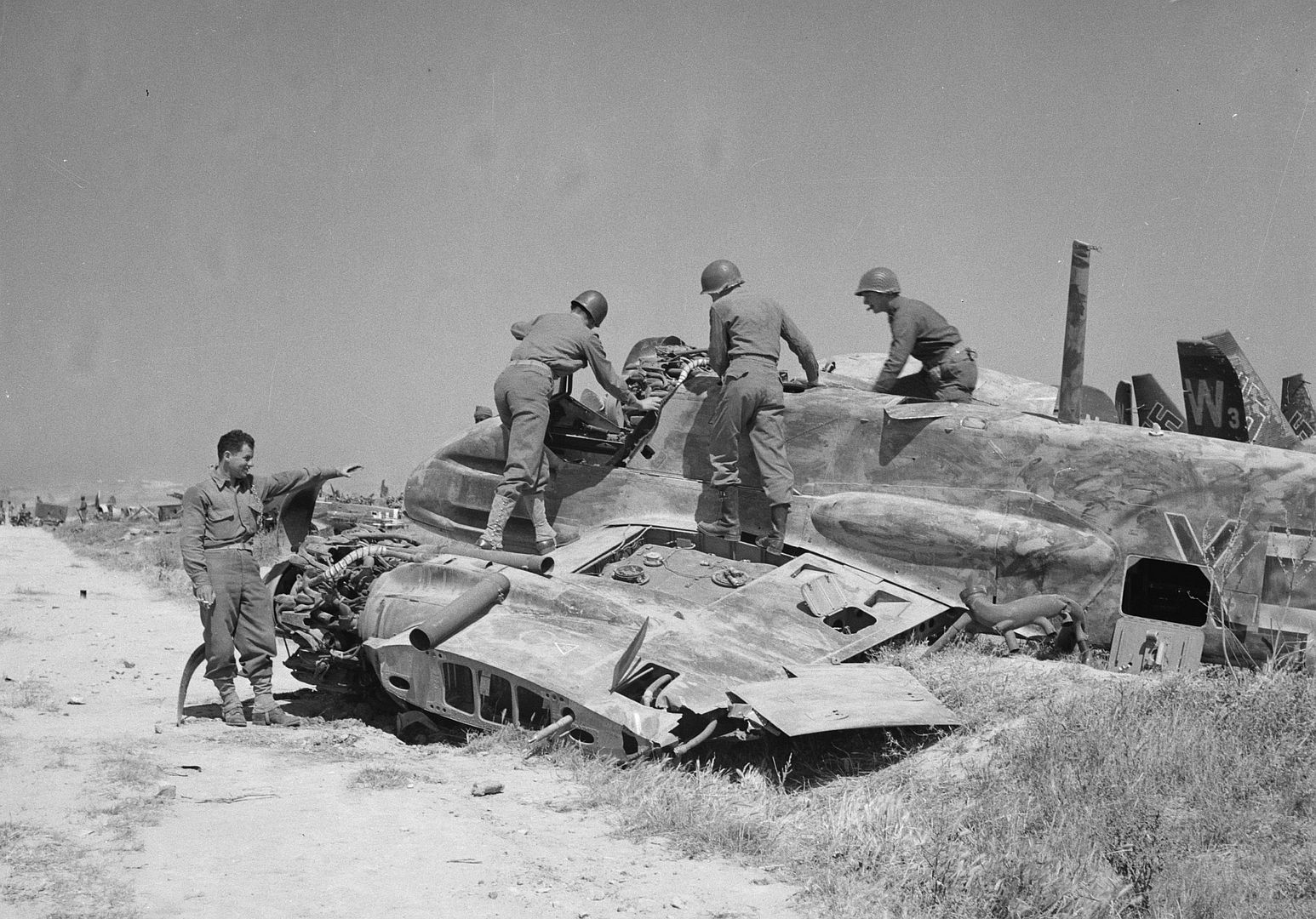

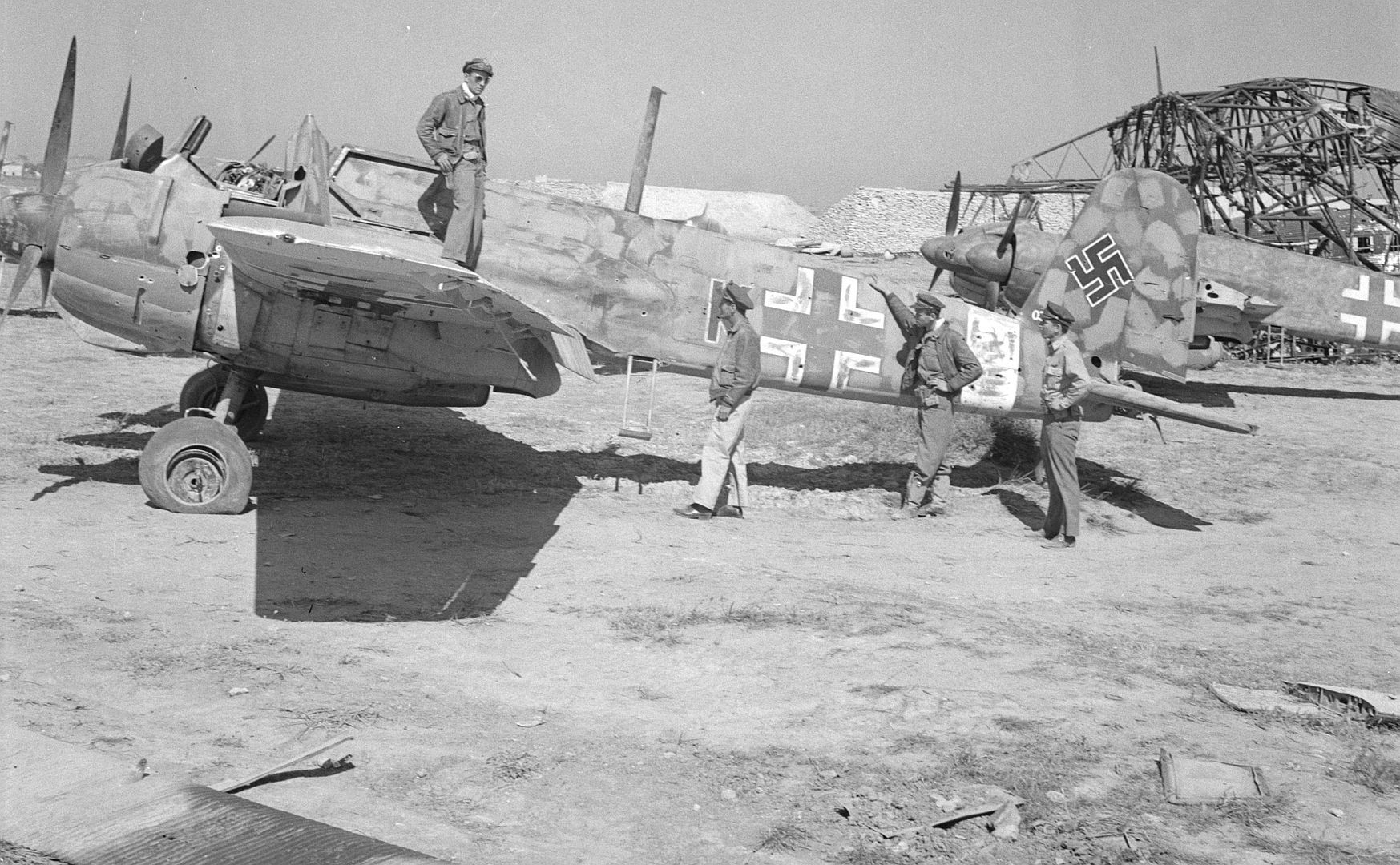

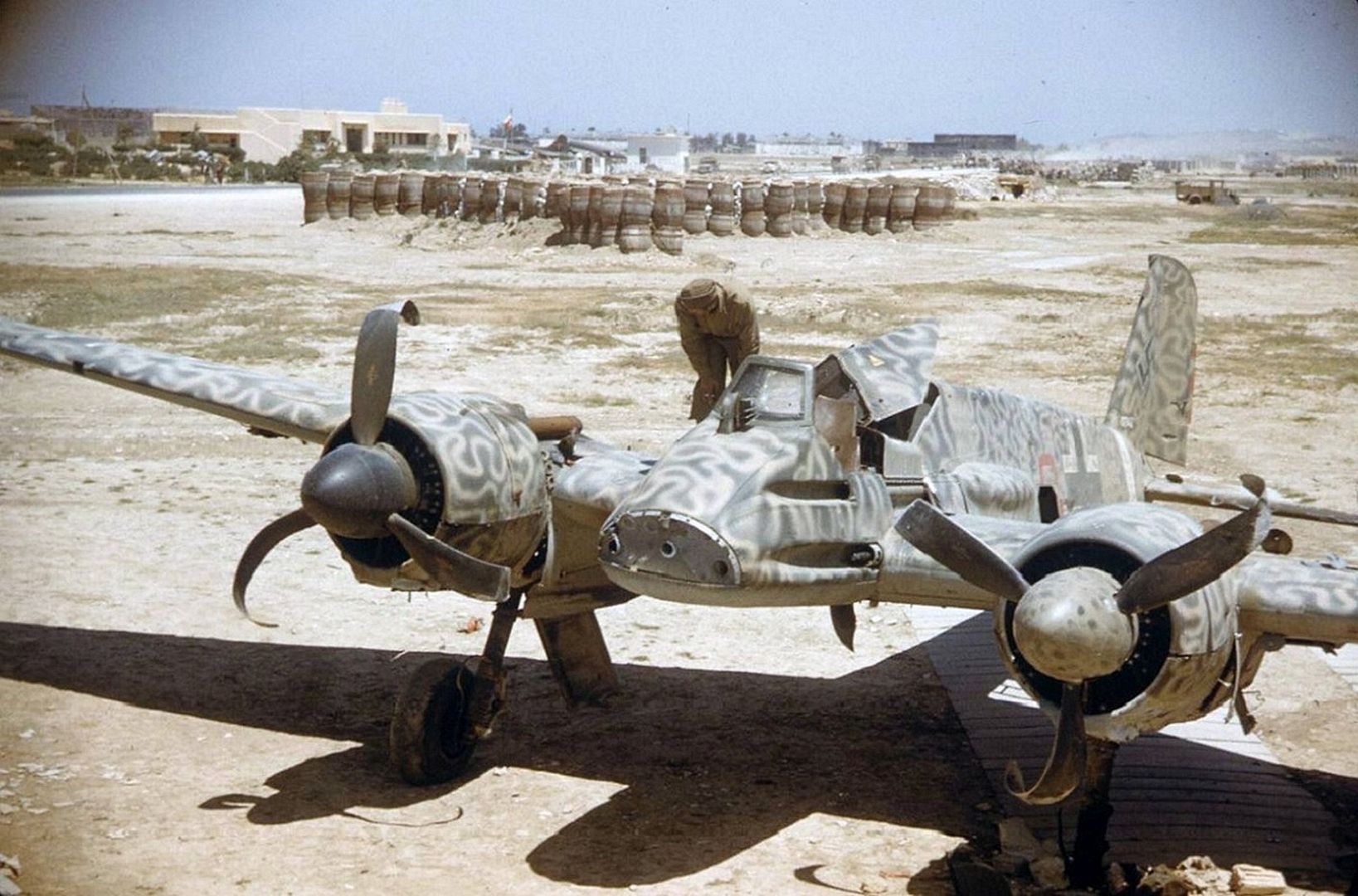

    Hs 129Bs 2 El Aouiana May1943
    Specifications (Hs 129B-2)
    General characteristics
    Crew: 1
    Length: 9.75 m (32 ft 0 in)
    Wingspan: 14.2 m (46 ft 7 in)
    Height: 3.25 m (10 ft 8 in)
    Wing area: 29 m2 (310 sq ft)
    Empty weight: 4,020 kg (8,863 lb)
    Max takeoff weight: 5,250 kg (11,574 lb)
    Powerplant: 2 × Gnome-Rhône 14M-4/-5 14-cylinder air-cooled radial engine, 515 kW (691 hp)700 PS each [4] for take-off
    Propellers: 3-bladed Ratier constant speed propeller, 2.6 m (8 ft 6 in) diameter
    Maximum speed: 407 km/h (253 mph, 220 kn) at 3,830 m (12,570 ft)
    Cruise speed: 315 km/h (196 mph, 170 kn) at 3,000 m (9,800 ft)
    Range: 690 km (430 mi, 370 nmi)
    Service ceiling: 9,000 m (30,000 ft)
    Rate of climb: 8.1 m/s (1,590 ft/min)
    Guns: ** 2 × 7.92 mm (0.323 in) MG 17 machine guns, later models from 1943 to 1944 replaced the MG 17s with 2 × 13 mm (.51 in) MG 131 machine guns
    2 × 20 mm MG 151/20 cannon or
    a 30 mm (1.181 in) MK 101 cannon or MK 103 cannon in a conformally mounted gun pod (B-2/R-2).
    Bombs: ** 2 × 50 kg (110 lb) bombs on underwing hardpoints
    4 × 50 kg (110 lb) fragmentation bombs on belly racks
