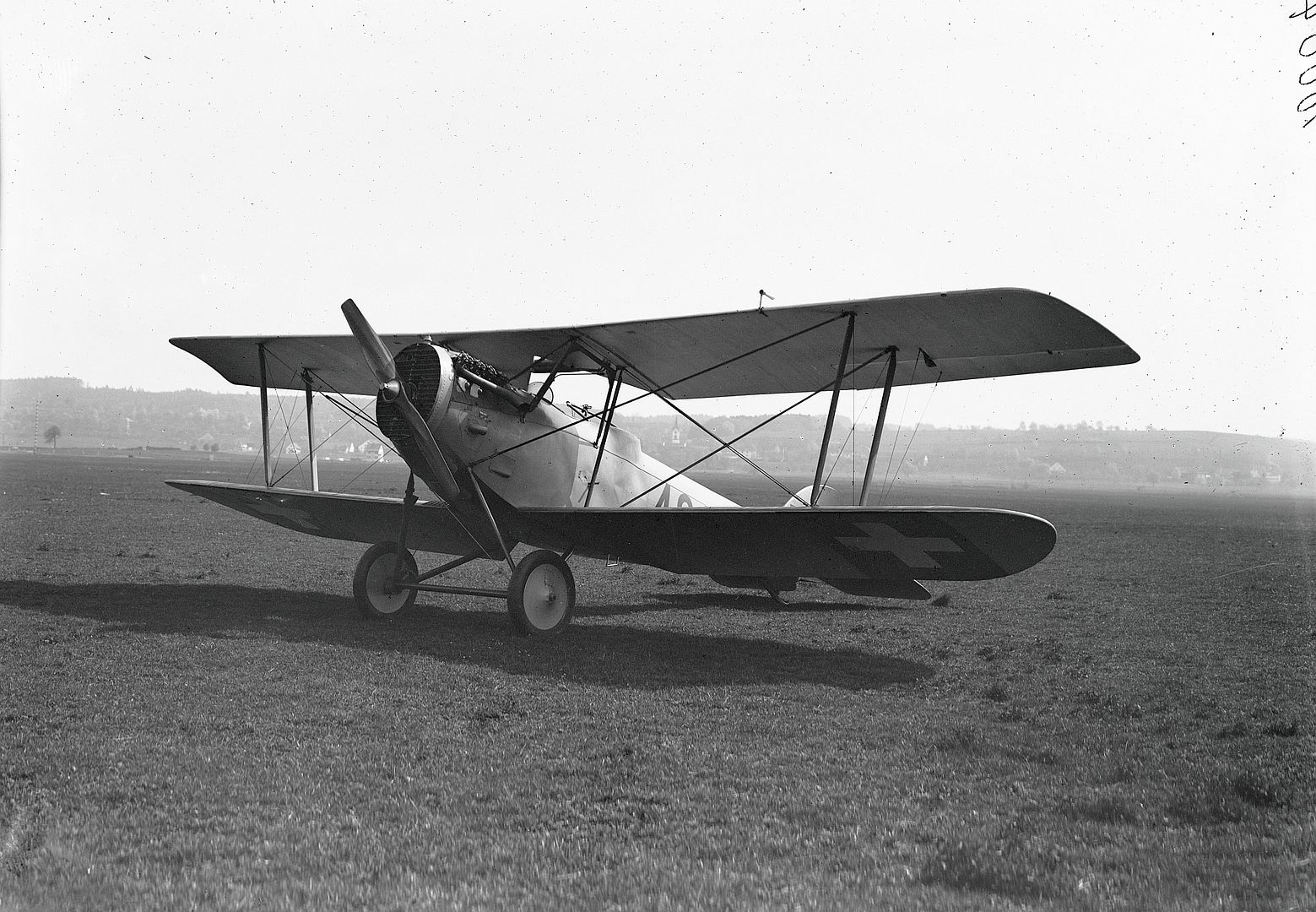

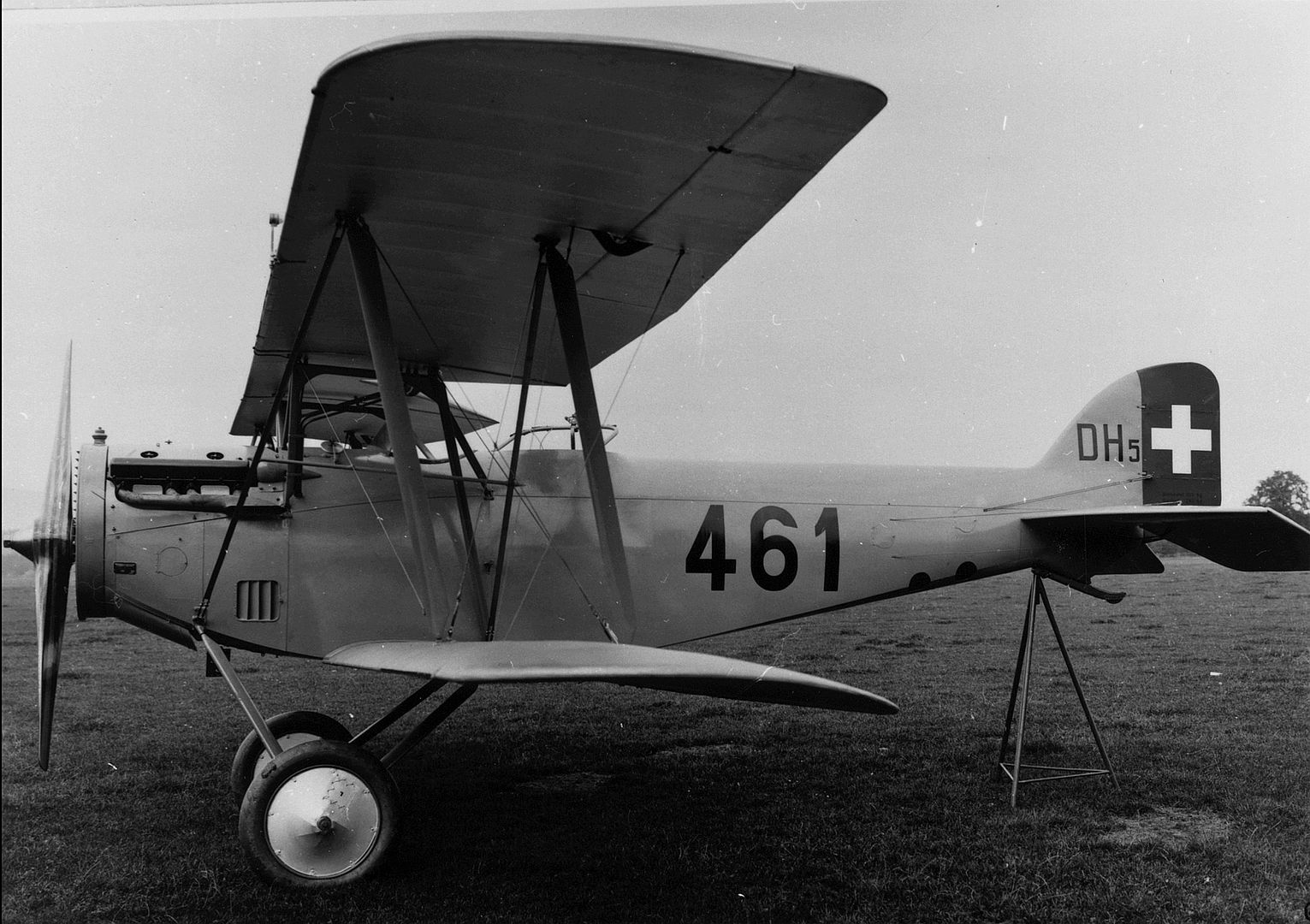

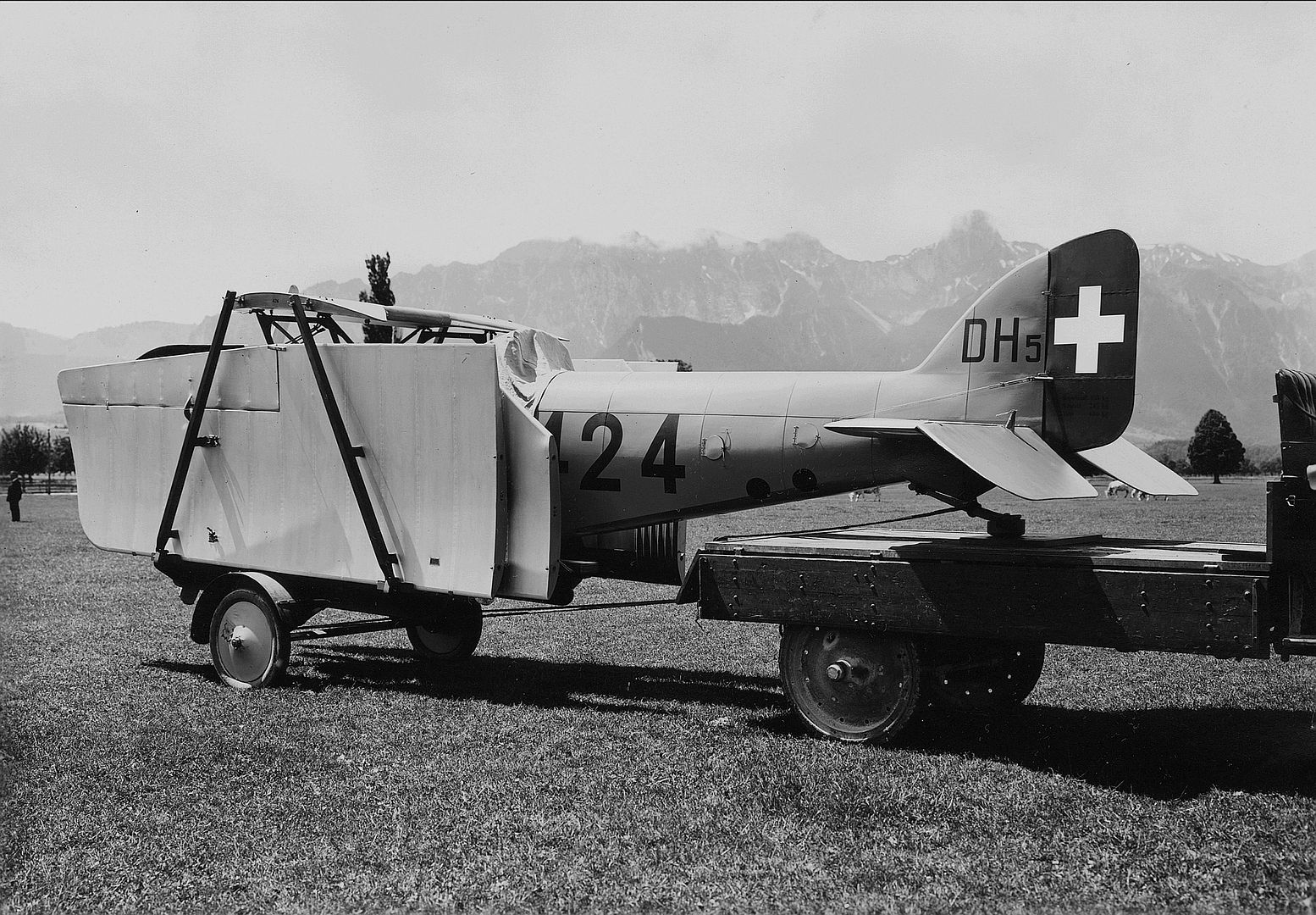

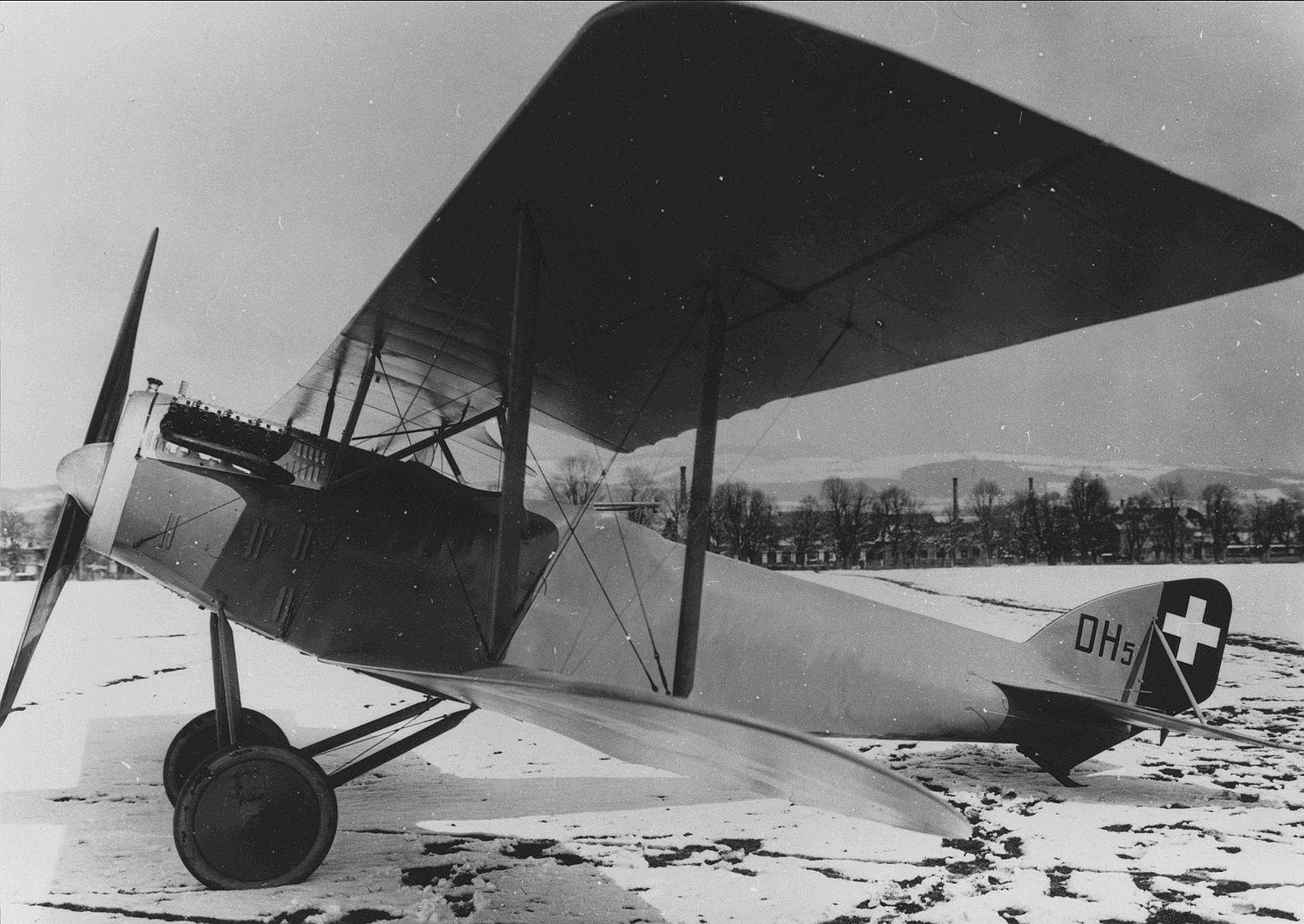

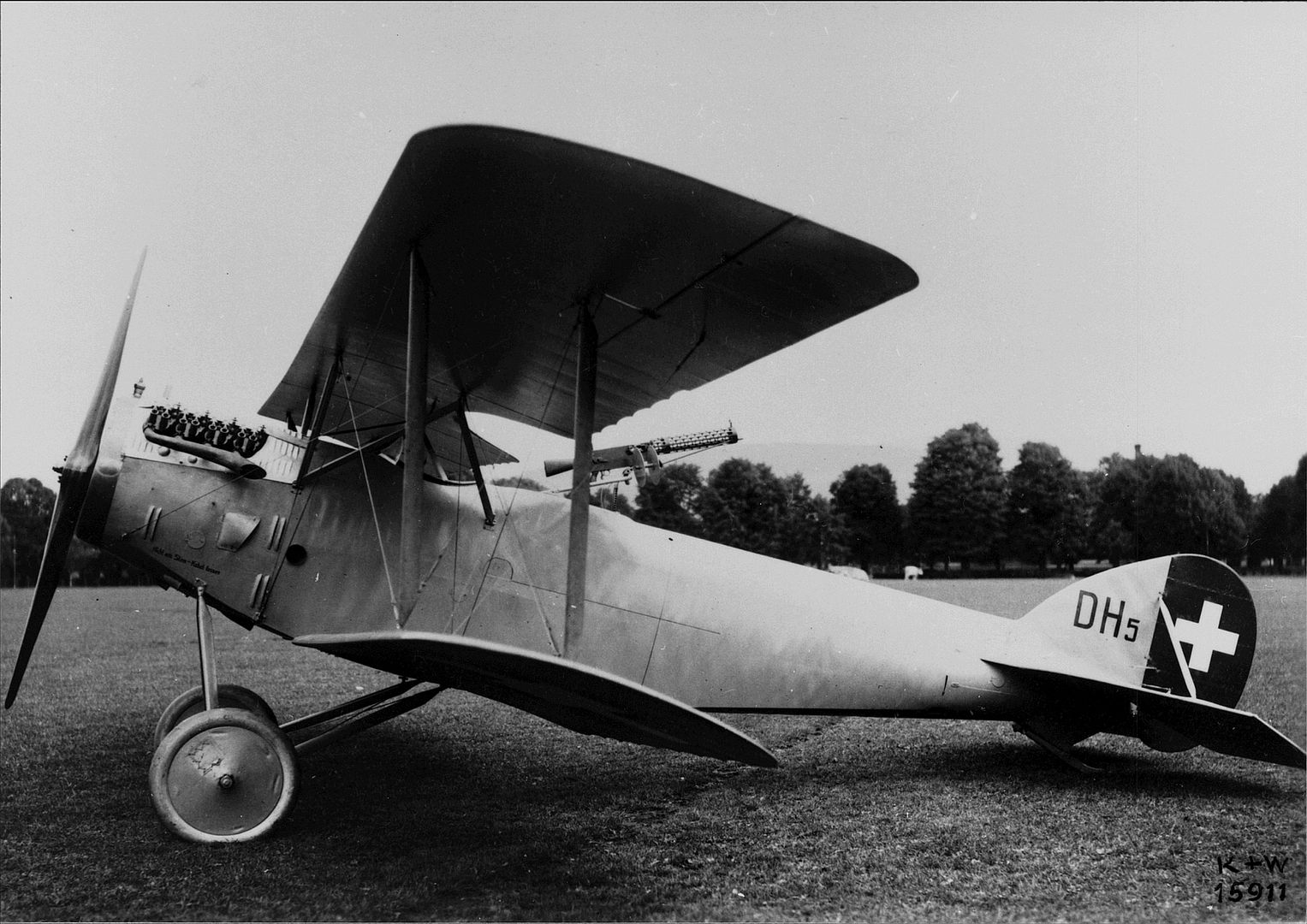

The Häfeli DH-5 was a 1910s Swiss two-seat reconnaissance aircraft, built by the aircraft department of the Federal Construction Works (Eidgenoessische Konstruktionswerkstaette, K + W) at Thun, Switzerland.
Development and design
The Häfeli DH-5 was a two-seat reconnaissance aircraft designed by August Häfeli.

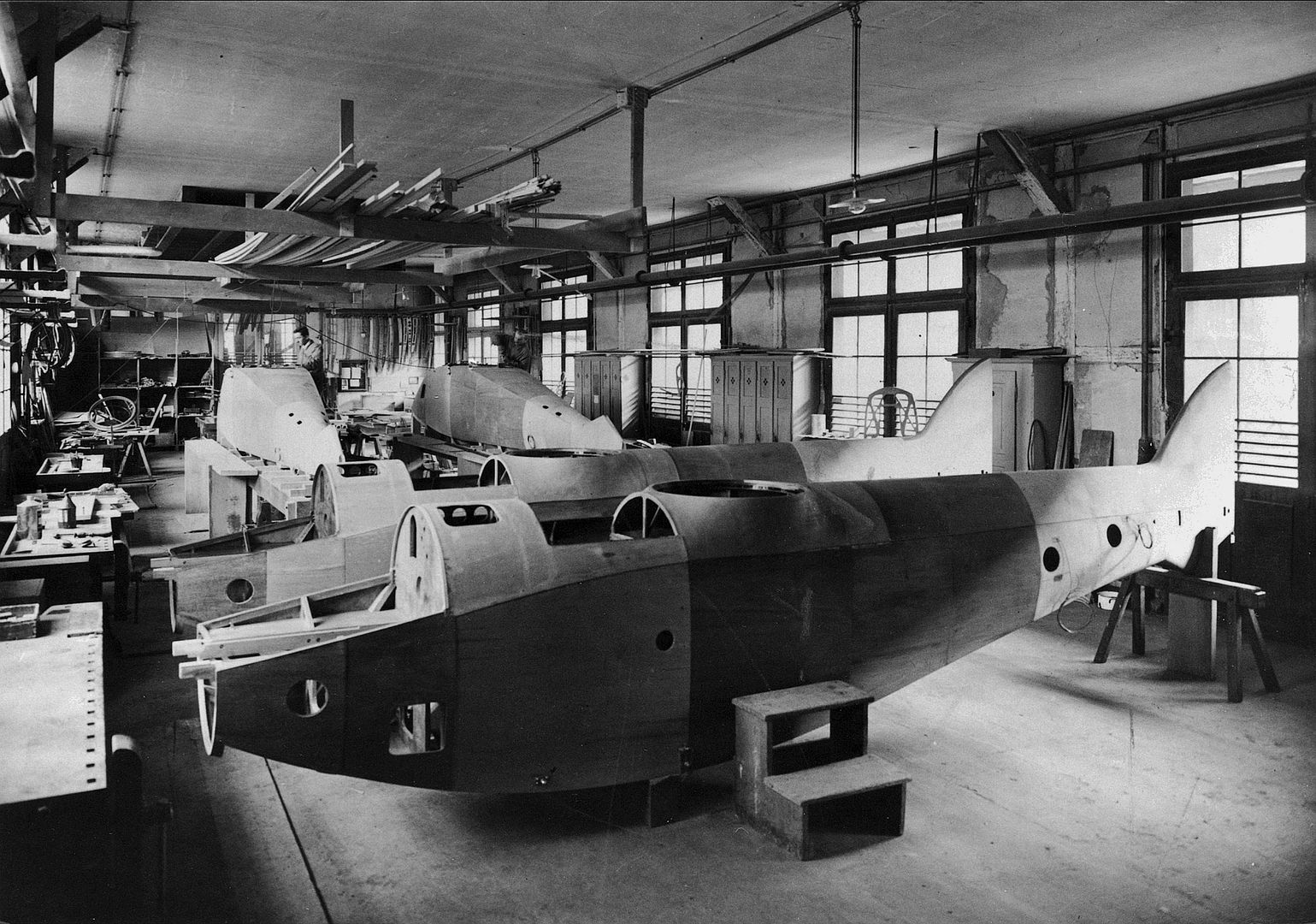

It was a single-bay biplane of wood and fabric construction. The aircraft was powered by a 180 hp (134 kW) LFW I engine produced by the Swiss Locomotive and Machine Works. Test flying of the prototype commenced in March 1919 and 39 were ordered. Some aircraft were later modified with Handley Page slats. A second batch of 20 aircraft were powered by a 200 hp (149 kW) LFW II engine. A further batch of 20 aircraft designated the DH-5A used the LFW III engine.
Operational history

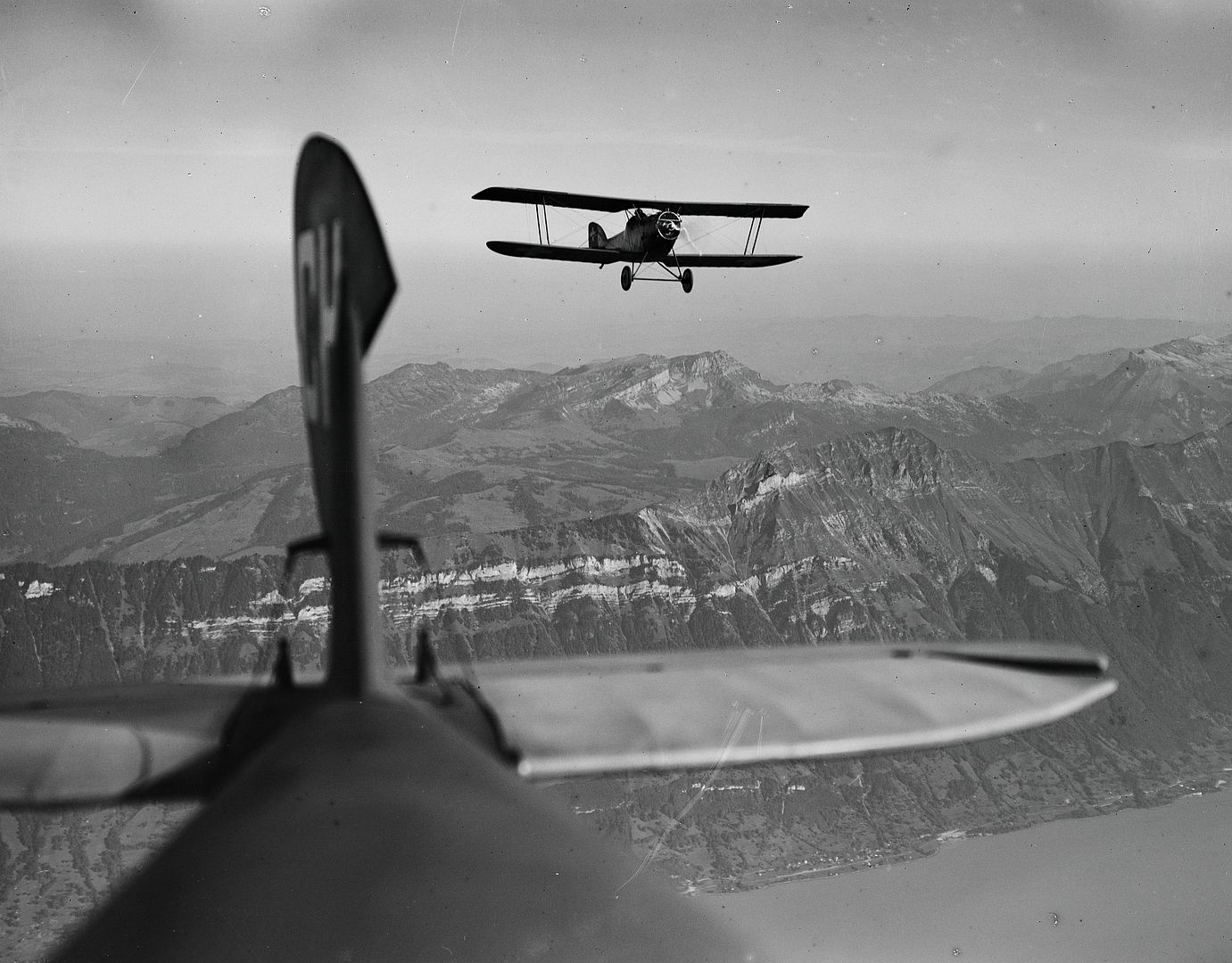

The DH-5 entered service in 1922 and was not withdrawn from service until 1940.
Variants

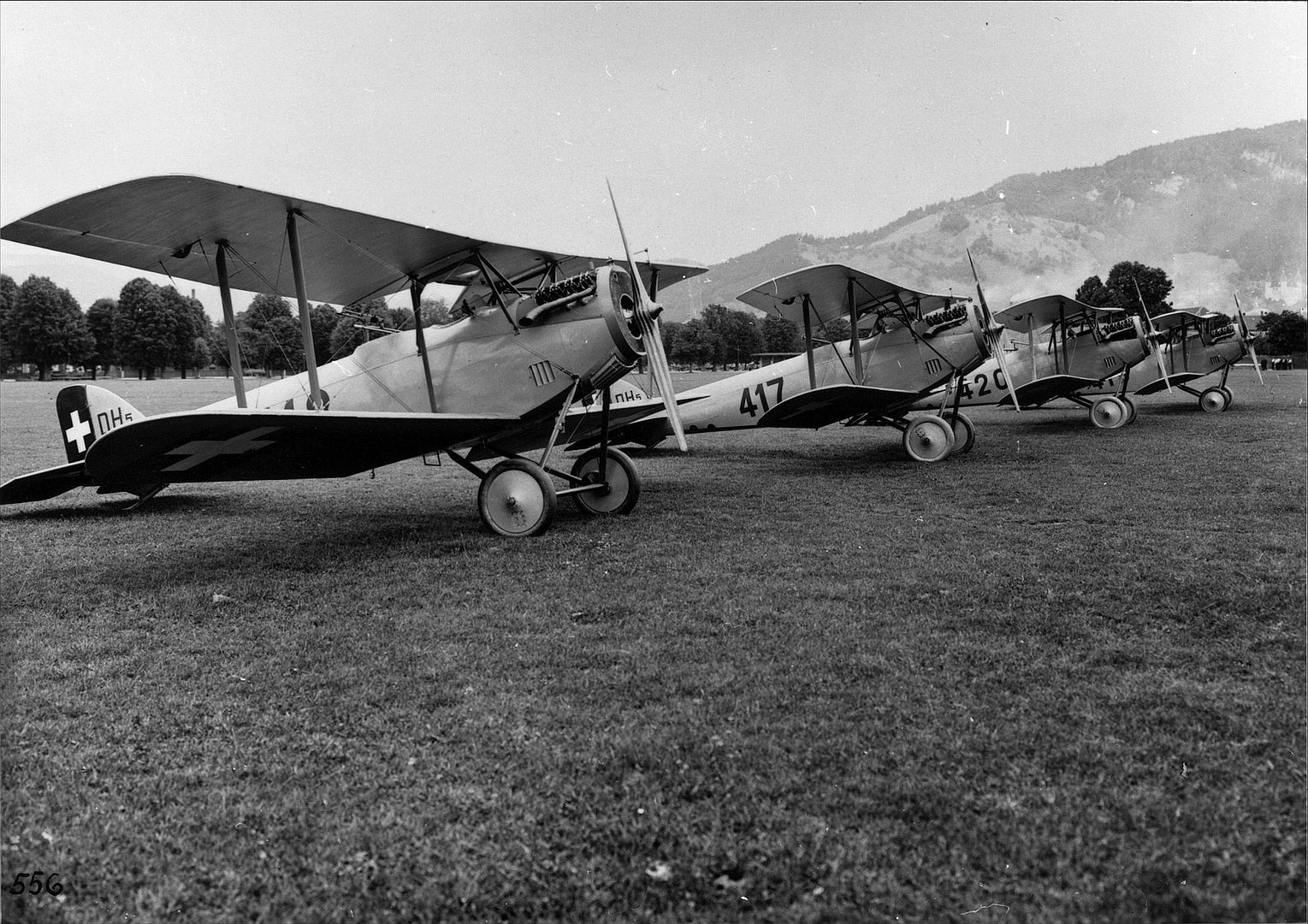

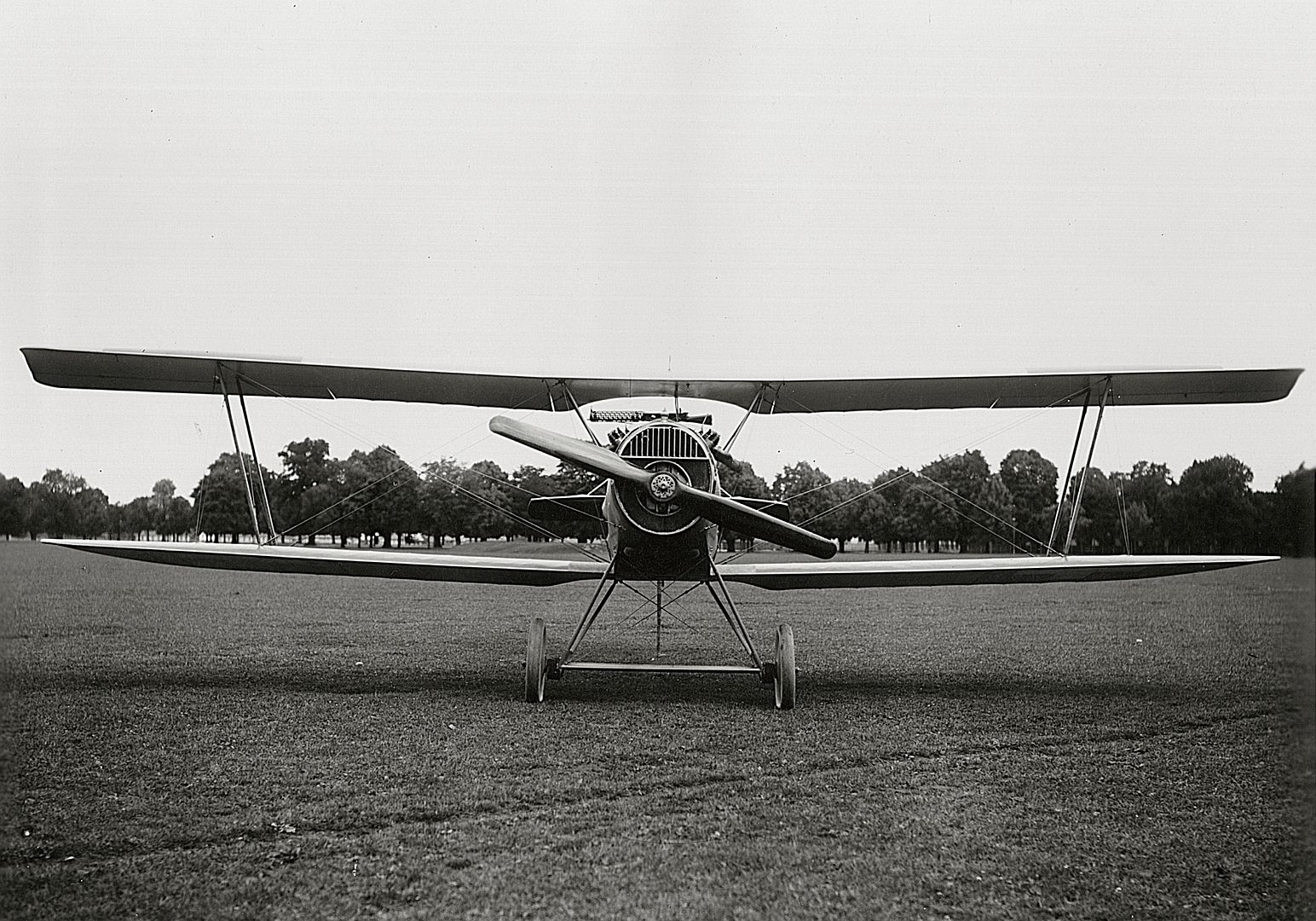

DH-5
Initial production version with either the LFW I or LFW II engine.

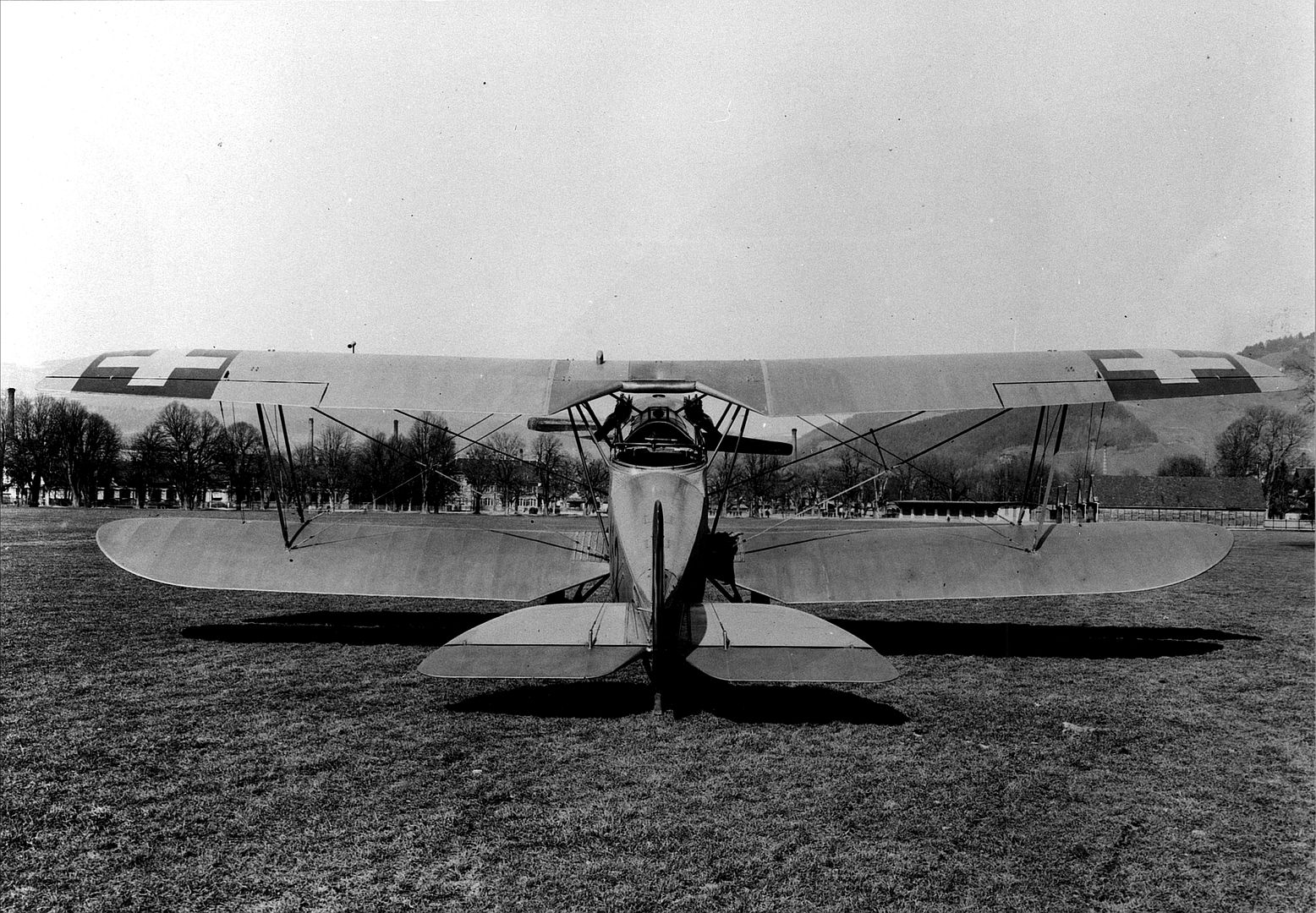

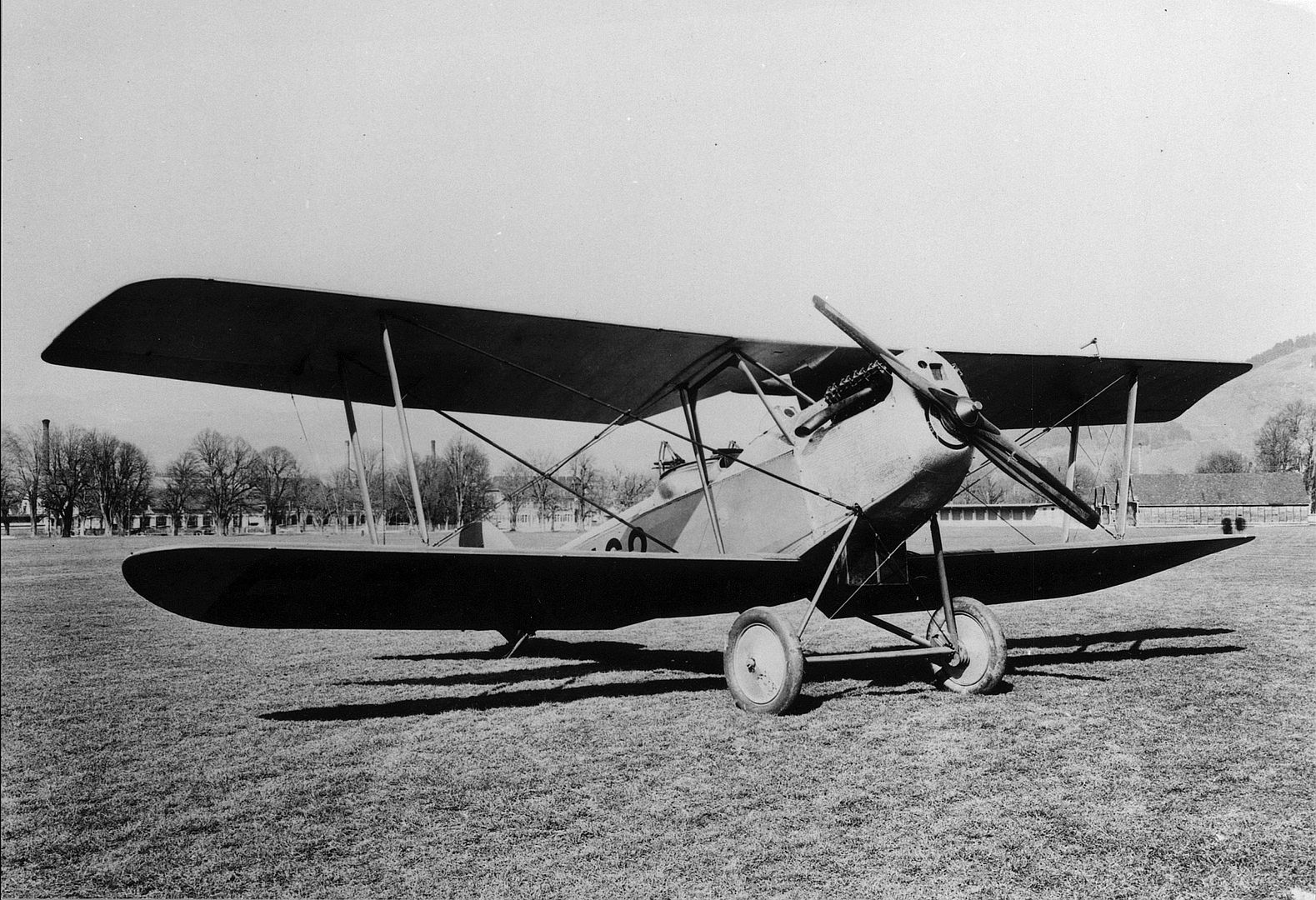

DH-5A
Version with a 220 hp (164 kw) LFW III engines, survivors were modified at Thun in 1932 with Handley Page slats and changes to allow crew to wear parachutes.

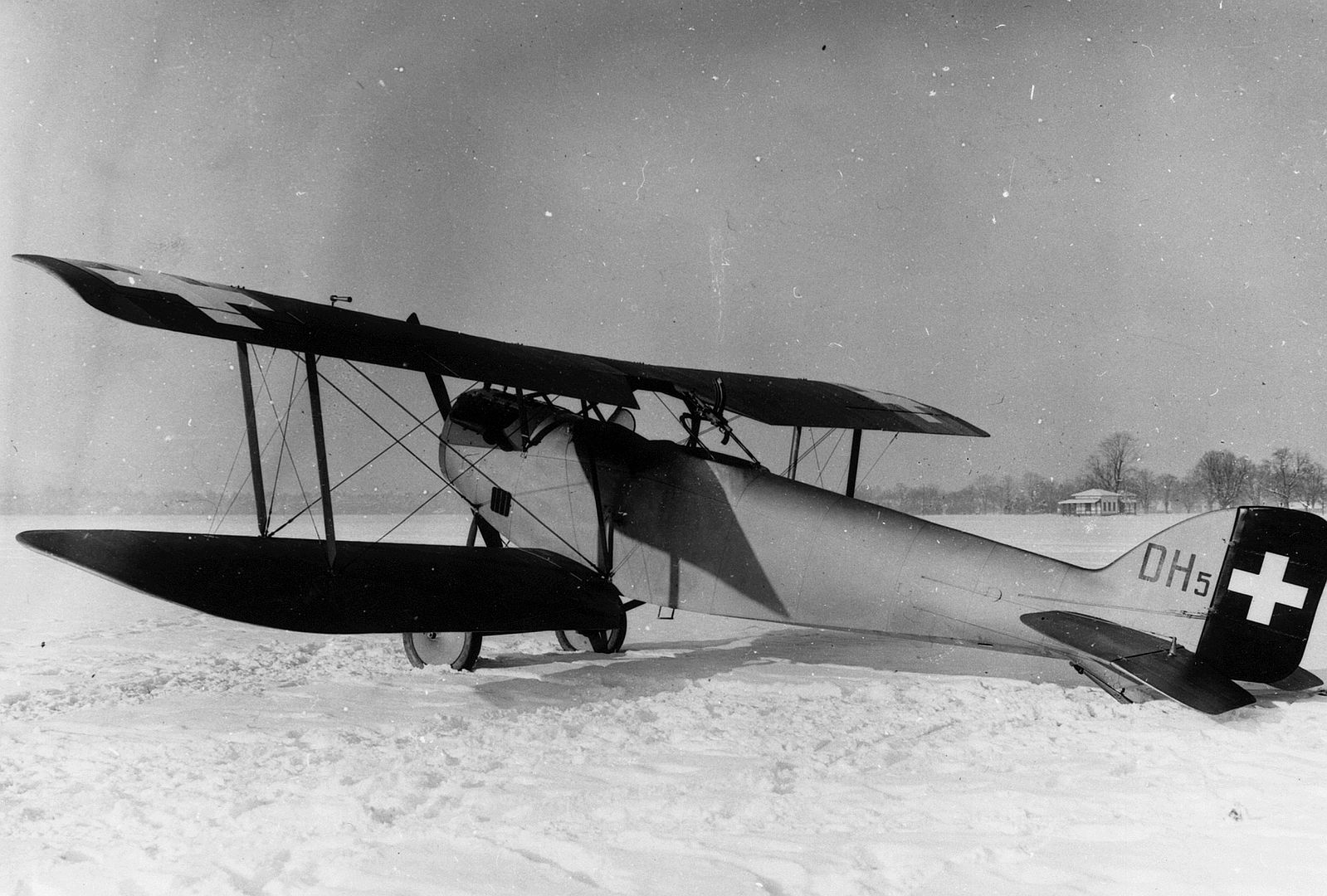

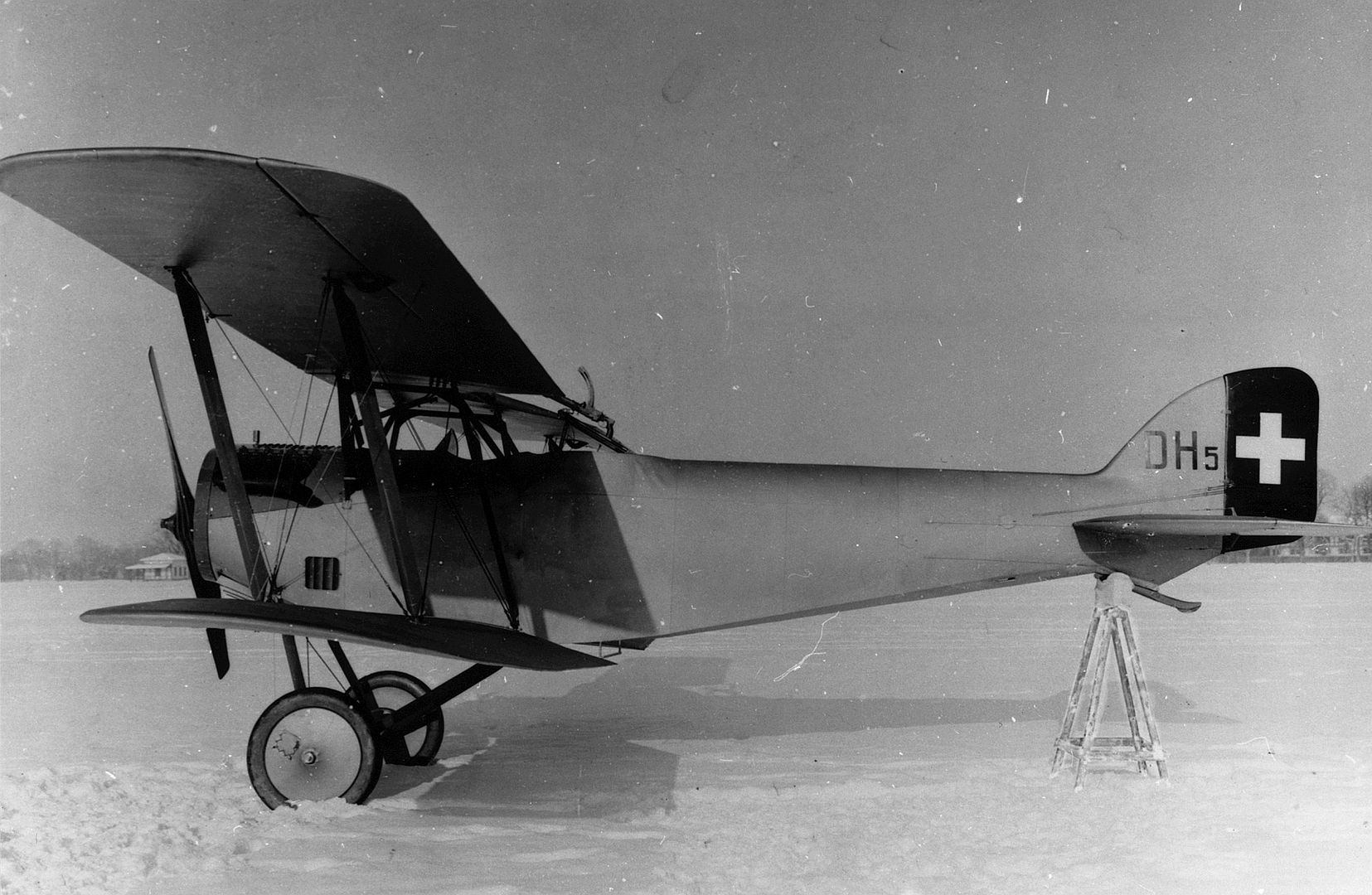

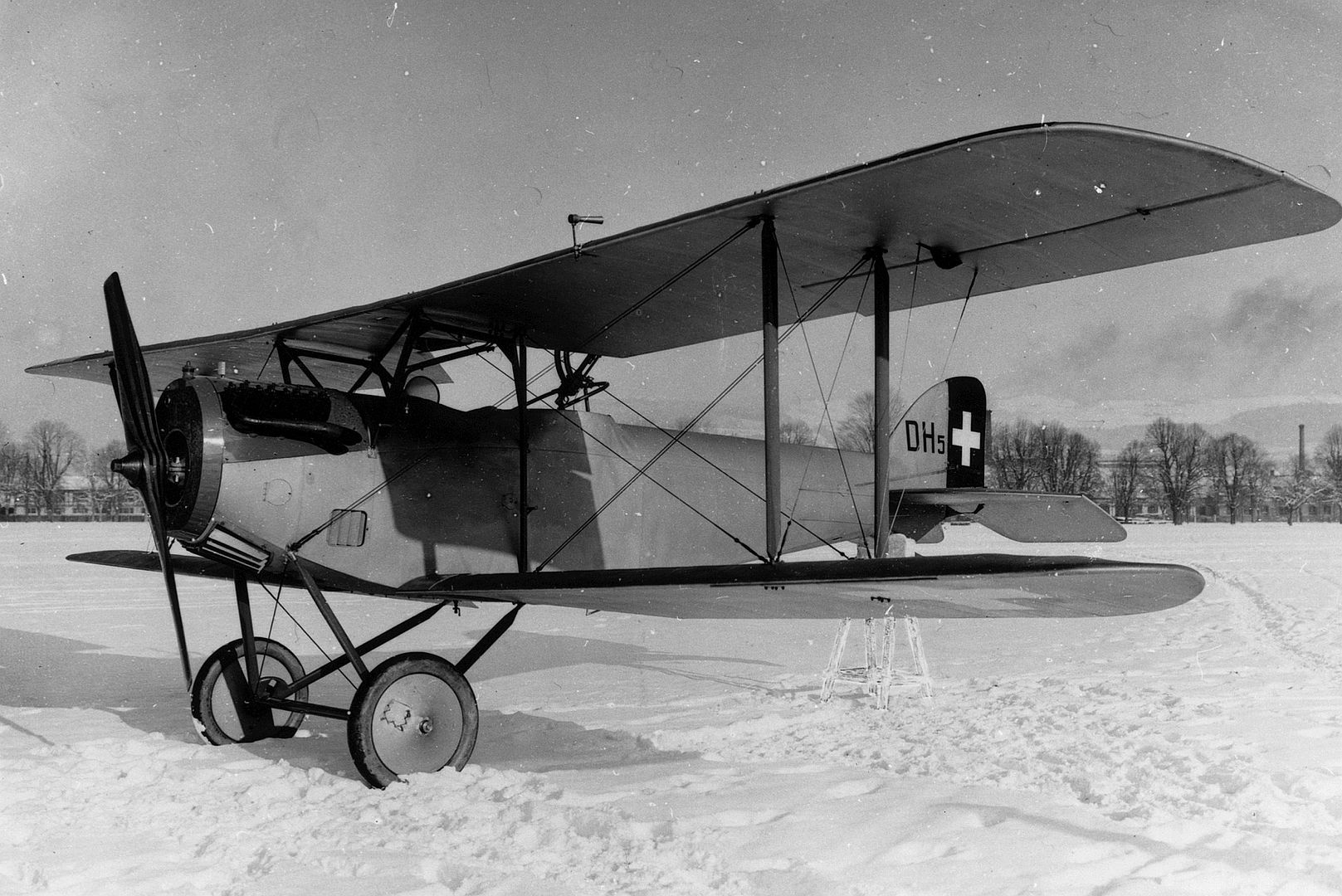

DH-5X
Trials aircraft powered by a Hispano-Suiza HS-42 (8Fb) engine imported from France. The aircraft was not ordered into production due lack of availability of the engines and the DH-5X crashed in 1933.



Specifications (DH-5A)
General characteristics
Crew: 2
Length: 7.6 m (24 ft 11 in)
Wingspan: 12 m (39 ft 4 in)
Height: 3.1 m (10 ft 2 in)
Wing area: 31.4 m2 (338 sq ft)
Empty weight: 859 kg (1,894 lb)
Gross weight: 1,271 kg (2,802 lb)
Powerplant: 1 × LFW III V-8 water-cooled piston engine, 160 kW (220 hp)
Propellers: 2-bladed fixed-pitch propeller
Performance
Maximum speed: 180 km/h (110 mph, 97 kn)
Range: 480 km (300 mi, 260 nmi)
Service ceiling: 5,600 m (18,400 ft)
Armament
one fixed forward-facing machine-gun
one pivoted machine-gun in the rear cockpit
