• The F-100B was originally going to be the follow-on to the F-100A. It was pictured as a faster version of the F-100A day fighter, optimized to take maximum advantage of the power offered by the J57 jet engine.

    The F-100B project began in 1953 as company design NA-212 for an improved F-100A. On March 4, 1952, North American Aviation management had asked their design team for an estimate of engineering requirements for the F-100B. The F-100B retained the original swept wing planform of the F-100A but had a thinner wing cross section with a 5 percent thickness/chord ratio rather than the 7 percent of the F-100A. An upgraded J57 engine was provided, and the aircraft was to be fitted with a variable-area inlet duct and a convergent-divergent exhaust nozzle. Total thrust of this new engine was to be 16,000 pounds. Dual landing-gear wheels were to be provided which would make operations from unprepared airfields possible. The fuselage was to be area-ruled and was to have an increased fineness ratio. The fuel load was to be carried in integral wing tanks, no provisions being made for the carrying of external fuel tanks. The F-100B was to expected to be approximately the same size and weight as the F-100A, and with the increased power and the aerodynamic refinements that would be made available, a maximum speed of Mach 1.80 at high altitude was anticipated. Production was expected to begin in 1955.

    At the same time, North American began to study the feasibility of adapting the Super Sabre as an all-weather interceptor. The project became known as the "F-100I" (I for *Interceptor*) or "F-100BI", although these designations were not official USAF designations. This aircraft was similar in overall configuration to the F-100B except that it had a modified cockpit and was fitted with a nose radome. In order to accommodate the radome, the forward fuselage had to be redesigned so that it had an undernose variable-area air intake. Provision were made for underwing drop tanks, and the wing leading edges were to be heated to prevent icing. An all-rocket armament was to be fitted. The F-100BI was intended to bear much the the same relation to the F-100A as the F-86D did to the F-86A.

    On October 20, 1953, the factory designation NA-212 was assigned to the project. Work began on wind-tunnel studies and a detailed cockpit mock up was built. Work was started on a full aircraft mock up.

    In November of 1953, North American started to give some consideration to adapting the NA-212 to a fighter-bomber role. Six hardpoints were added underneath the wing, and the wing structure, controls, and cockpit were revised accordingly. Single-point refueling capability was provided and the windshield and canopy were revised to improve the pilot's view. A retractable tail skid was installed and the flight control system was upgraded by the addition of pitch and yaw dampers.

    Neither the F-100B nor the F-100BI attracted all that much interest on the part of the Air Force. Consequently, on January 15, 1954, the program was cut back drastically at the request of NAA president Lee Atwood. Plans to undertake full production were abandoned, and the program was scaled back to a comprehensive engineering study.

    On April 16, NAA decided to settle on the general configuration of the F-100B as being basically that of the F-100BI interceptor. However, later that month, NAA learned that the Air Force was interested in the fighter-bomber configuration of the NA-212. On May 16, 1954, North American directed that all work on the F-100B interceptor project be terminated and that all efforts now be concentrated on the fighter-bomber adaptation. The nose radome and the chin intake of the interceptor version were, however, to be retained.

    In the meantime, NAA engineers had discovered that low-speed handling properties could be improved and landing speeds lowered by about 30 mph if an inboard blown flap were used for boundary layer control. These were incorporated into the design at an early stage. The F-100A had been designed without any wing flaps at all.

    Among the changes needed to adapt the F-100B as a fighter-bomber was the change from a 7.33 to an 8.67 load factor, the installation of a maneuvering autopilot, the mounting of an AN/APW-11A radar beacon, a Low-Altitude Bombing System (LABS), an AN/ALF-2 chaff dispenser, an AN/APS-54 radar warning system, a plotting board and a cockpit computer. Larger and heavier wheels and brakes had to be designed, and provision had to be made for electric fusing of external stores.

    On June 11, 1954, the USAF authorized a contract for 33 F-100B fighter bombers. On July 8, 1954, the Air Force notified NAA that the designation for the project had been officially changed to F-107A, the USAF concluding that since this aircraft was so vastly different from the original F-100A it deserved a completely new fighter designation. On August 4, 1954, the contract was cut back to only nine service test aircraft. USAF serials were to be 55-5118/5126.

    Late in 1954, the Air Force issued General Operational Requirement 68, calling for a tactical fighter-bomber and an air-superiority day and night fighter. North American apparently responded to this requirement, but it is not quite sure how the F-107A fits into GOR-68. In any case, work continued on the F-107A at a feverish pace. In the meantime, Pratt & Whitney had developed the J75 turbojet, a newer and more powerful adaptation of the J57. NAA enthusiastically embraced this engine as the power plant for the F-107A.

    North American engineers redesigned the vertical tail of the F-107A fighter-bomber as a single-piece, all-moving slab. A similar innovation was adopted for the North American A3J (later A-5) Vigilante carrier-based strategic bomber. A complex spoiler-slot-deflector system on the wings provided lateral control. The wing leading edge was similar to that of the F-100A and had automatically-actuated slats, but the wing trailing edge was made up entirely of tabbed and slotted flaps. There were no ailerons, lateral control being provided by a set of spoilers above and below the wing. The aircraft had an early fly-by-wire control system known as the Augmented Longitudinal Control System (ALCS). It used air data system inputs to provide a command of pitch rate. The major offensive load was to consist of a nuclear weapon carried semi-submerged in the fuselage belly on the centerline.

    Unfortunately, wind tunnel tests showed that there would be major problems with weapon release and separation caused by airflow interference from the nose radome and chin air intake. In order to correct this problem, it was decided to move the air intake from the nose to the top of the fuselage just behind the cockpit. This intake was fitted with a complex system of variable inlet ramps to adjust for optimal airflow to the engine at various speeds. A two-position (3.25 degrees and 12 degrees) engine inlet duct system was installed in the first two prototypes for the initial flight tests. This system incorporated a vertical wedge-shaped splitter in the middle of the intake, with four hydraulically-powered doors attached to the sides of the wedge inside the intake which would extend or contract as needed to adjust the intake throat area for optimal airflow to the engine. In the third prototype, the system was made fully automatic and the doors were continuously adjustable.

    The main landing gear was attached to the fuselage (rather than the wing as in the F-100) and retracted forwards into bays in the fuselage. The dual-wheeled forward landing gear retracted forwards into the fuselage. There was a retractable tail skid underneath the rear fuselage to prevent damage during inadvertent high-angle landings.

    The F-107A was to be equipped with the NAA Autonetics Division XMA-12 integrated fire control system in the nose. This system was to be capable of detecting airborne targets, selecting a victim, and calculating a lead pursuit course for attack with guns or rockets.

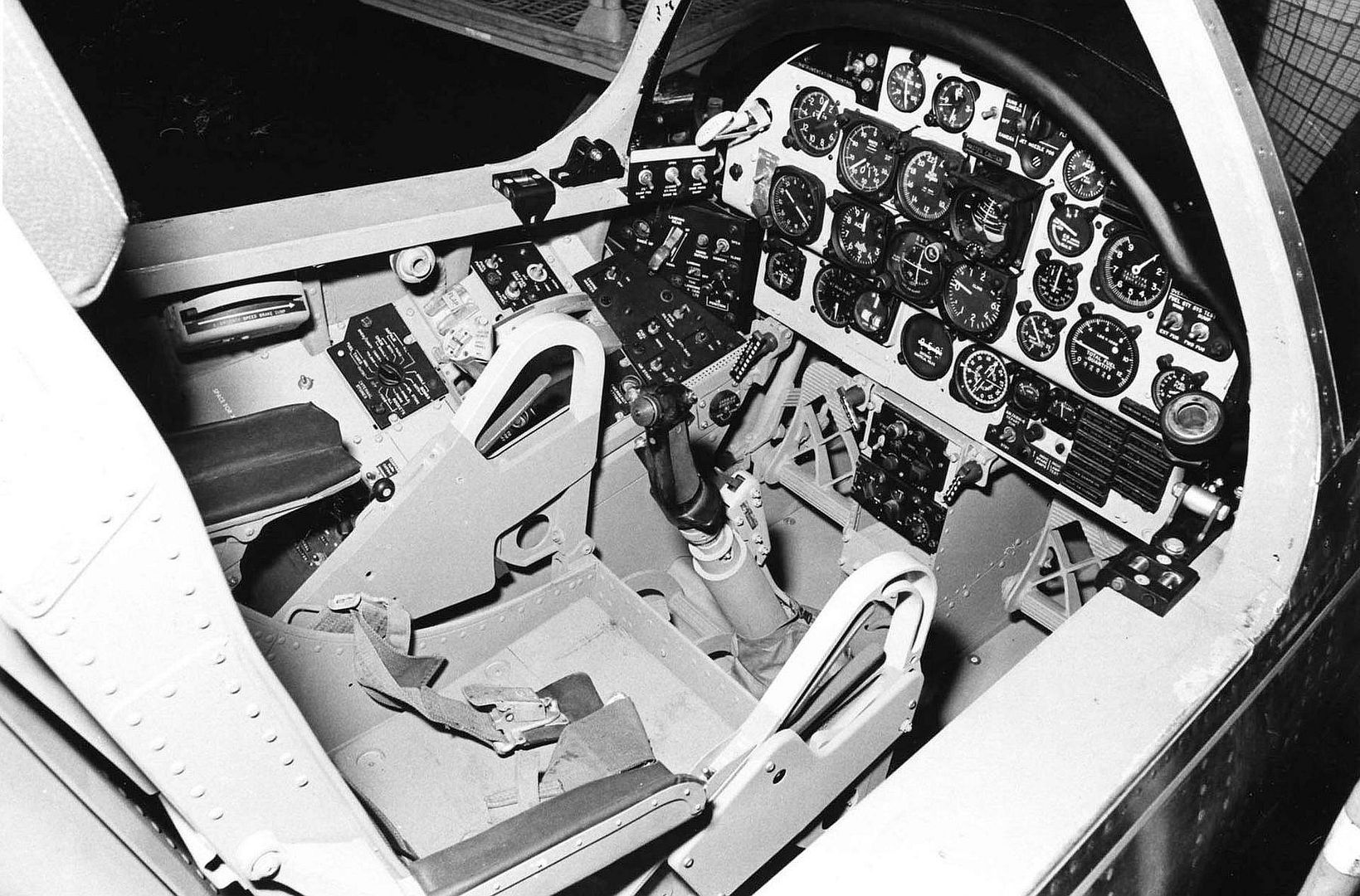

    Because of the unusual location of the air intake, it was necessary for the canopy to open straight up rather than to open in the usual clam shell fashion. In an emergency, the pilot could eject right through the canopy without having to jettison it first.

    On January 1, 1957, the F-107A contract was amended to provide for only three flying examples, plus one static test air frame.

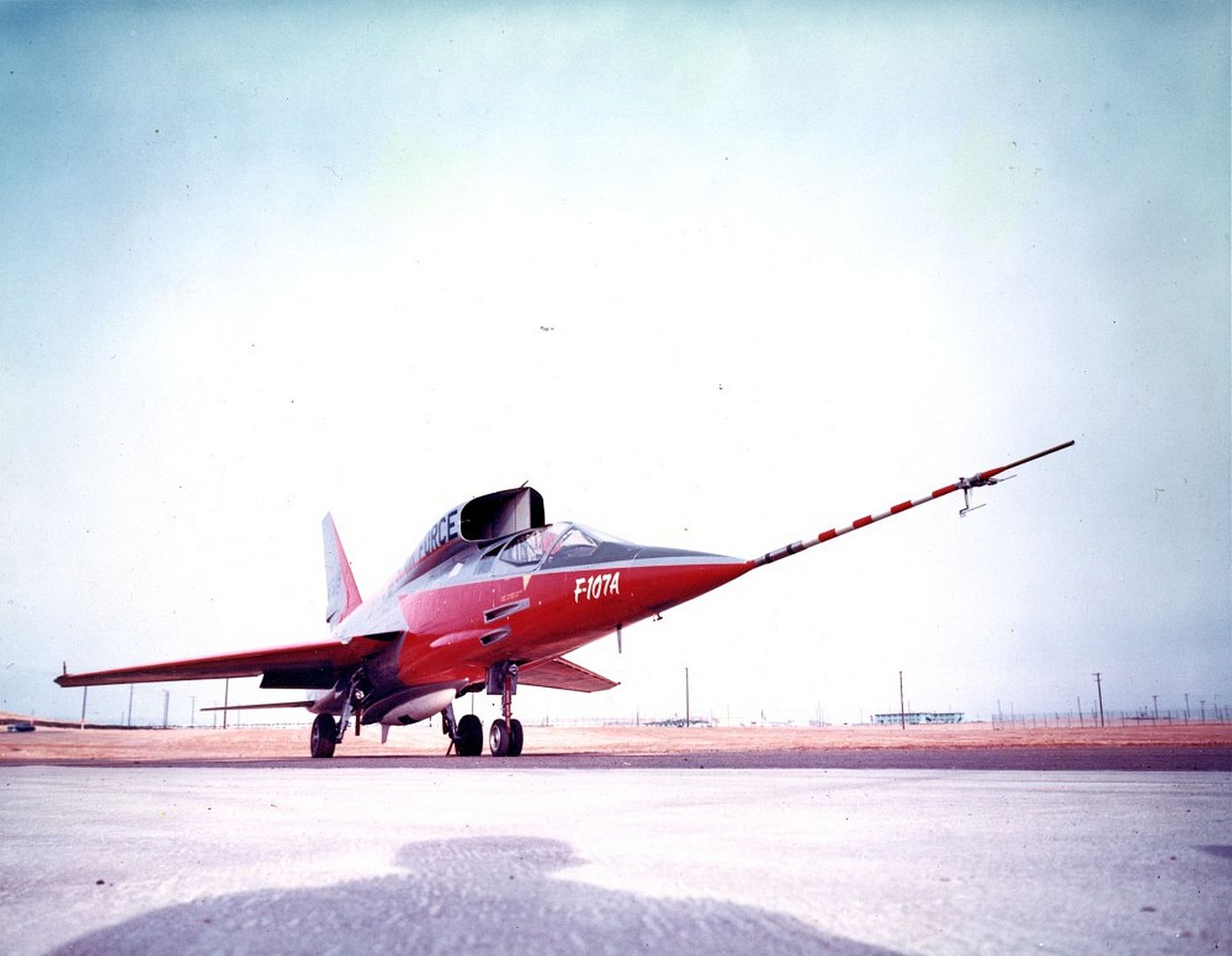

    The first F-107A (serial number 55-5118) took off on its maiden flight on September 10, 1956 at Edwards AFB, with NAA test pilot Bob Baker at the controls. It went supersonic on its first flight, although there was some minor damage upon landing when the drag chute malfunctioned and the aircraft overran the end of the concrete runway and ended up in a ditch. The aircraft was quickly repaired and flew again three days later.

    55-5118 achieved its first Mach 2.0 flight on November 3, 1956.

    55-5119 flew for the first time on November 28. It was equipped with the armament of four 20-mm cannon and was assigned the job of carrying out performance and integrated control system testing, and was to check out the separation characteristics of the centerline store.

    55-5120 flew for the first time on December 10. It was the first F-107 to have the fully-automatic variable area inlet duct. Unfortunately, the variable-geometry duct did not live up to its expectations. In spite of repeated attempts at steady climbs at subsonic or supersonic speeds and even zoom climbs from maximum speed at 35,000 feet, 55-5120 was never able to get above 51,000 feet. This was blamed on problems with the variable-geometry intake duct and with the J75 engine, both of which were relatively new at the time. In addition, there was an annoying "buzz" in the variable air intake at high speeds, which was traced to instability of the airflow at the inlet.

    55-5118 was assigned the task of exploring the zoom climb characteristics. Test pilot Al White was able to start off at 39,000 feet at Mach 2.1, and was able to reach a maximum height of 69,000 feet.

    55-5119 was assigned the job of evaluating the weapons delivery system. It was the only one of the three F-107 prototypes to be fitted with the four 20-mm M39 cannon. Wind tunnel tests had suggested that there might be problems with the release of weapons from the streamlined centerline container at supersonic speeds. After some initial problems, on February 25, 1957, test pilot Al White finally successfully delivered the weapon store while flying at Mach 1.87 over the Naval test range at China Lake.

    The F-107A found itself in direct competition with the Republic F-105 Thunderchief for production orders. In March 1957, the USAF decided to go with the F-105, and the F-107 was relegated to aerodynamic testing duties. The first and third F-107As were turned over to NACA for high speed flight testing work.

    The first F-107A (55-5118) reached NACA at Dryden on November 6, 1957. It was given the NACA number of 207. However, it was so mechanically unreliable that it was grounded by NACA after only four flights and was scavenged for spare parts to keep the other one flying.

    The third F-107A (55-5120) reached NACA at Dryden on February 10, 1958. The flight testing of the variable geometry intake of the aircraft was cut short because of its mechanical problems. Eventually, NACA gave up on the F-107A's variable-geometry inlet altogether and it was bolted fixed in position, limiting top speed to Mach 1.2. This aircraft also experienced buffeting problems at high angles of attack. 55-5120 completed some forty test flights for NACA/NASA during 1958-59. On the basis of F-107 flight testing, North American refined the design of the side-stick planned for the X-15. 55-5120 was damaged on September 1, 1959 when test pilot Scott Crossfield was forced to abort a takeoff because of control problems. Both tires blew and the left brake burst into flames. Crossfield was uninjured, but the resulting damage to the F-107A was deemed to be too severe for economical repair, and NASA decided to scrap the aircraft. It was cut up and its fuselage shipped to Sheppard AFB in Texas where it was used for as a fire fighting training aid.

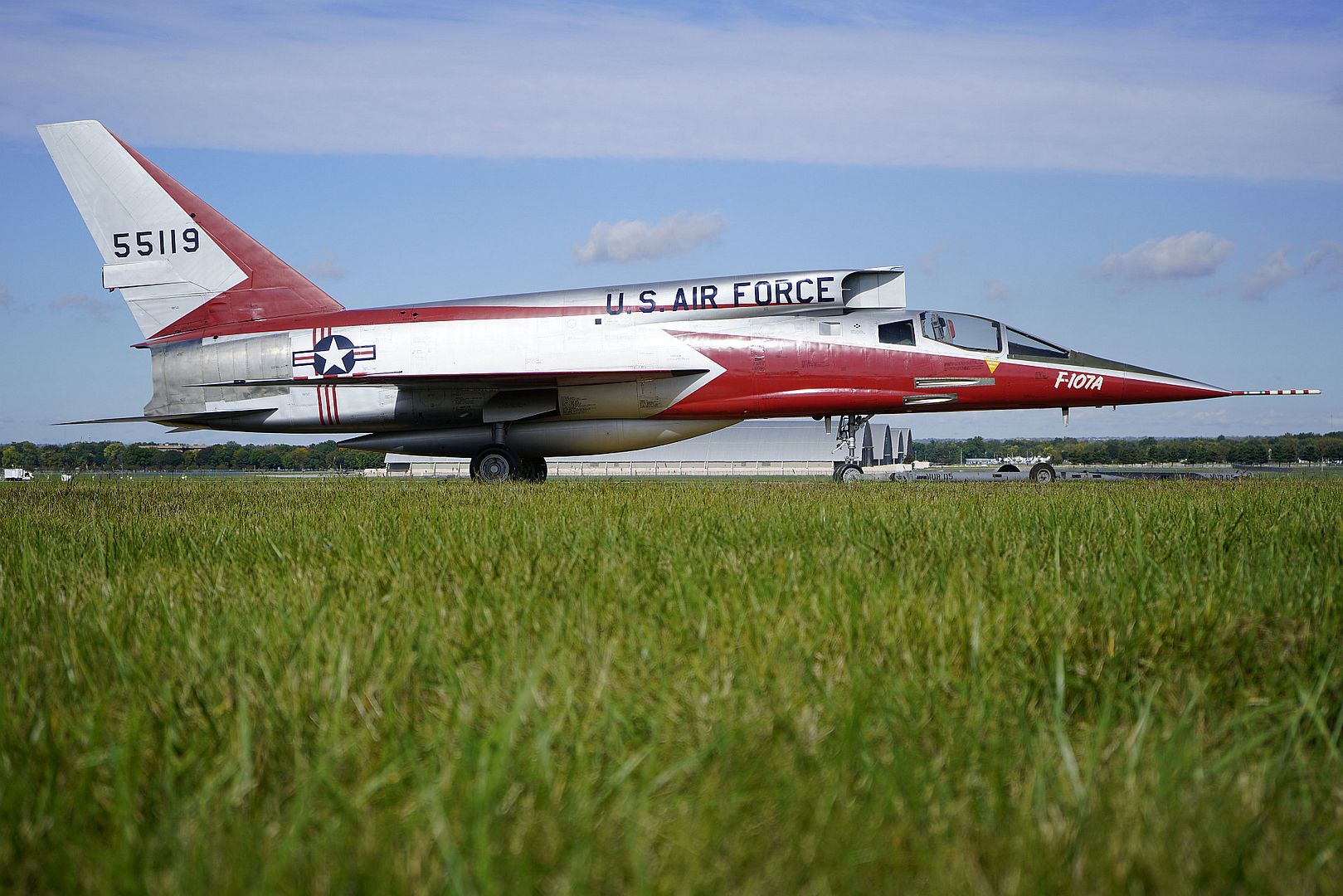

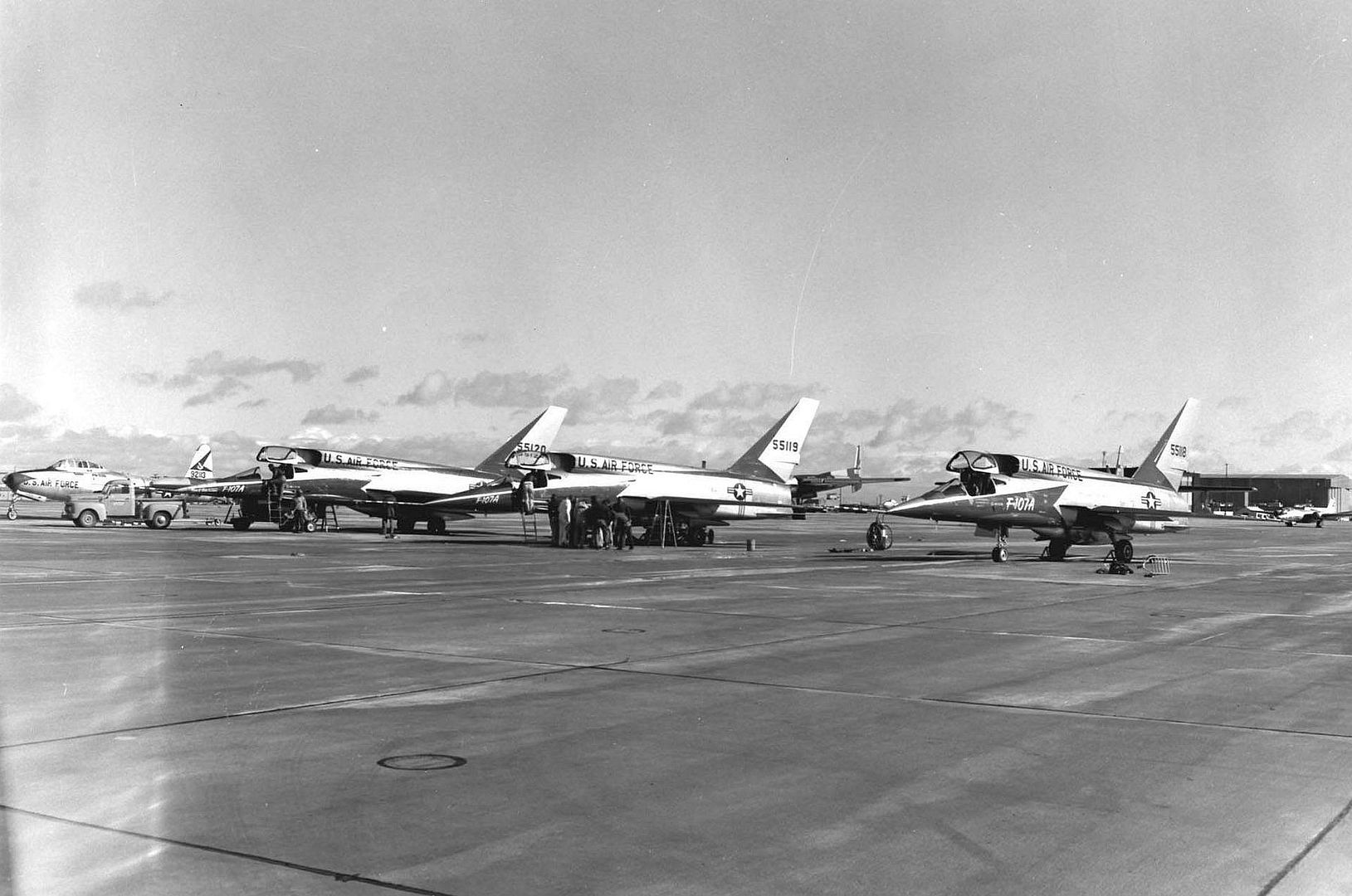

    The other two F-107As still survive. After being retired by NASA, F-107A number 55-5118 was turned over to the Pima Air Museum in Tucson, Arizona, where it is now on display. F107A number 55-5119 is in the Air Force Museum at Wright-Patterson AFB in Ohio.

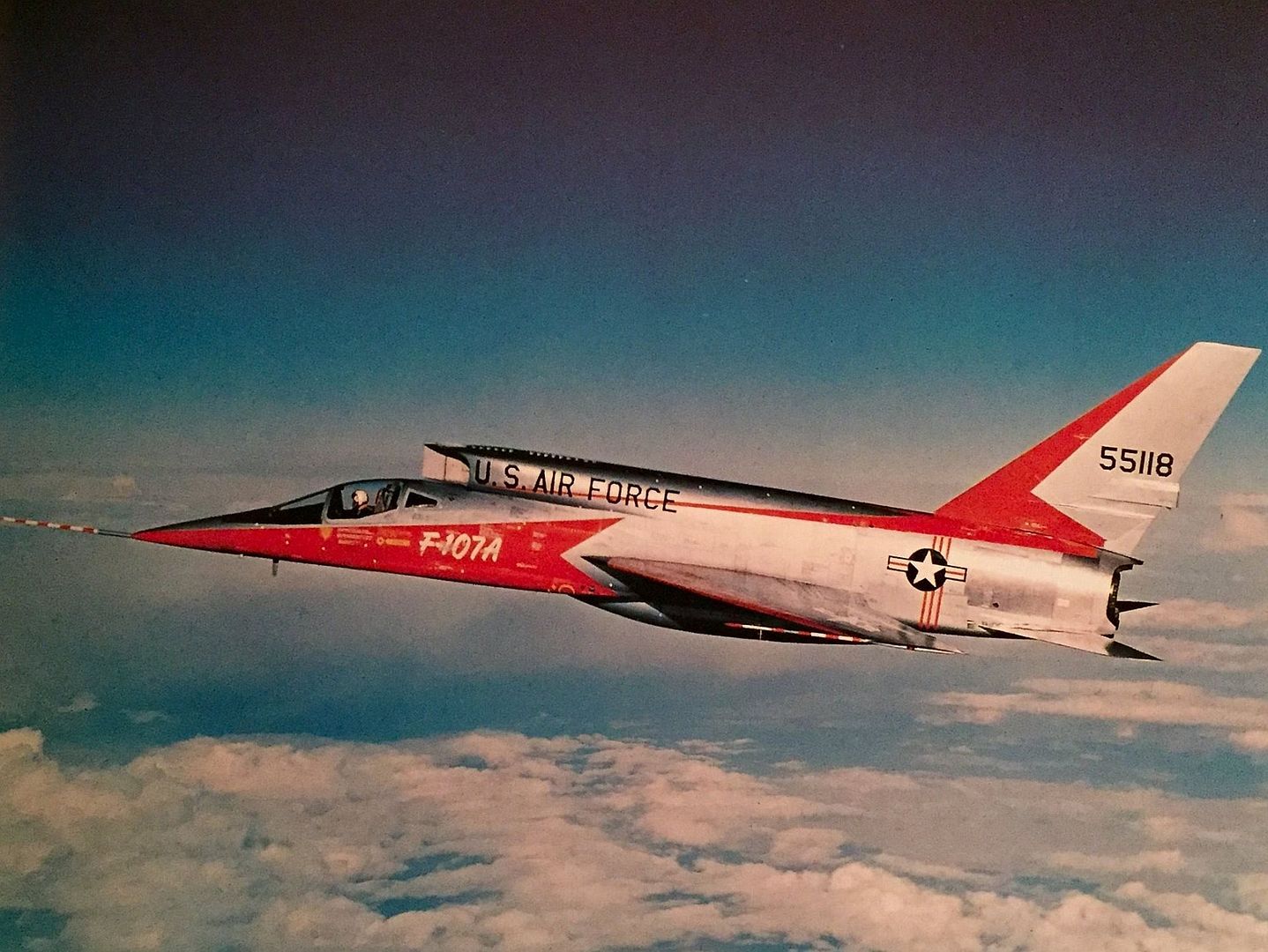

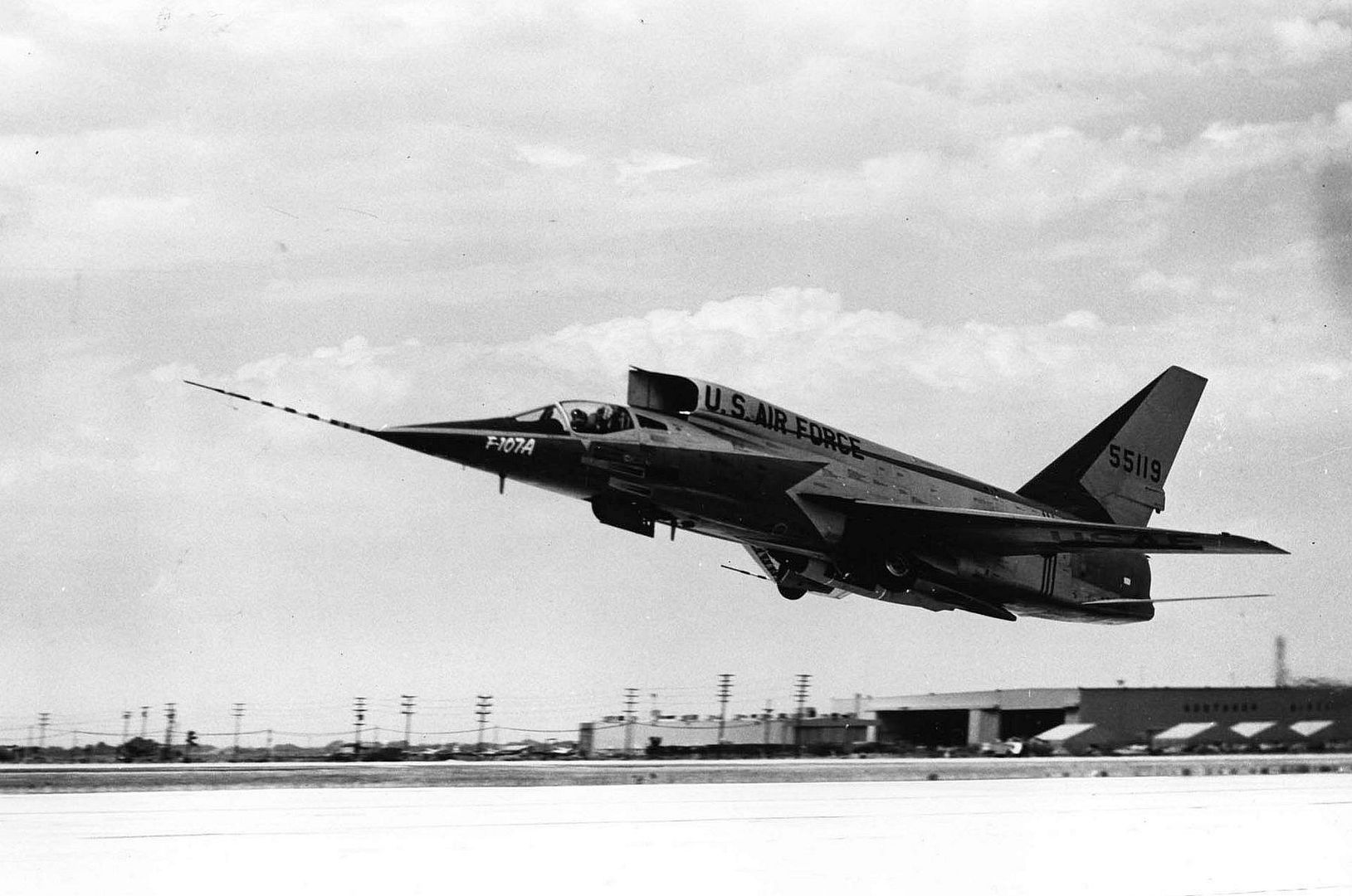

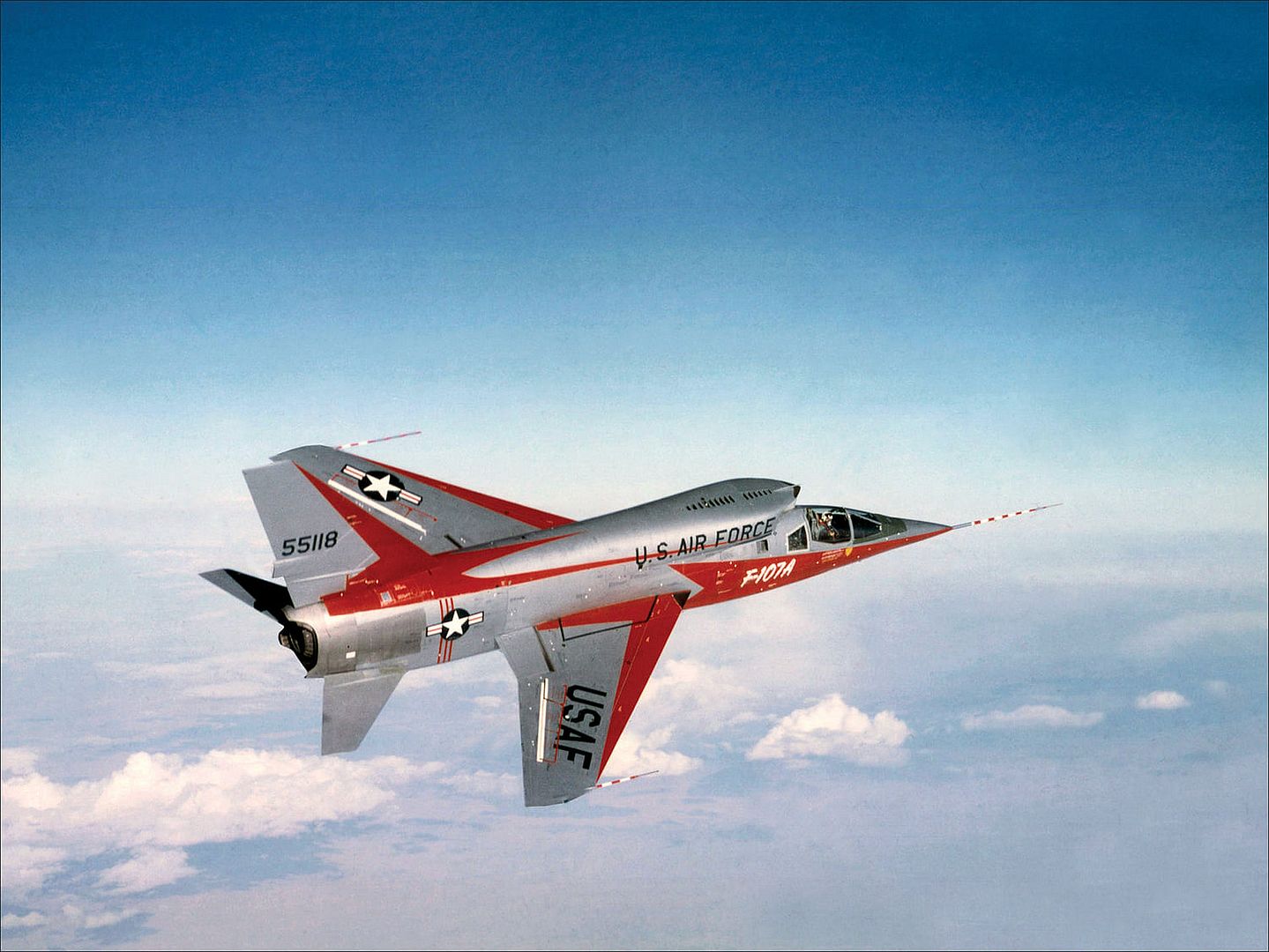

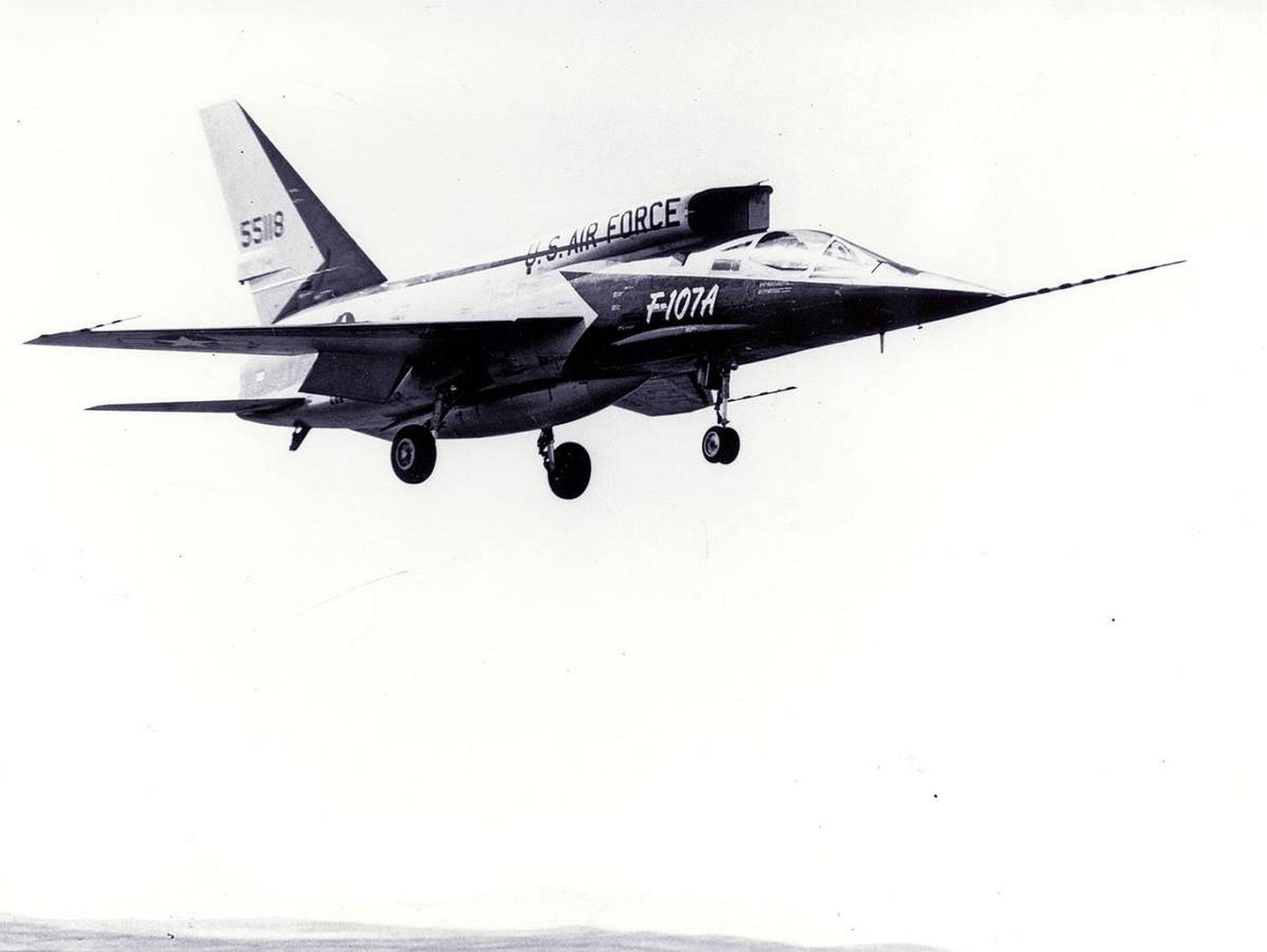

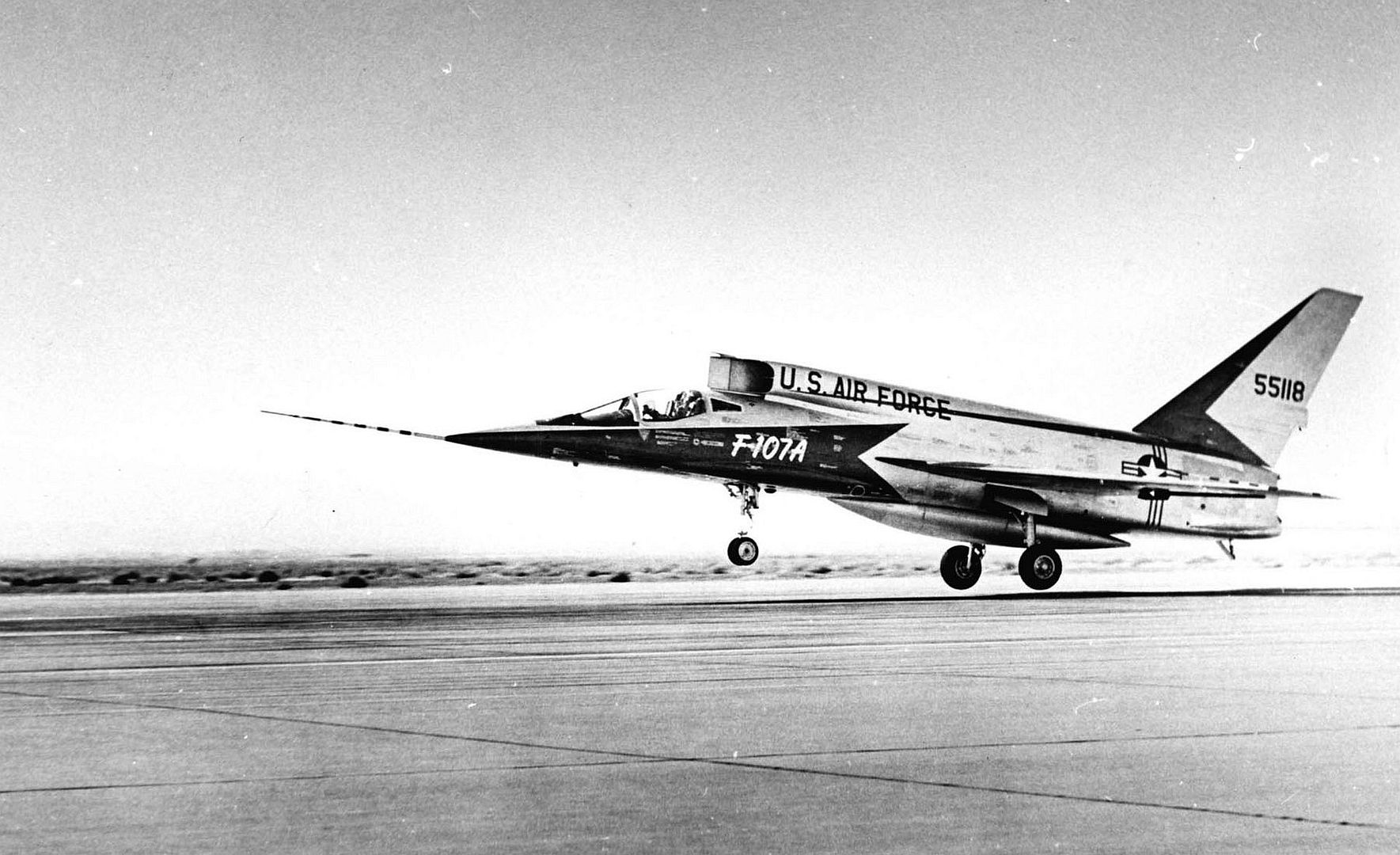

    Below 55-5118
     9 1958
    107A 118 Later NACA 207 To NASA FRC

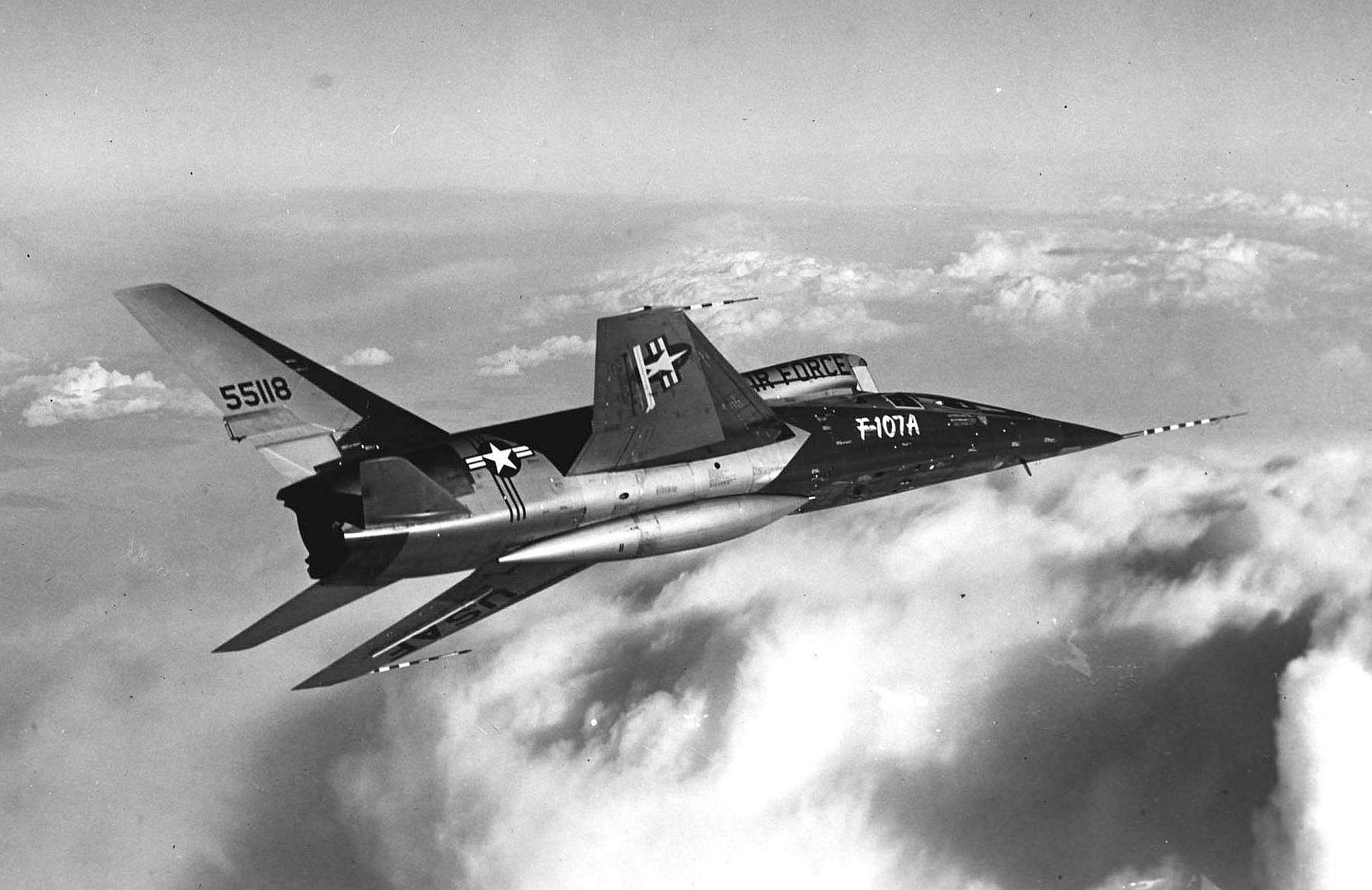

    F 107A 55 5118

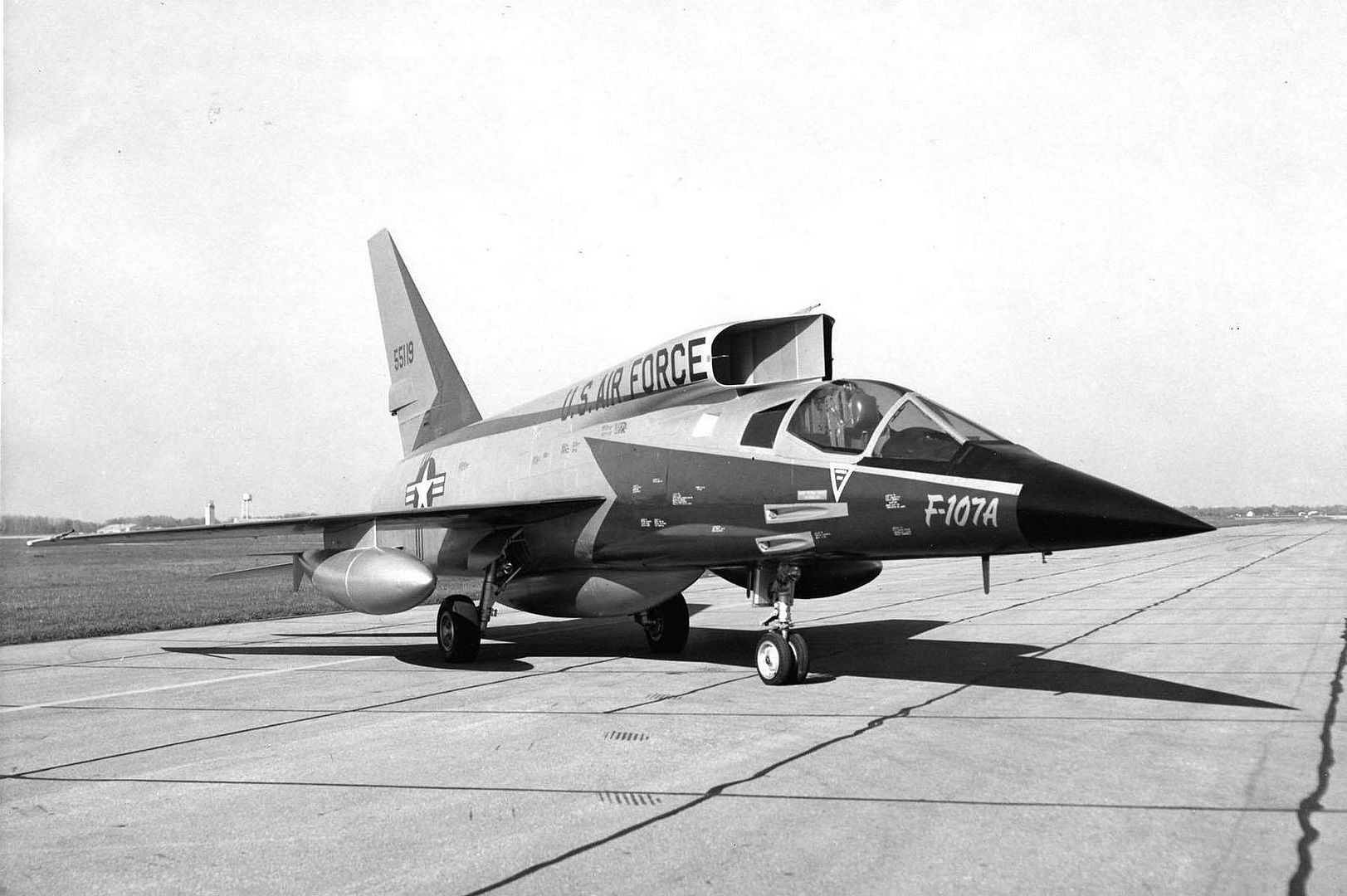

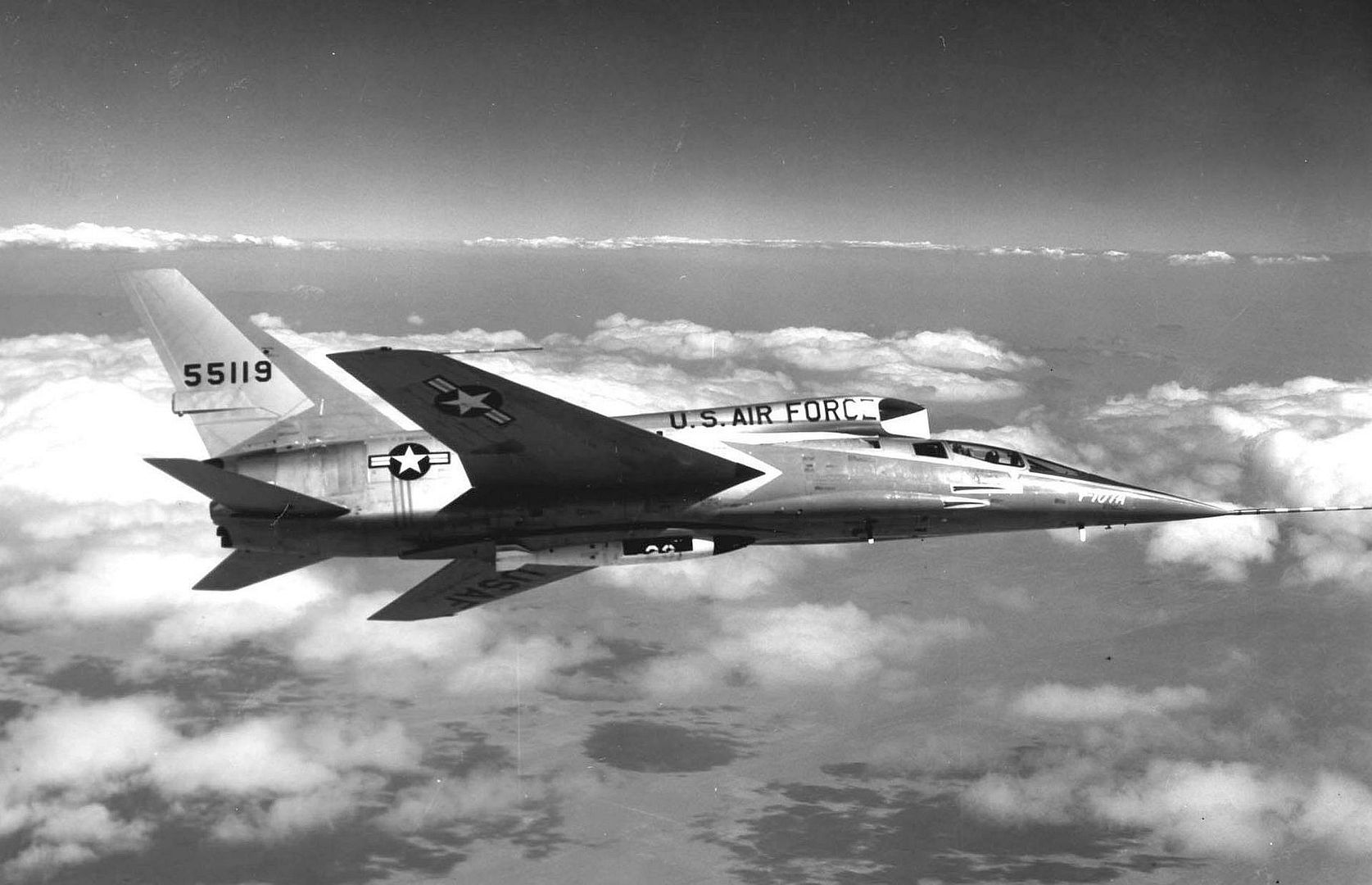

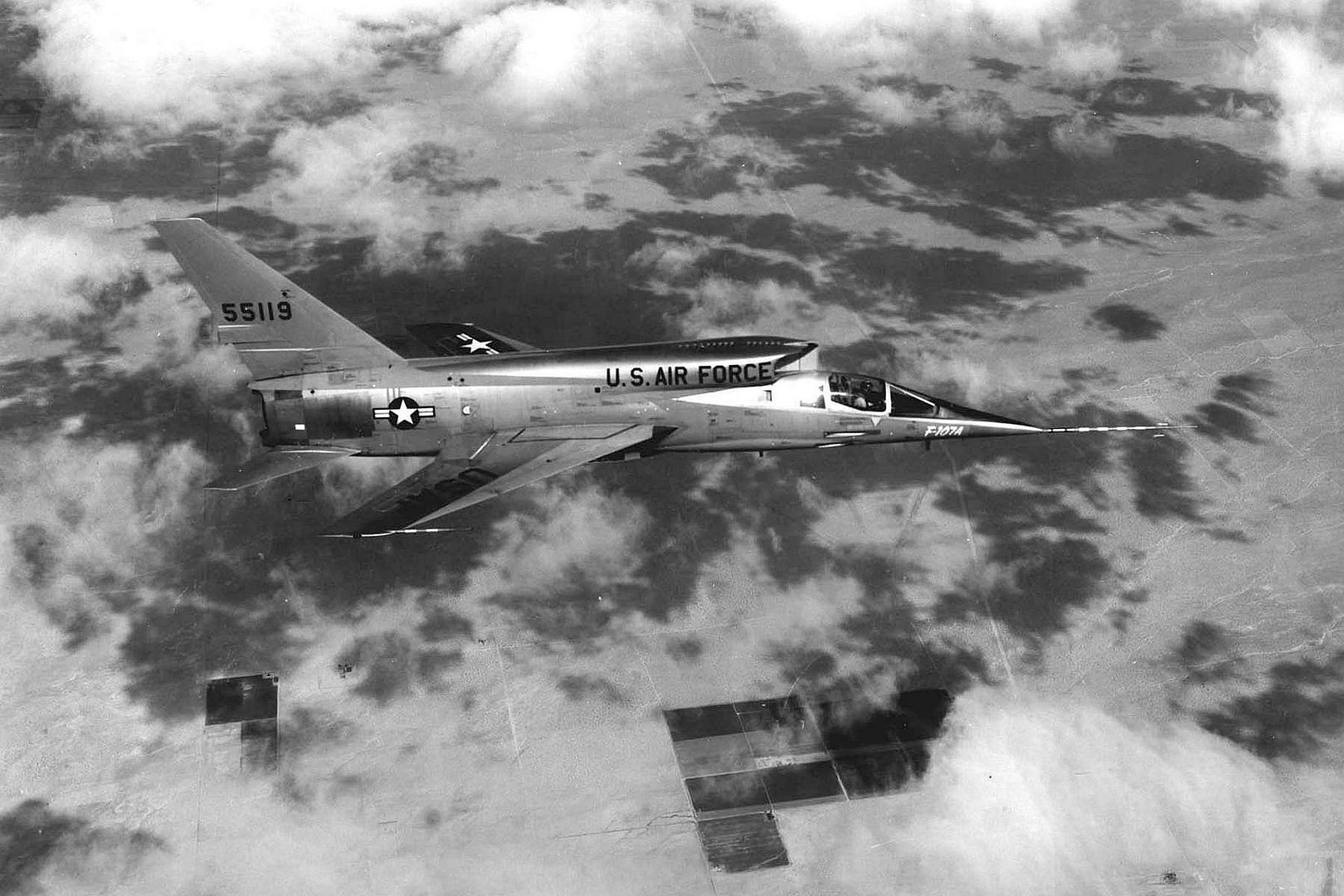

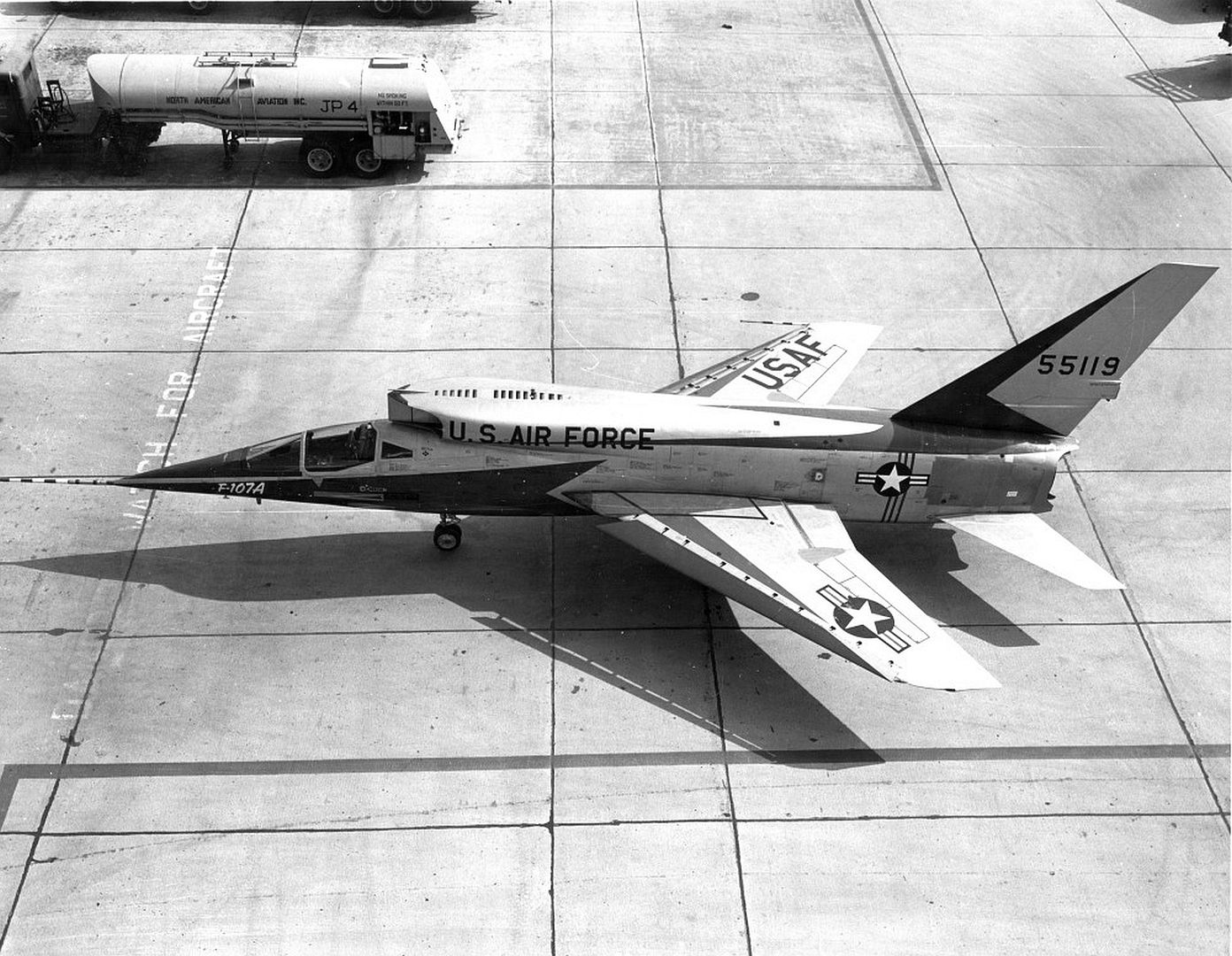

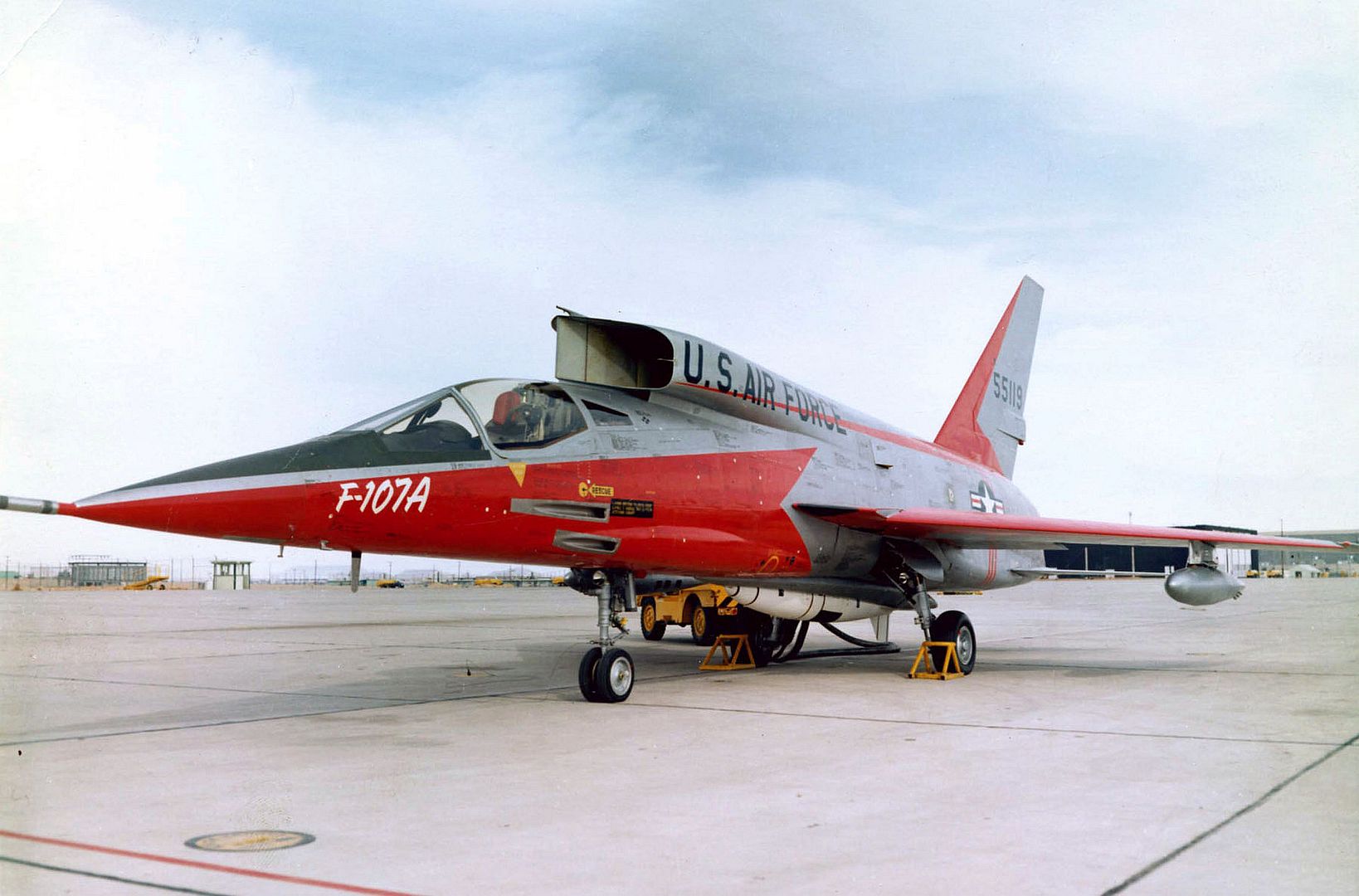

    Below 55-5119
    Below 55-5120
     7 1959
    107A Tn 55120

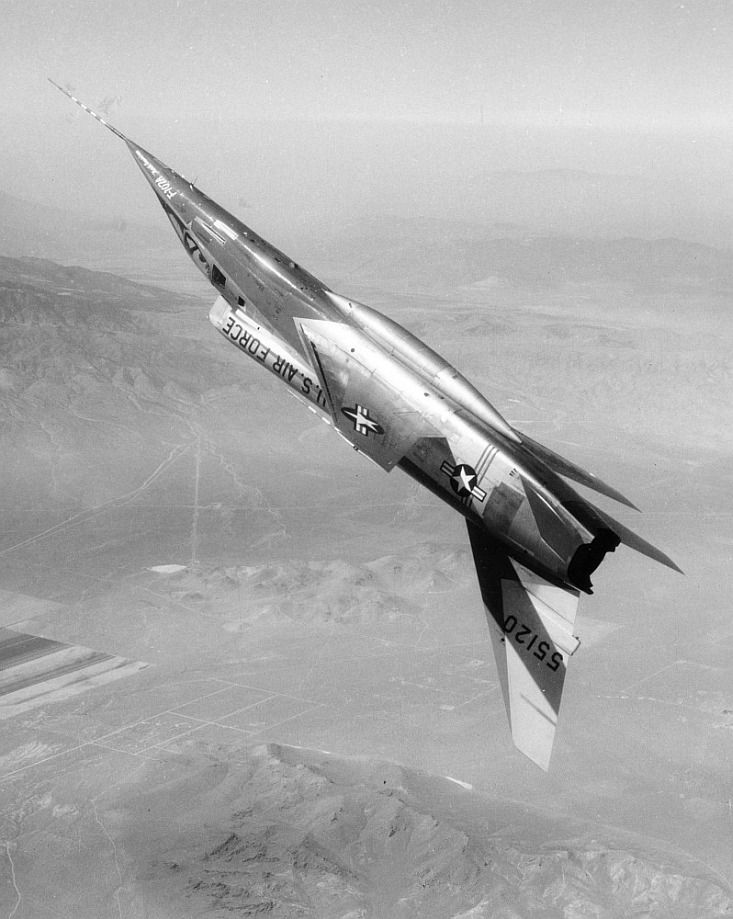

    107A Over Edwards

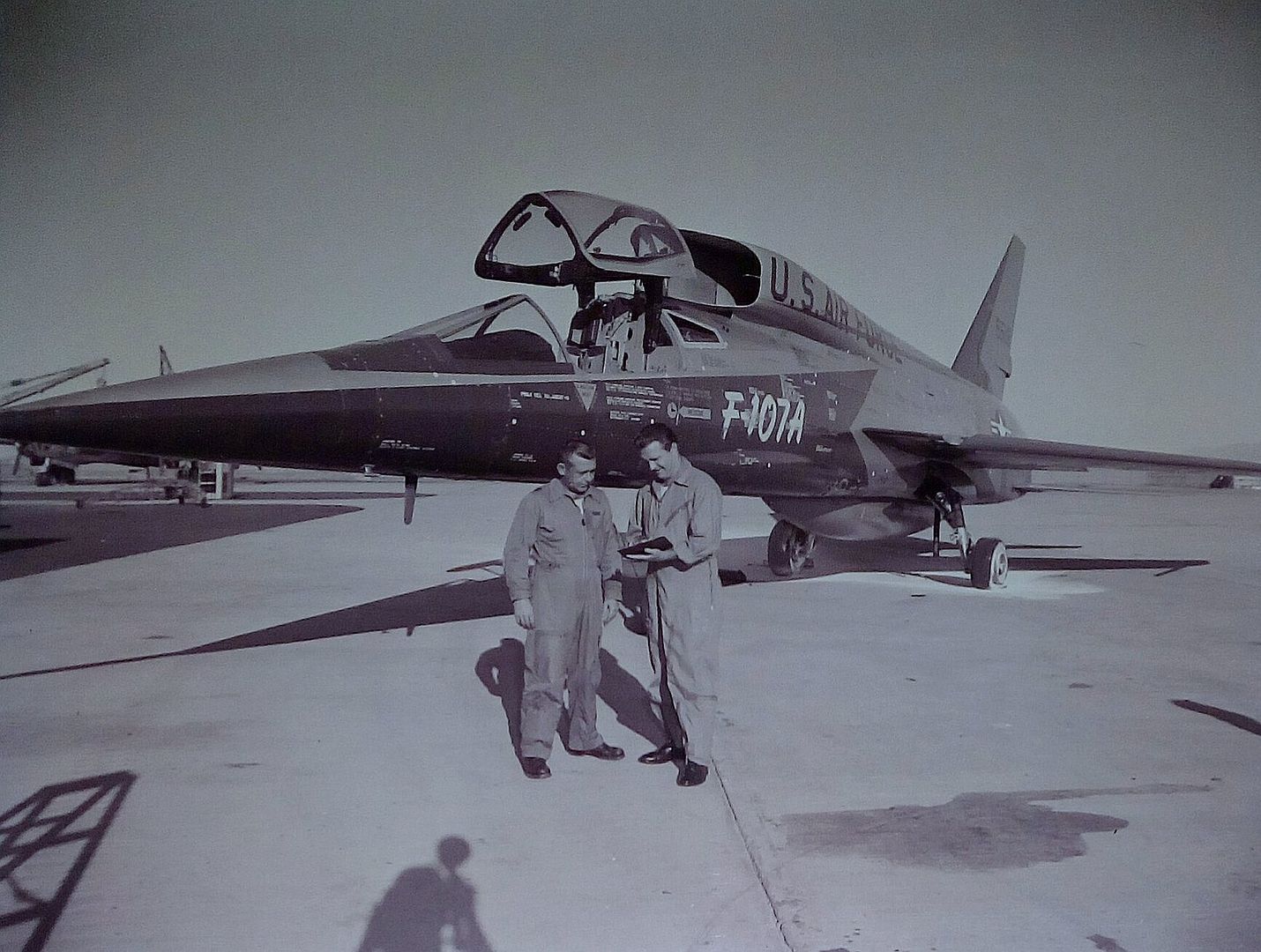

    Break Fire

    Specifications (F-107A)
    General characteristics
    Crew: one
    Length: 61 ft 10 in (18.85 m)
    Wingspan: 36 ft 7 in (11.15 m)
    Height: 19 ft 8 in (5.89 m)
    Wing area: 376 sq ft (35 m2)
    Empty weight: 22,696 lb (10,295 kg)
    Gross weight: 39,755 lb (18,033 kg)
    Max takeoff weight: 41,537 lb (18,841 kg)
    Powerplant: 1 × Pratt & Whitney YJ75-P-9 turbojet, 24,500 lbf (109 kN) thrust
    Maximum speed: 1,295 mph (2,084 km/h, 1,125 kn)
    Maximum speed: Mach 2
    Range: 2,428 mi (3,885 km, 2,109 nmi)
    Service ceiling: 53,200 ft (16,220 m)
    Rate of climb: 39,900 ft/min (203 m/s)
    Wing loading: 106 lb/sq ft (516 kg/m2)
    Thrust/weight: 0.62
    Guns: 4x 20mm Pontiac M39 cannon OR 1x 20mm, 6 barrel M61 Vulcan autocannon
    Bombs: 10,000 lb (4,500 kg) on 5 hardpoints; 2 under each wing, 1 semi-recessed ordnance station under fuselage centerline. Wide variety of ordnance, including tactical nuclear weapons
